Product Overview

The dual-post laboratory faucet—also referred to internationally as the double lab faucet, two-outlet laboratory water tap, dual water faucet for laboratory, or simply dual faucet for lab—provides two independent water outlets from a single base, making it ideal for workstations where multiple users or simultaneous applications require water access. Unlike single-post faucets, dual-post designs offer greater flexibility and efficiency in busy laboratory environments.

EduSupports presents our comprehensive collection of dual-post laboratory faucets, manufactured from solid brass with high-gloss epoxy powder coating (grey or white) or chrome plating that resists most chemicals, UV fading, and heat. Each faucet features a ceramic headwork cartridge rated for 500,000 life cycles at maximum 10 Bar water static pressure. The ergonomic PP knobs provide comfortable operation, while various spout designs—including gooseneck, angle, flat double, T-type, and wall-mounted—meet different laboratory requirements.

Whether you need a standard dual-post model for a school laboratory or a wall-mounted version for space-constrained facilities, EduSupports has the right dual-post faucet for your application.

Key Features

Dual-post design – two independent water outlets from a single base; ideal for multi-user workstations
Solid brass body – durable, corrosion-resistant, long service life
High-gloss epoxy powder coating or chrome plating – resistant to chemicals, UV fading, and heat
Ceramic headwork cartridge – 90° turn operation; 500,000 life cycles; maximum 10 Bar water static pressure
Ergonomic PP handles (knobs) – comfortable grip; chemical-resistant; one per outlet
Multiple spout designs – gooseneck, angle , flat double , T-type, wall-mounted
Multiple nozzle types – pointed nozzle or square spout
Detachable brass serrated nozzles – accept splash-controlled water filters or laboratory tubing
Wall-mounted option available – space-saving design for limited benchtop space
Versatile applications – hospitals, schools, industrial labs, research institutes, factories

Why Choose the Dual-Post Laboratory Faucet Design?

The dual-post laboratory faucet offers several distinct advantages over single-post faucets for scientific environments.

First, its two independent outlets allow multiple users or simultaneous applications from a single sink installation—a significant efficiency gain in busy labs.

Second, the ceramic cartridge provides exceptional durability. Rated for 500,000 life cycles, these faucets withstand the heavy daily use typical in educational and research settings.

Third, the variety of spout designs allows you to choose the right configuration: gooseneck for tall glassware, angle spout for space-limited areas, flat double for general use, T-type for specialized applications, and wall-mounted for fume hoods.

Fourth, the epoxy powder coating or chrome plating resists acids, alkalis, and organic solvents—common causes of faucet failure in labs.

Fifth, the detachable serrated nozzles accept both splash-controlled water filters and standard laboratory tubing for each outlet independently.

Spout Type	Nozzle Type	Best For
Gooseneck	Pointed or square	Tall beakers, filling large vessels
Angle	Pointed or square	Space-limited benchtops, fume hoods
Flat double	Pointed or square	General lab use, dual outlets
T-type	Pointed or square	Specialized applications
Wall-mounted	Pointed or square	Space-constrained labs, sink areas

Specifications – Find Your Perfect Model

SKU	Spout Type	Nozzle Type	Color/Finish	Feature

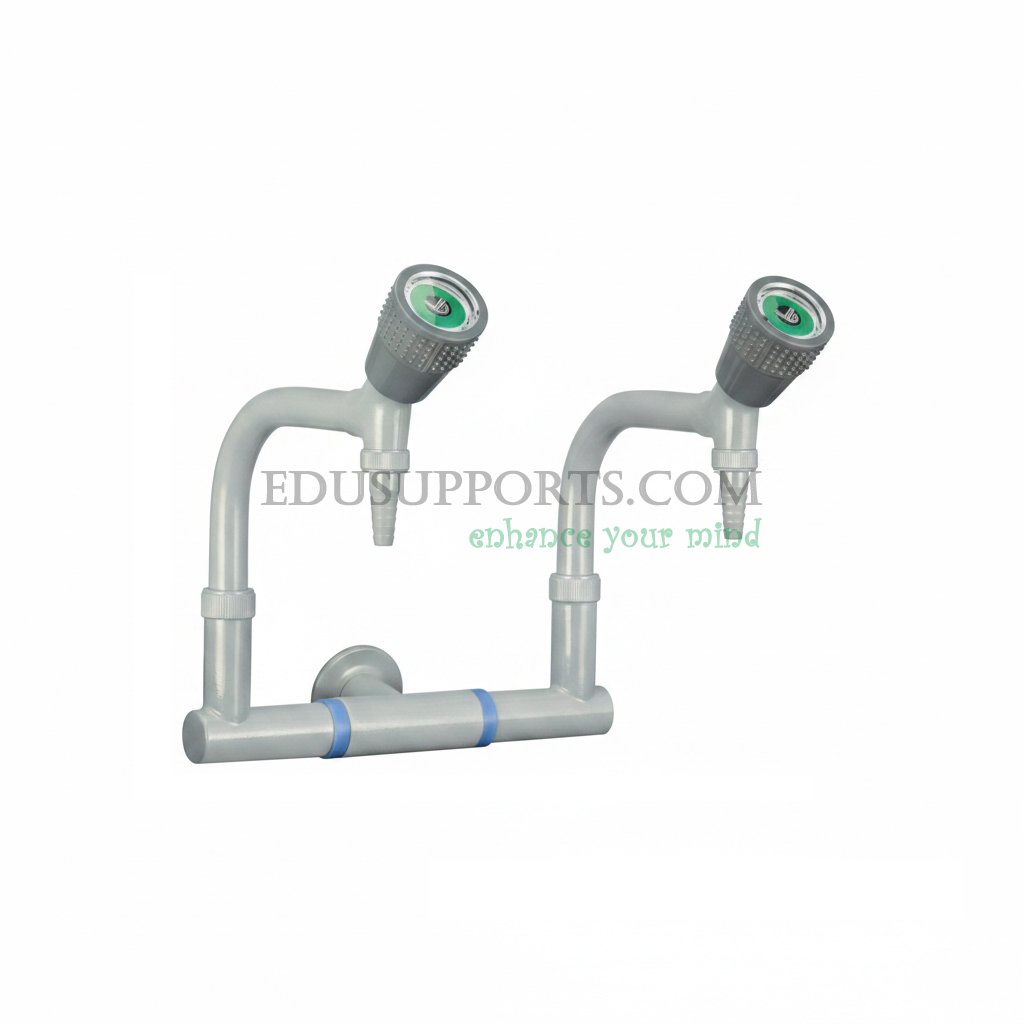

0510010027	Double gooseneck	Pointed	Grey epoxy	320mm model

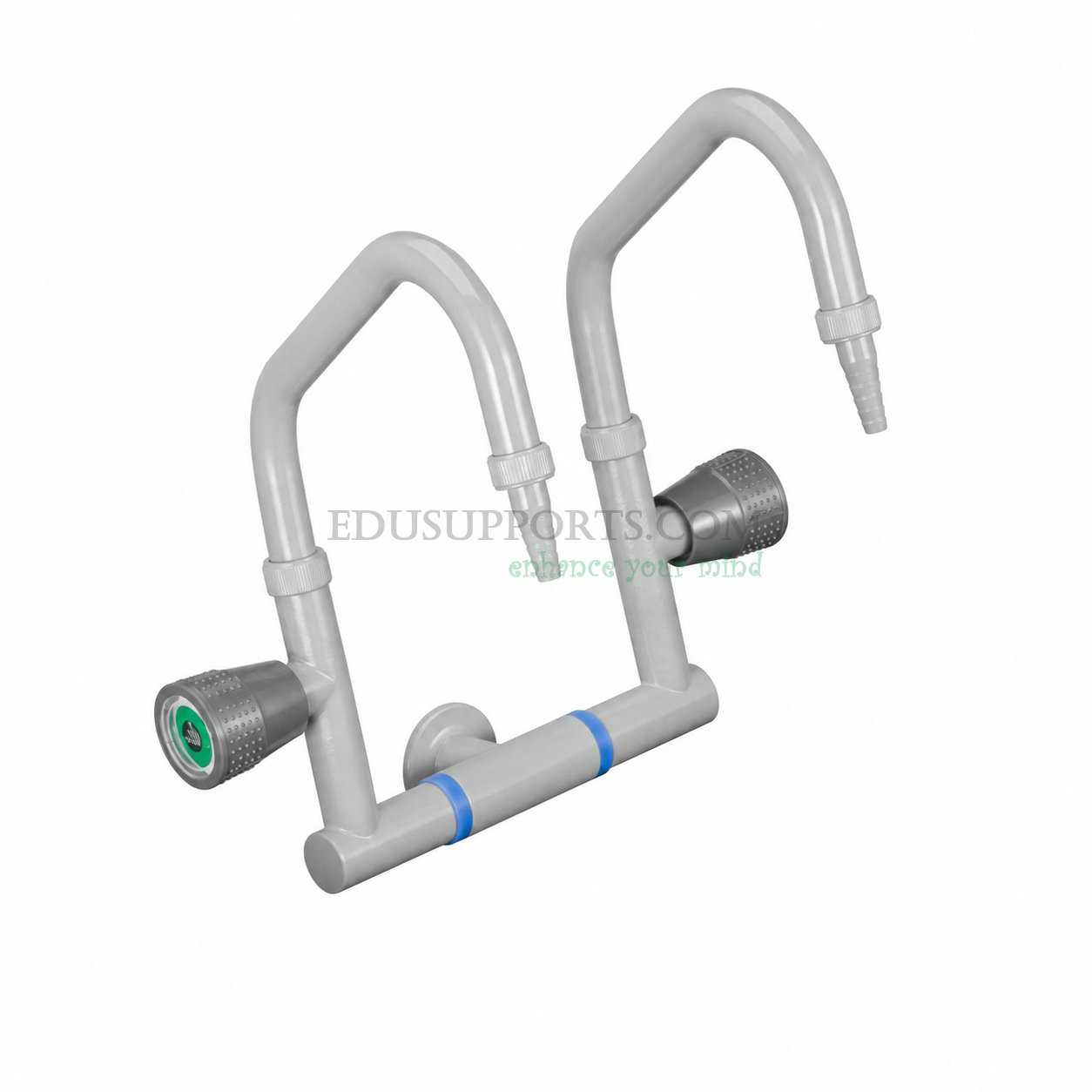

0510010028	Double gooseneck	Pointed	Grey epoxy	320mm variant

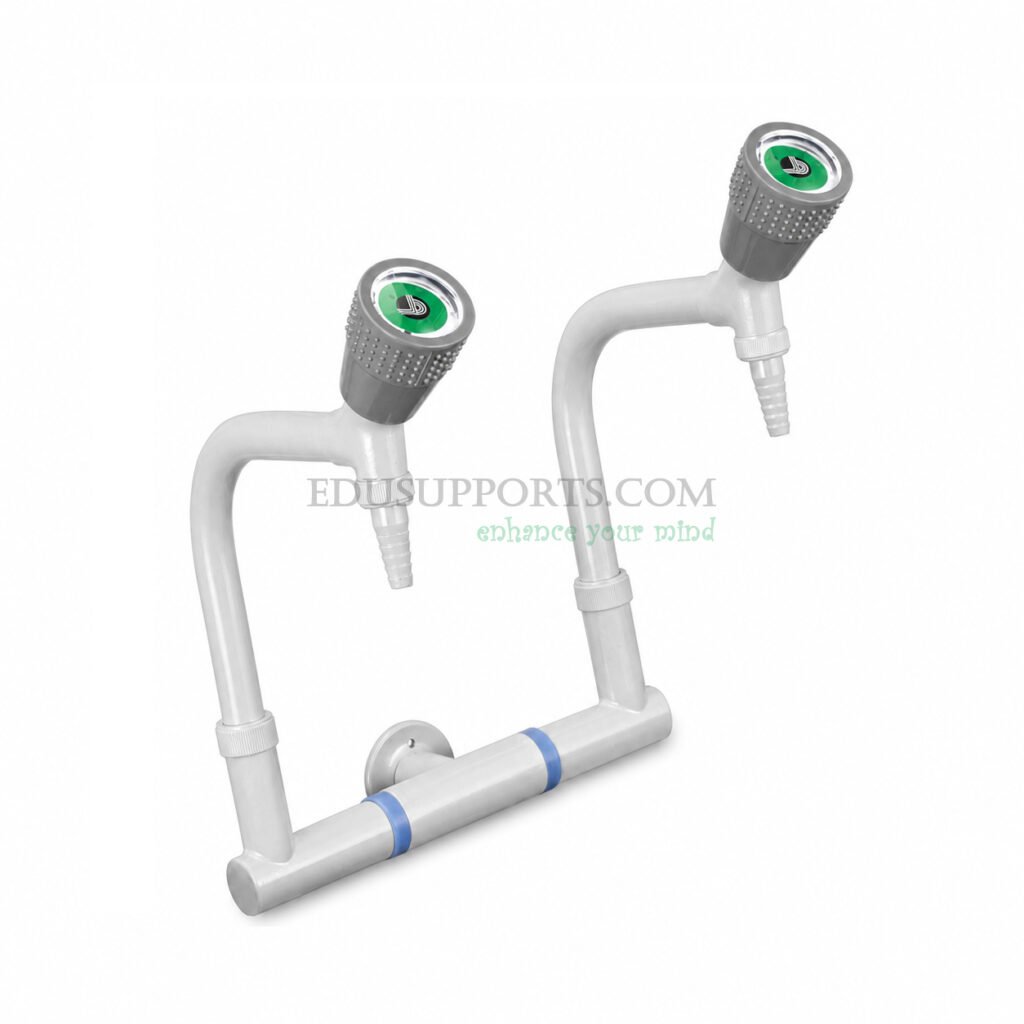

0510010029	Double gooseneck	Pointed	Grey epoxy	340mm model

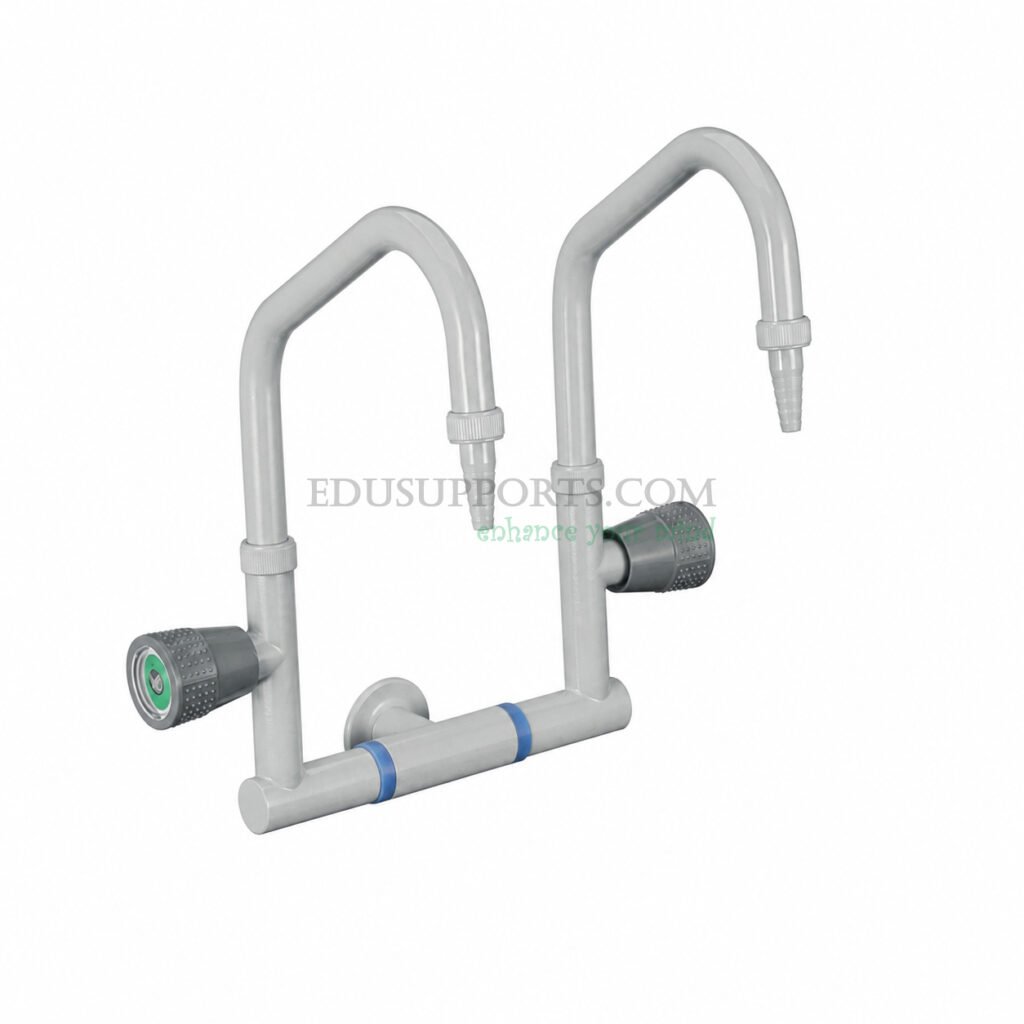

0510010030	Double gooseneck	Pointed	Grey epoxy	340mm variant

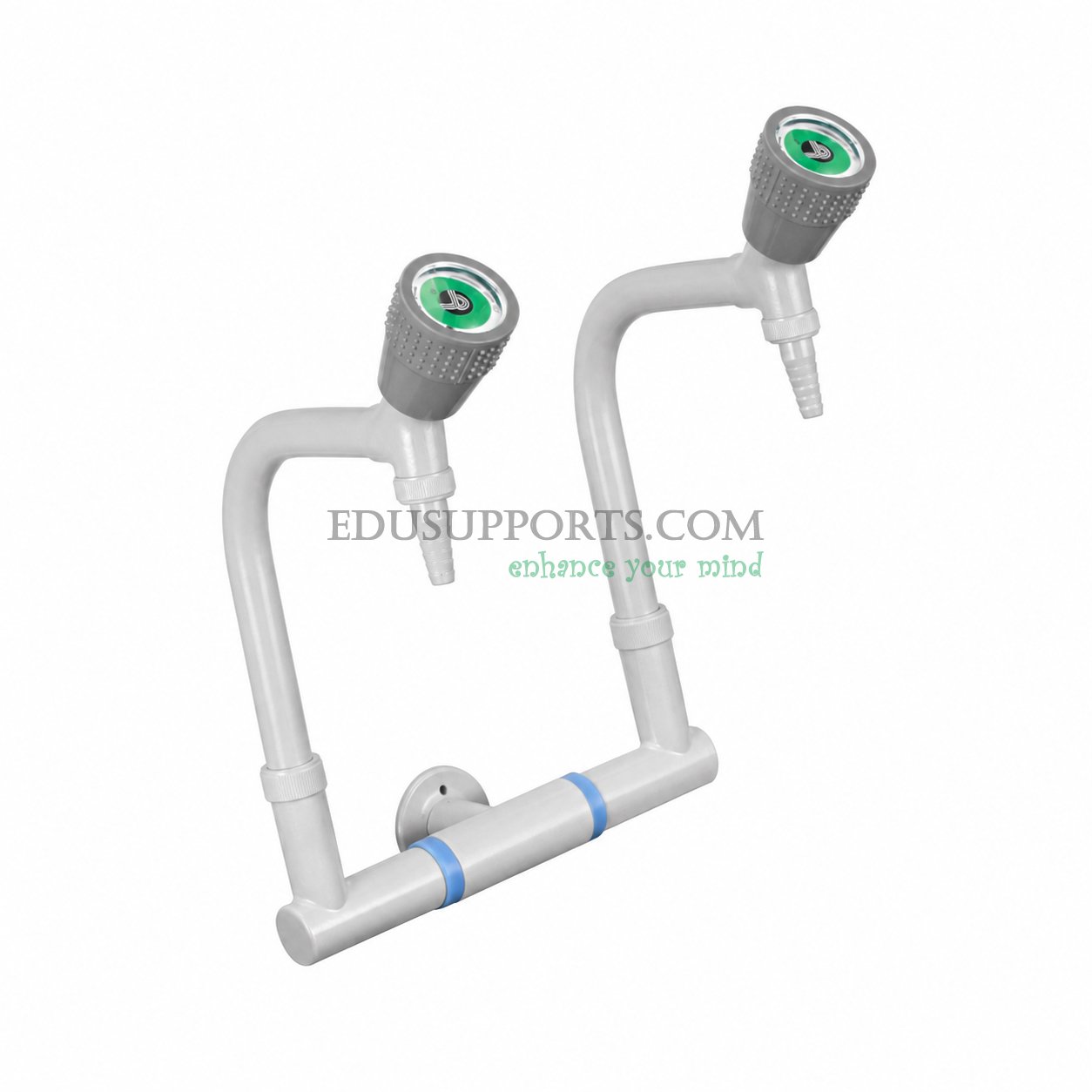

0510010031	Double gooseneck	Pointed	Grey epoxy	360mm model

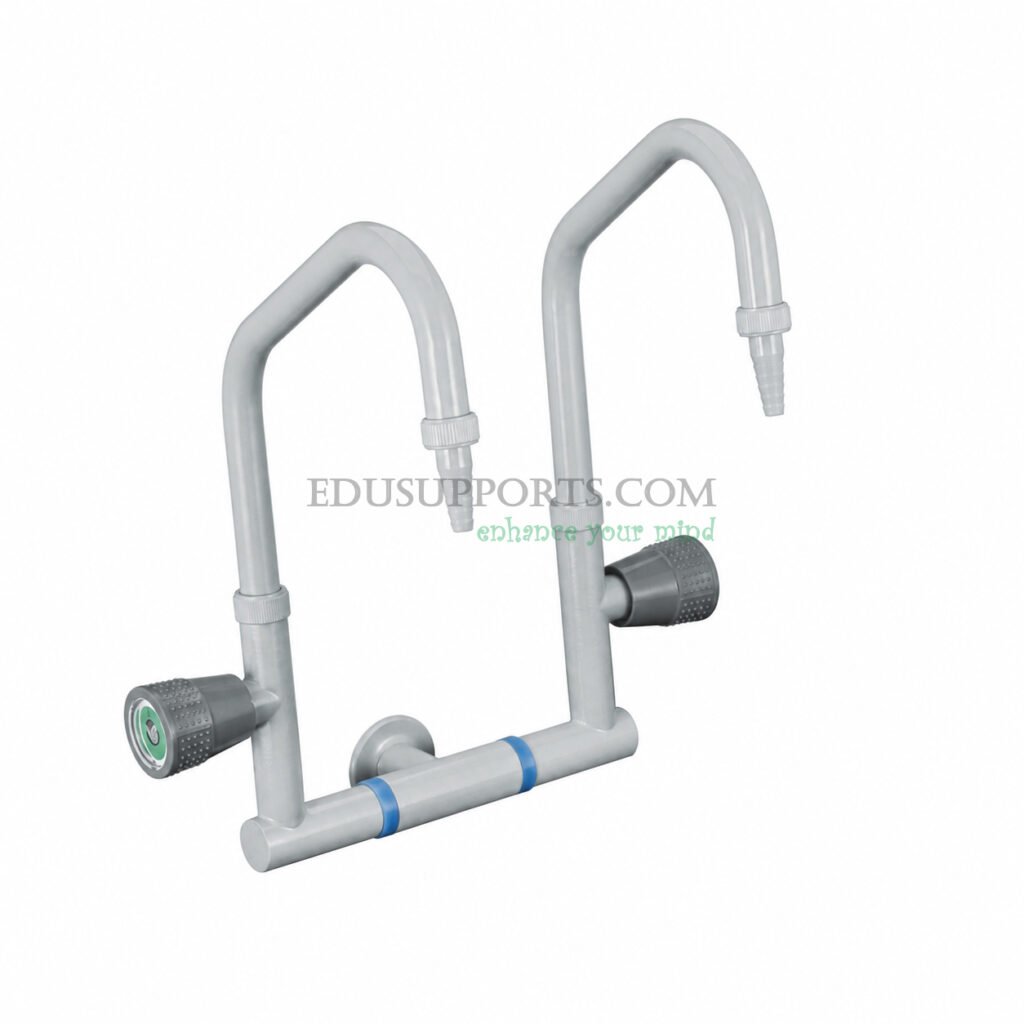

0510010032	Double gooseneck	Pointed	Grey epoxy	360mm variant

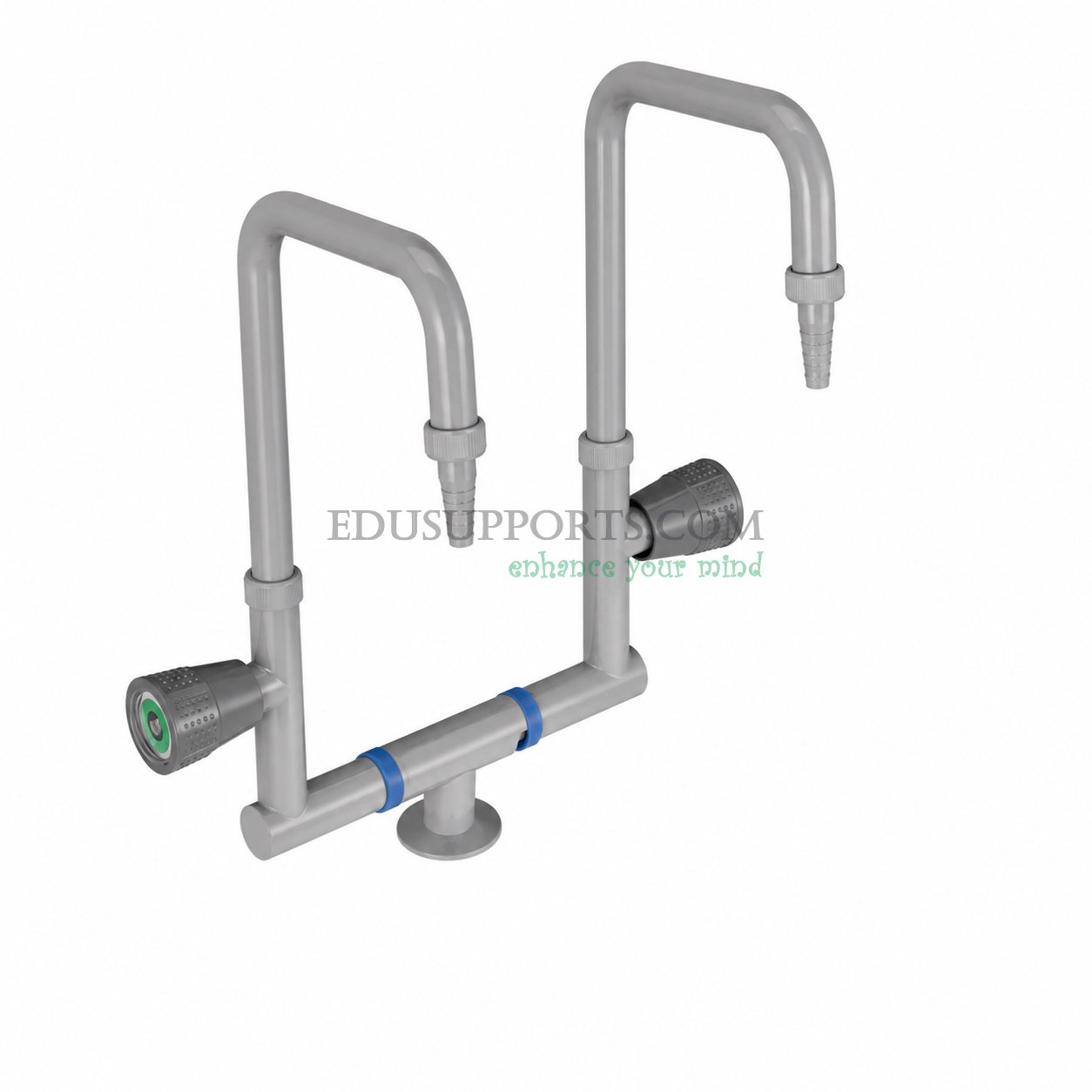

0510010033	Double gooseneck vertical	Pointed	Grey epoxy	Vertical design

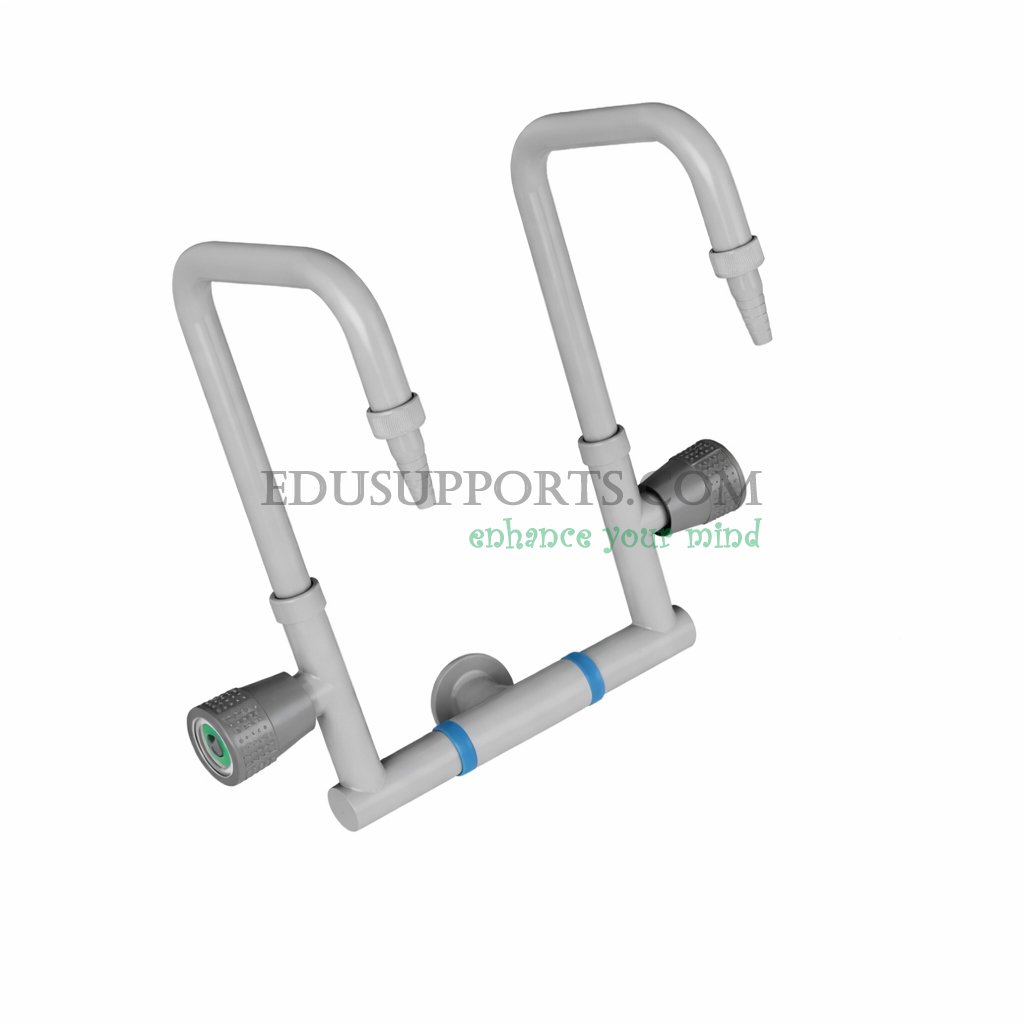

0510010034	Double gooseneck	Pointed	Grey epoxy	360mm standard

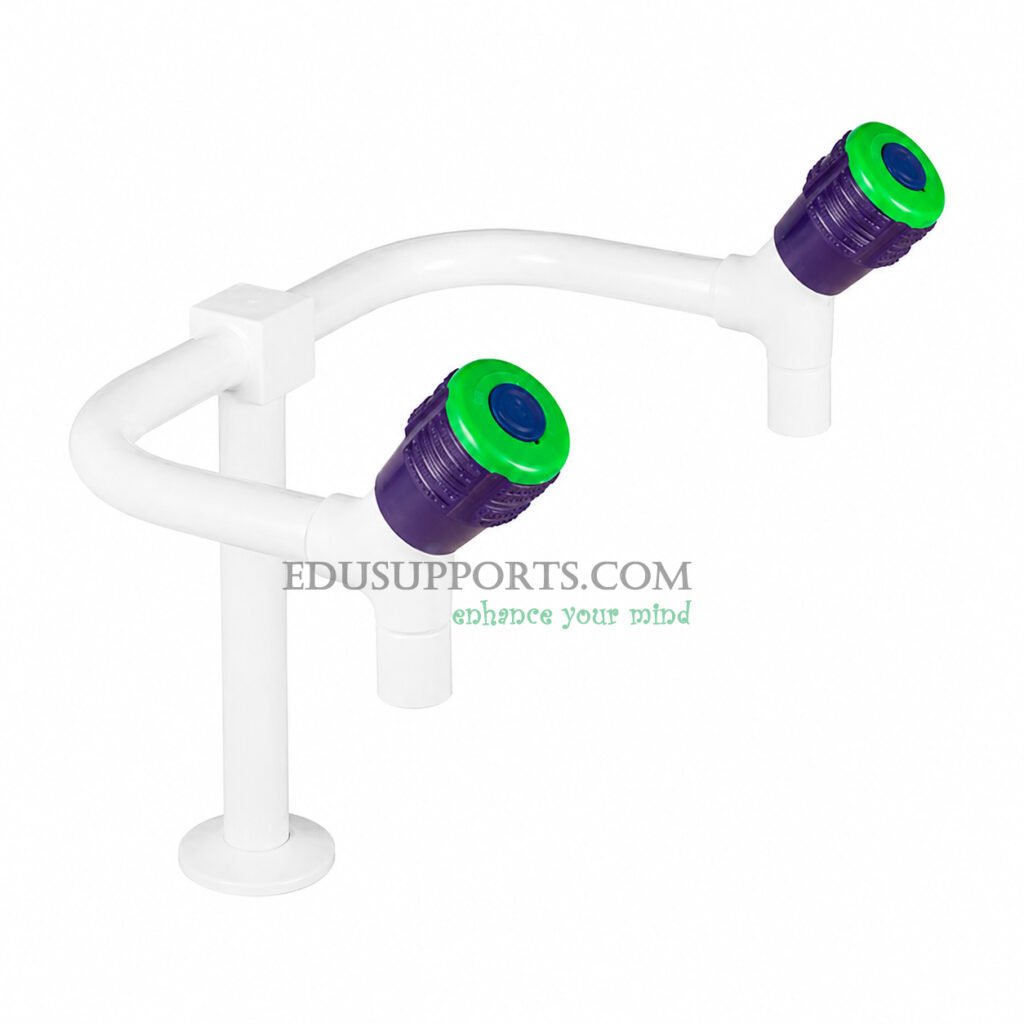

0510010035	Flat double	Square	White epoxy	Eco-friendly, square spout

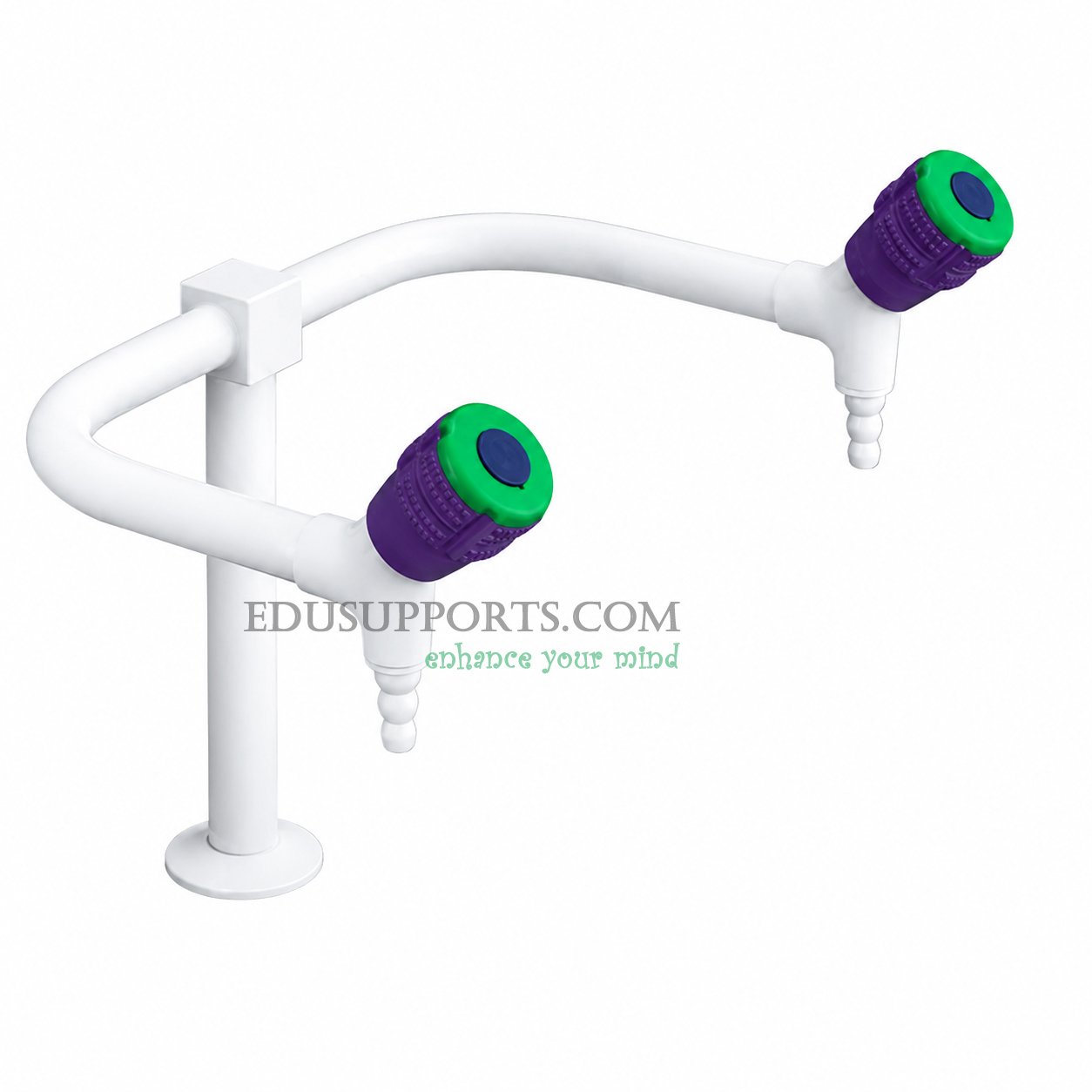

0510010036	Flat double	Pointed	White epoxy	Eco-friendly, pointed nozzle

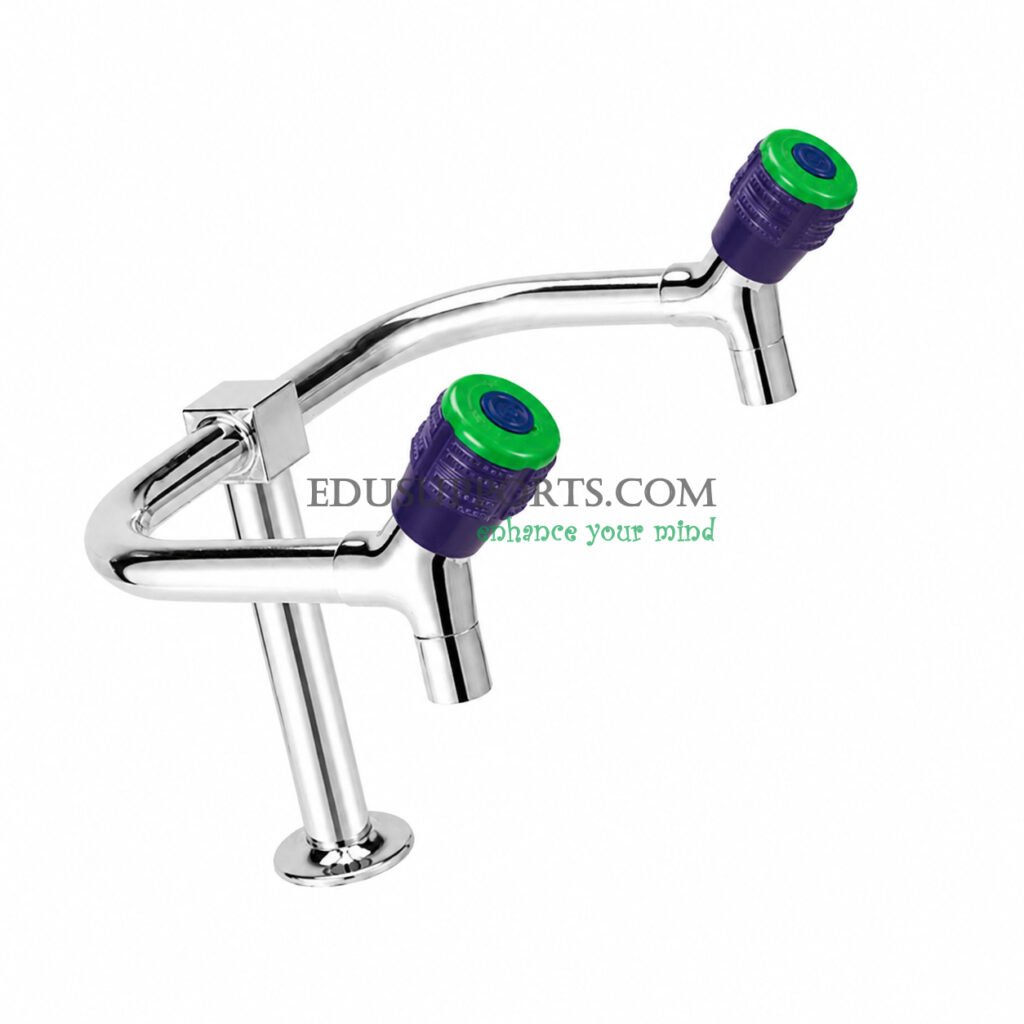

0510010037	Flat double	Square	Chrome plated	Chrome finish, square spout

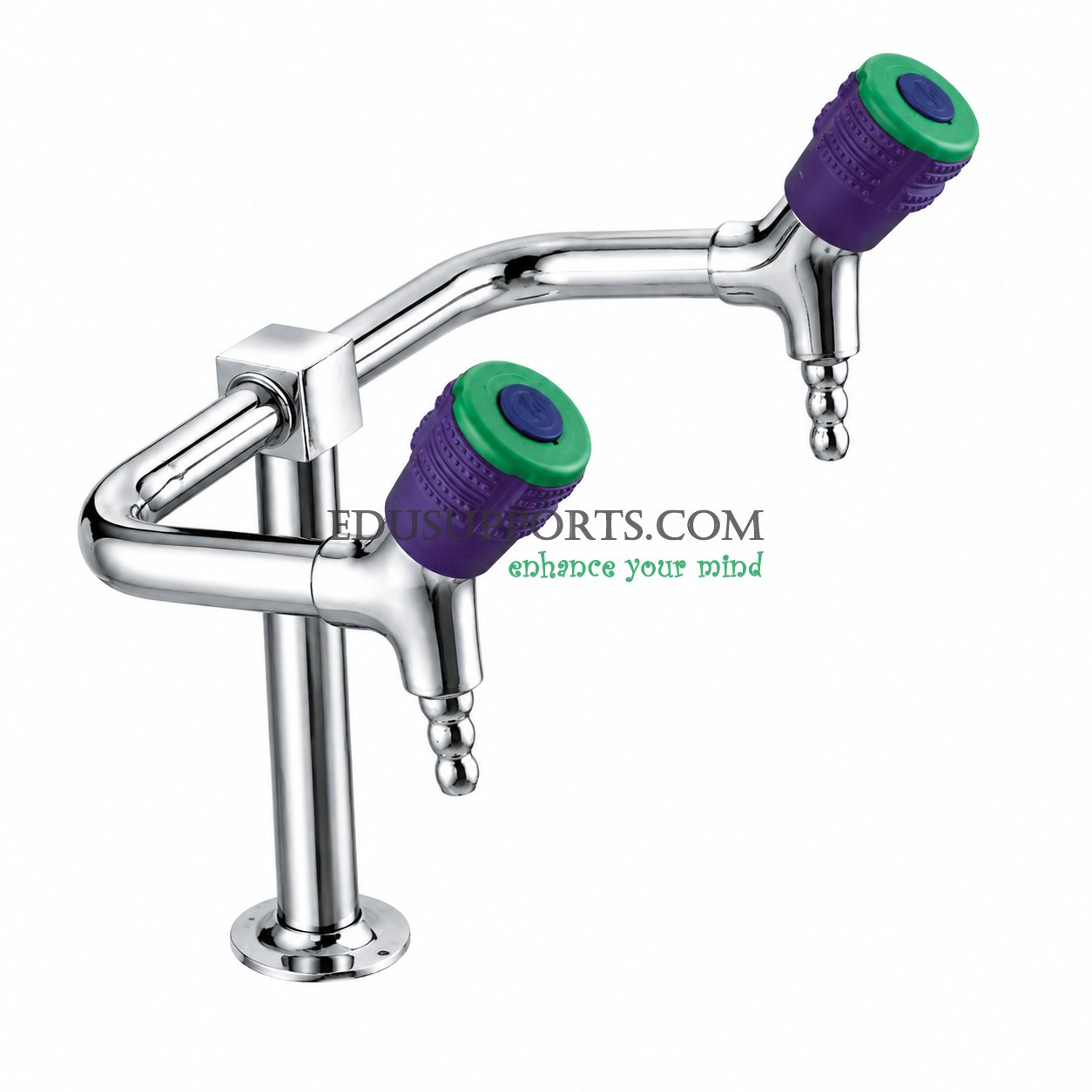

0510010038	Flat double	Pointed	Chrome plated	Chrome finish, pointed nozzle

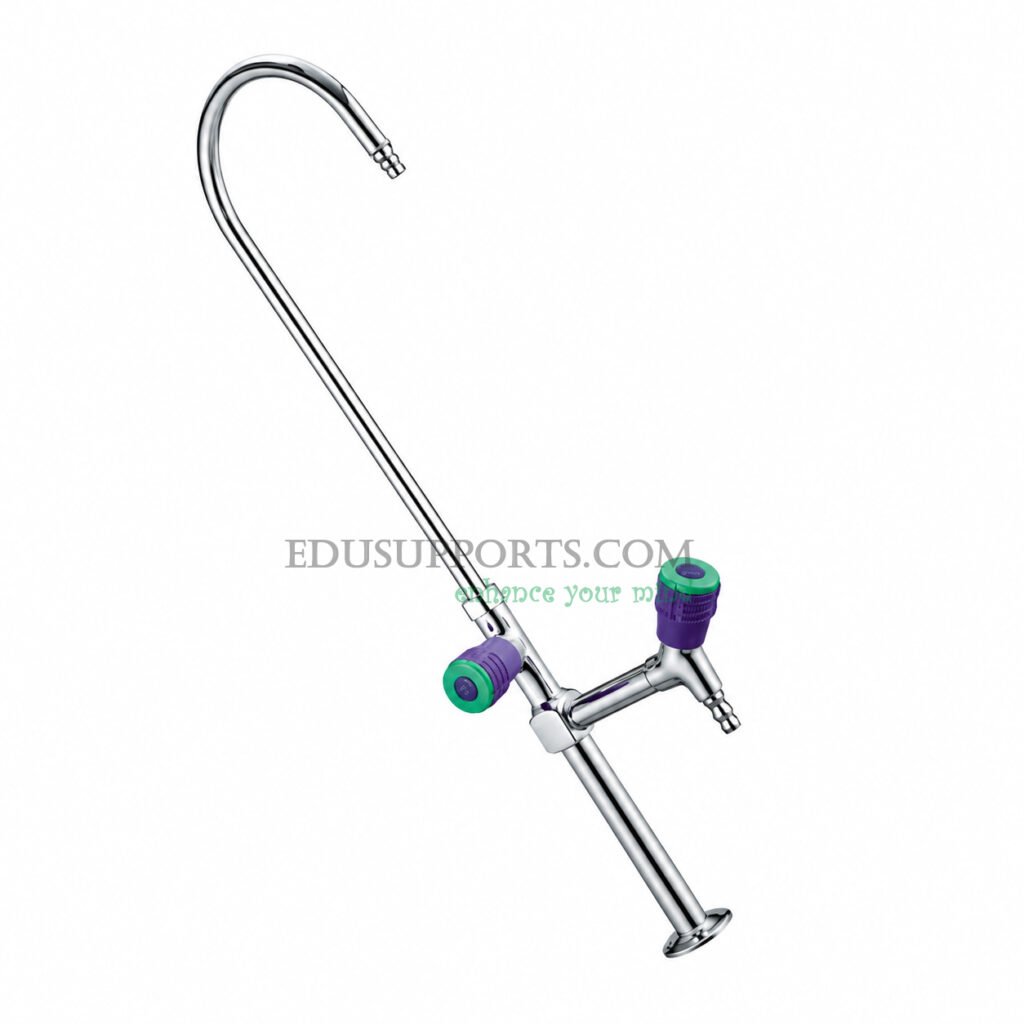

0510010039	Gooseneck	Pointed	Chrome plated	Chrome gooseneck

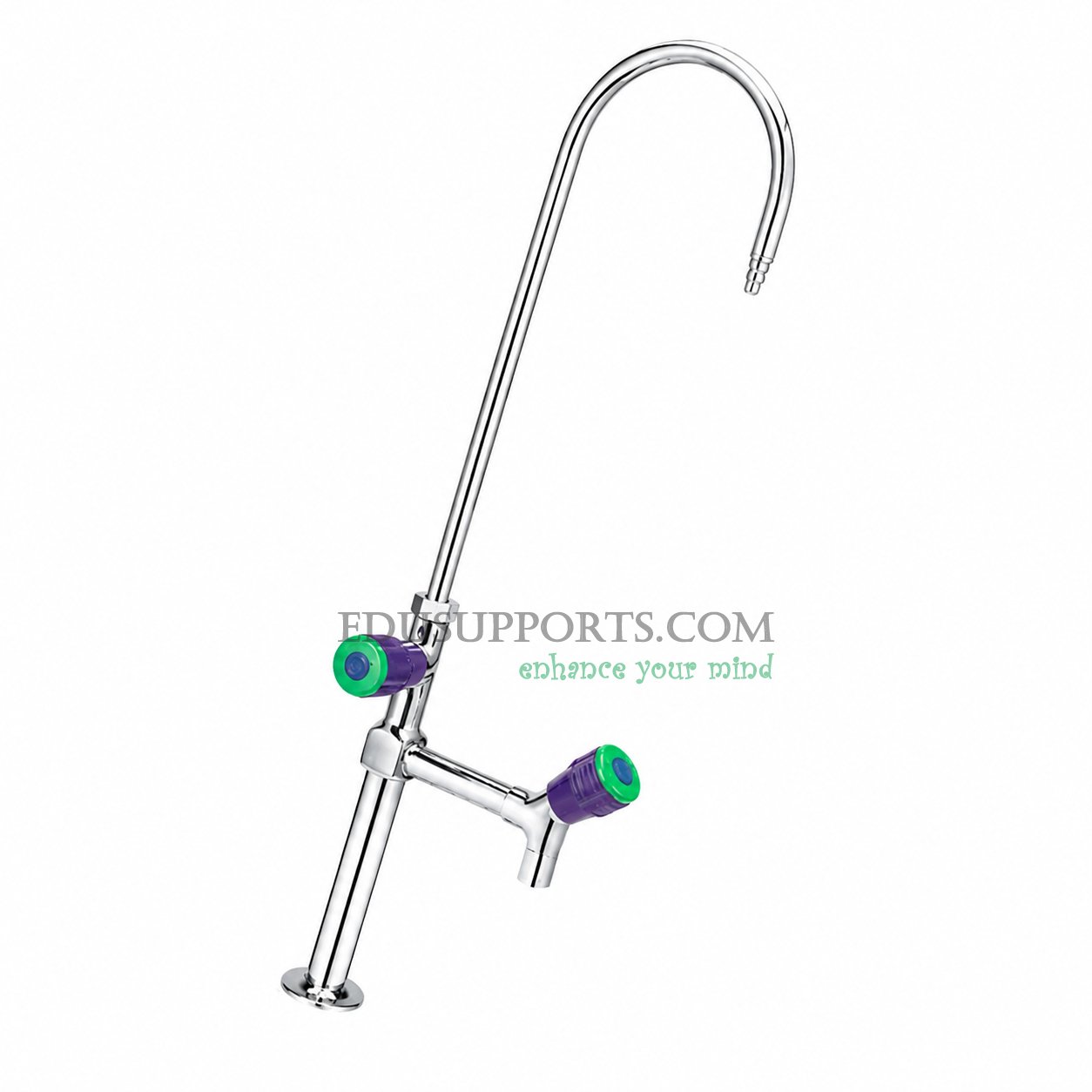

0510010040	Gooseneck with square bend	Pointed	Chrome plated	Chrome, square bend

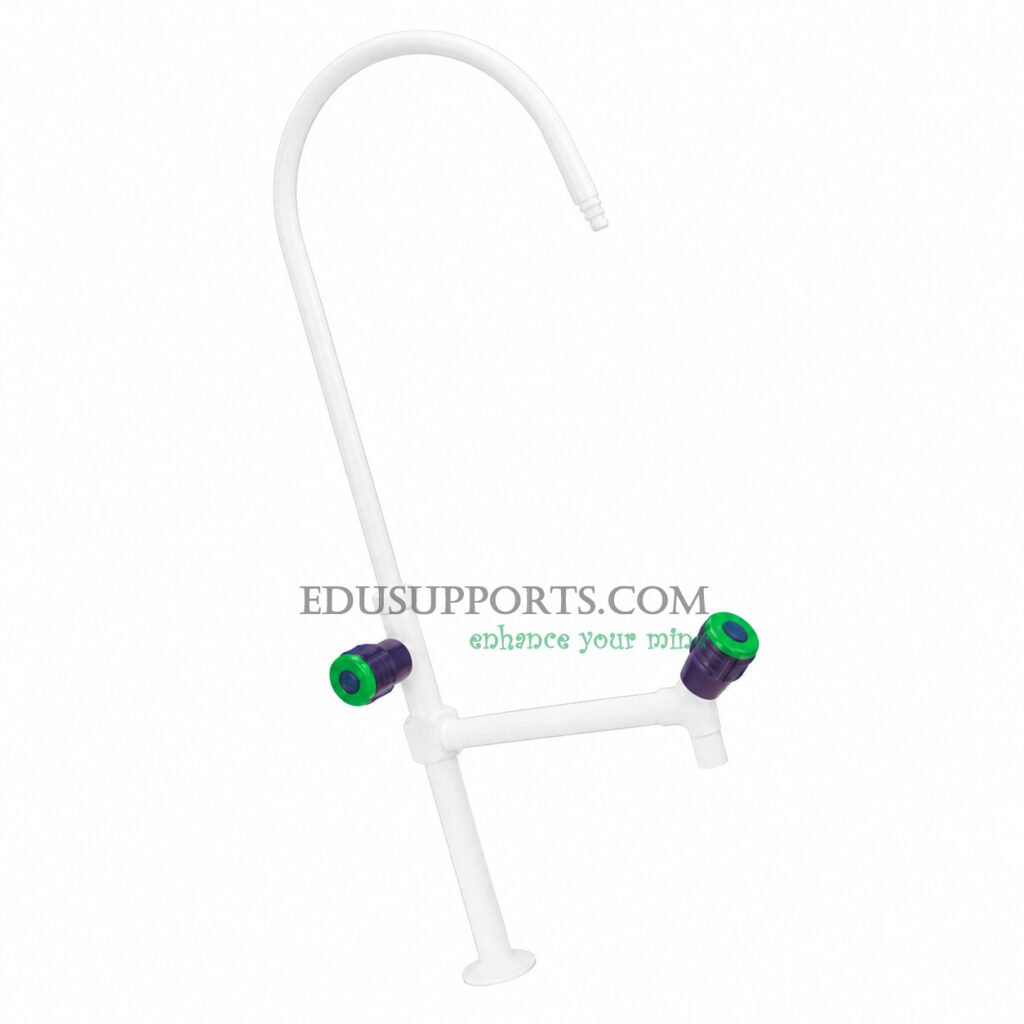

0510010041	Wide gooseneck with square bend	Pointed	White epoxy	Extra wide, square bend

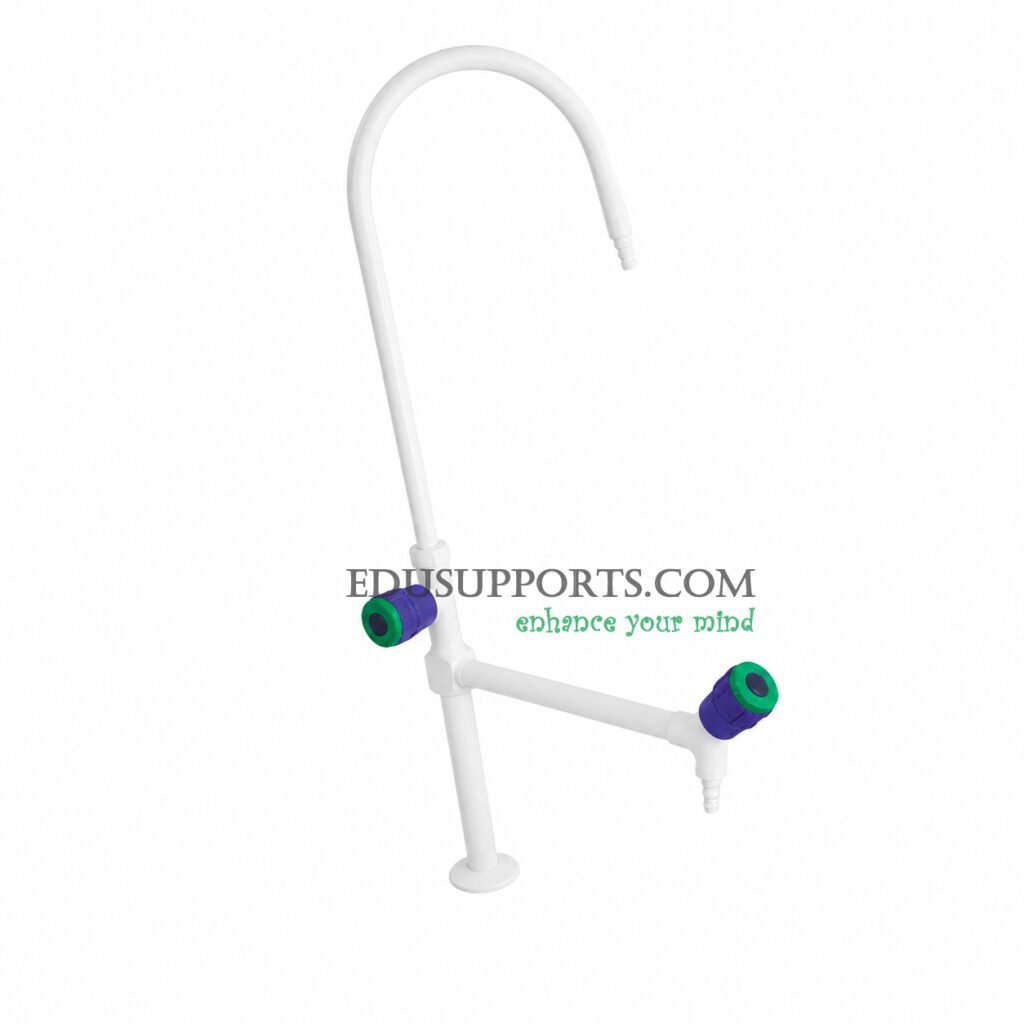

0510010042	Wide gooseneck	Pointed	White epoxy	Extra wide

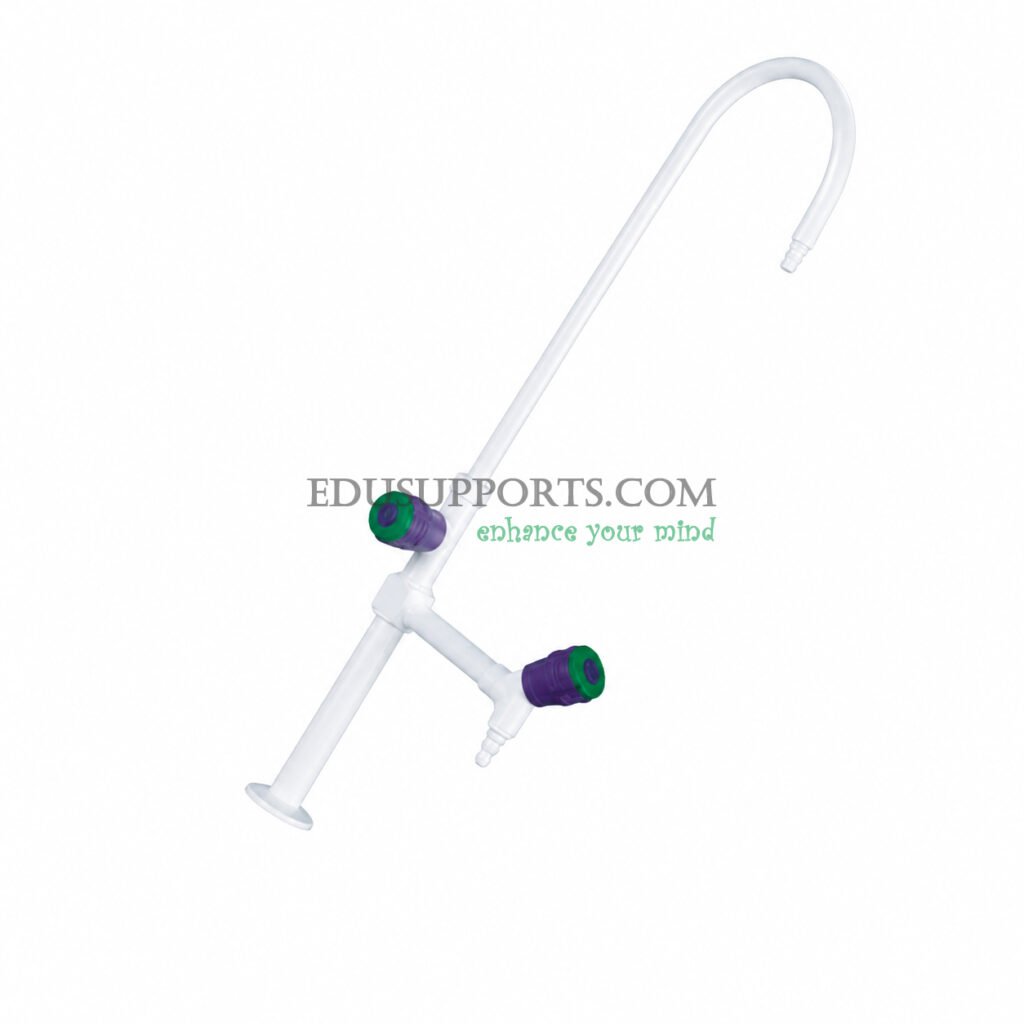

0510010043	Gooseneck	Pointed	White epoxy	Eco-friendly gooseneck

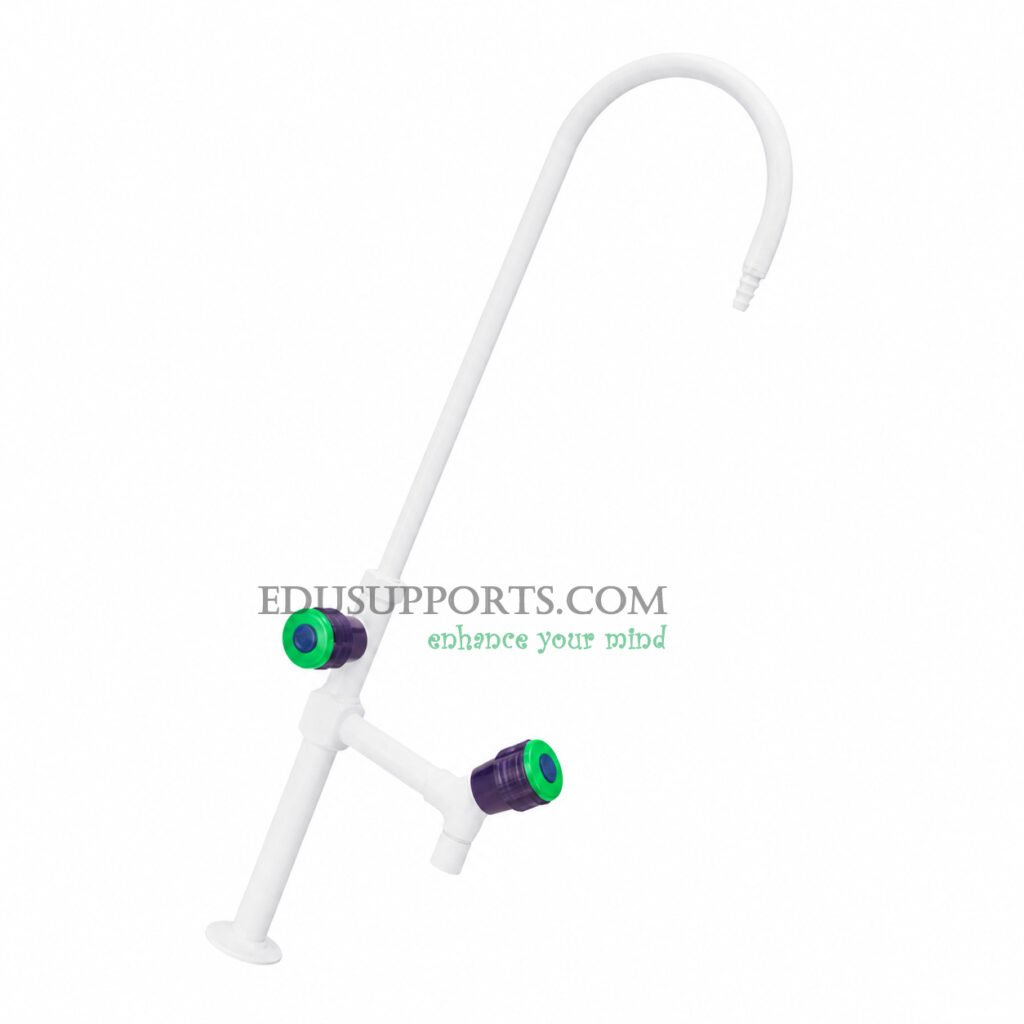

0510010044	Gooseneck	Pointed	White epoxy	Standard gooseneck

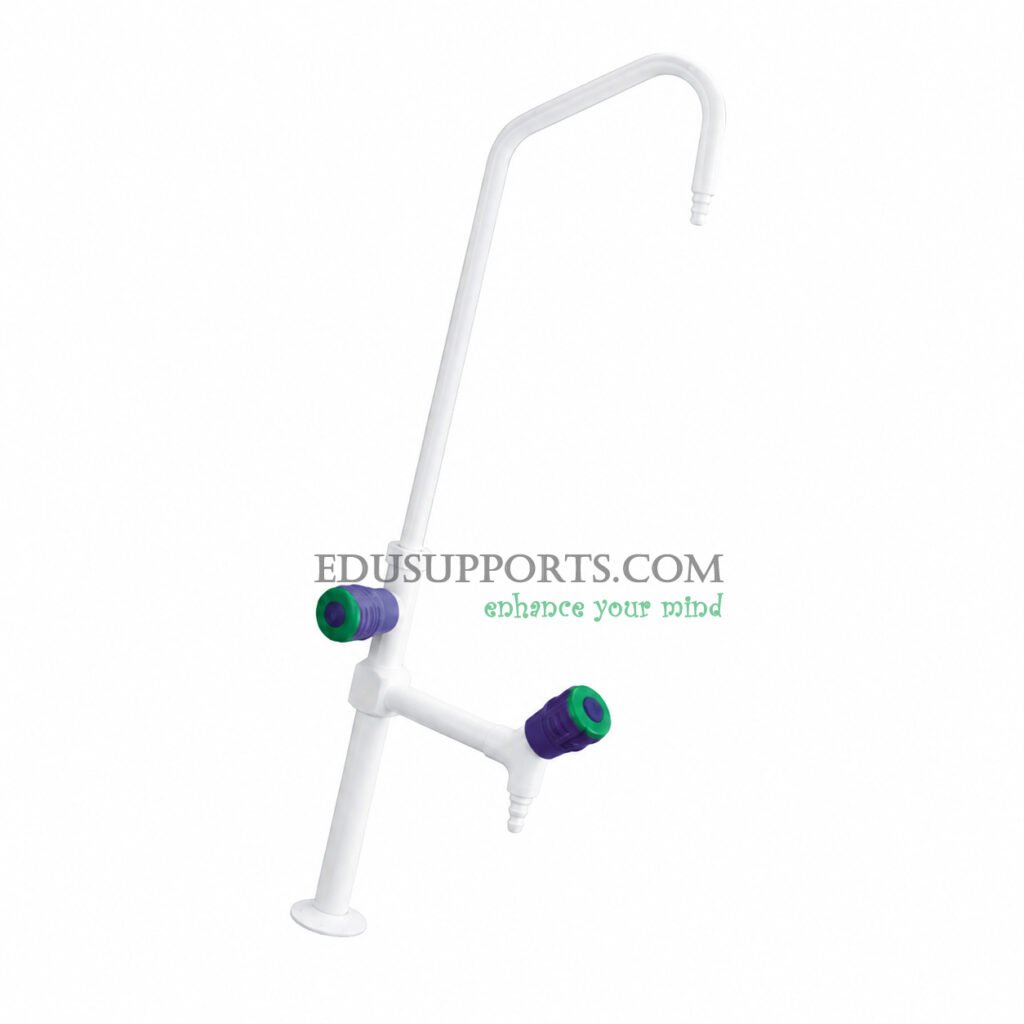

0510010045	Angle	Pointed	White epoxy	Angle spout, pointed nozzle

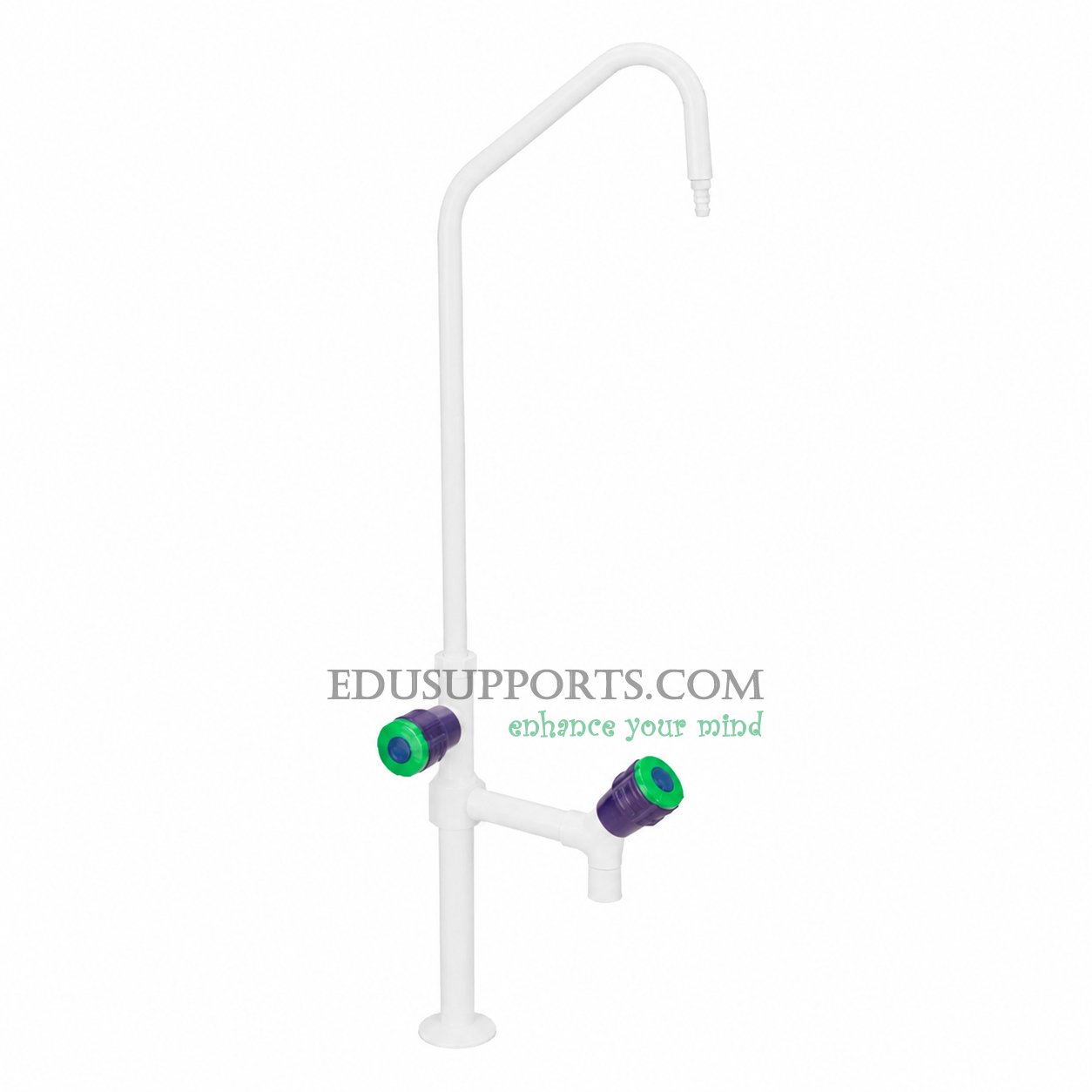

0510010046	Angle	Pointed	White epoxy	Angle spout

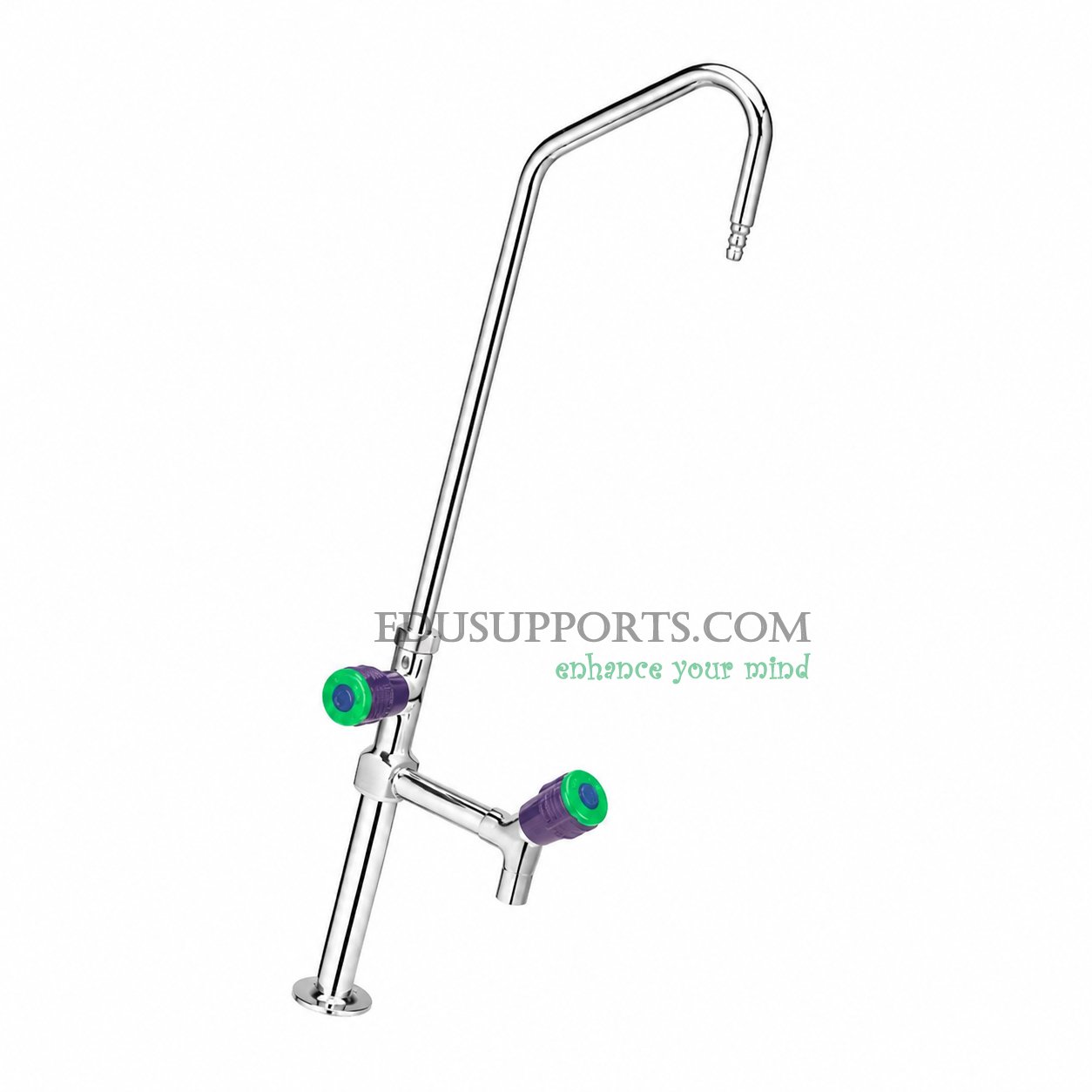

0510010047	Angle	Square	Chrome plated	Chrome, angle, square spout

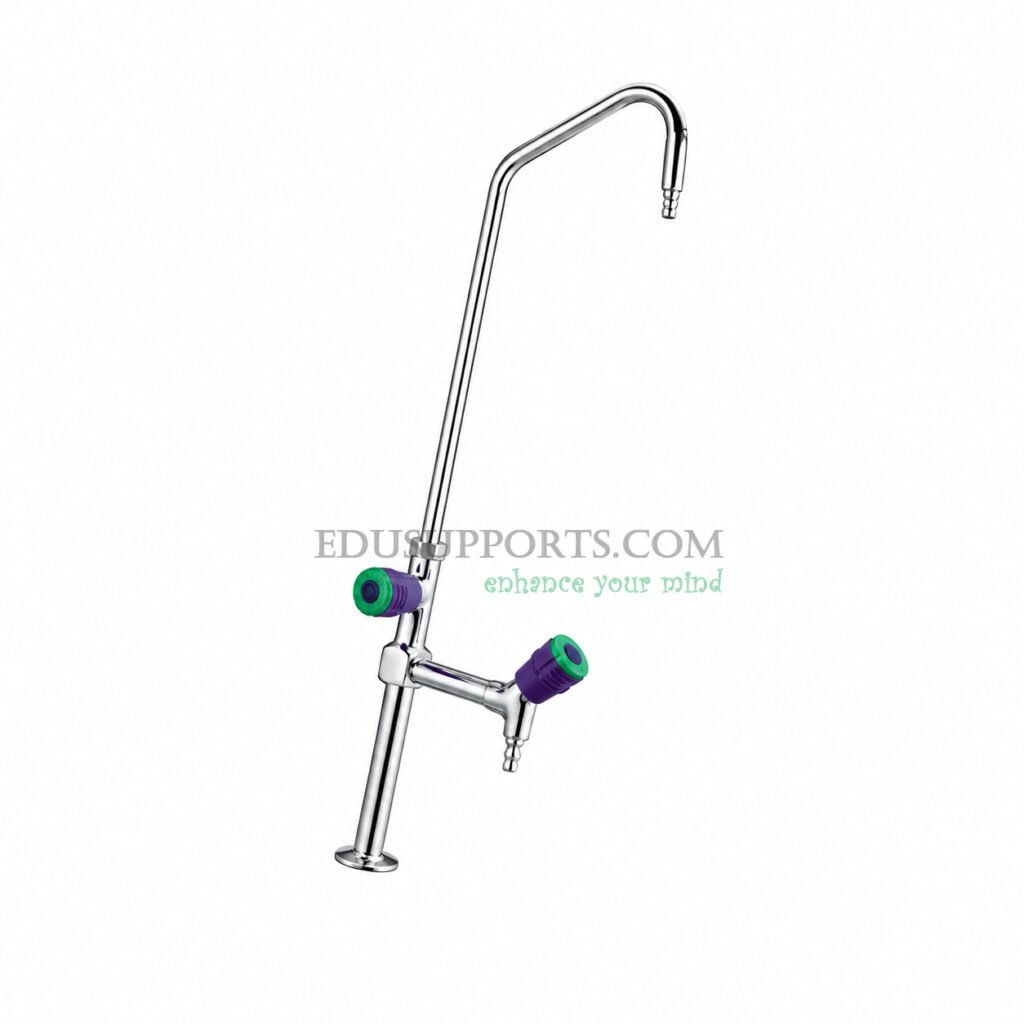

0510010048	Angle	Pointed	Chrome plated	Chrome, angle, pointed nozzle

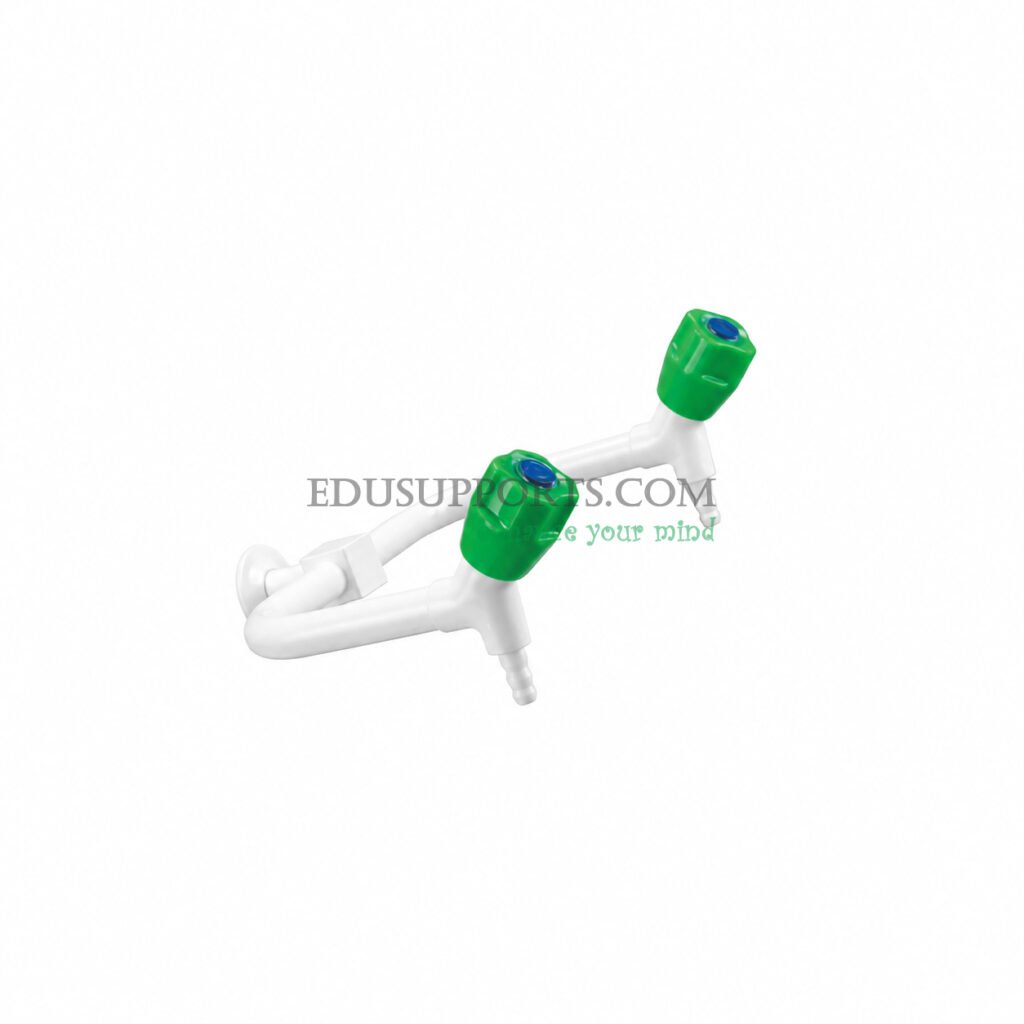

0510010049	Angle	Pointed	White epoxy	Wall-mounted

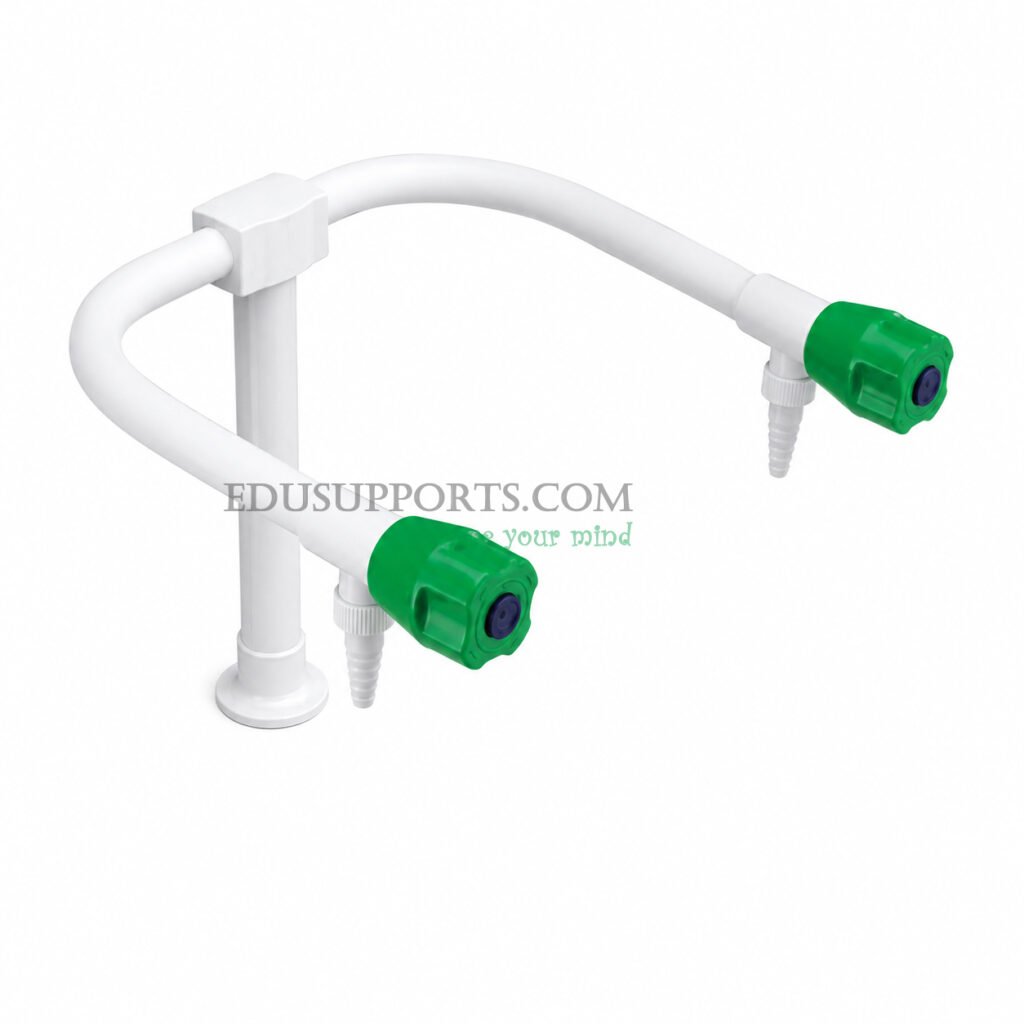

0510010050	Standard	Pointed	White epoxy	High-grade

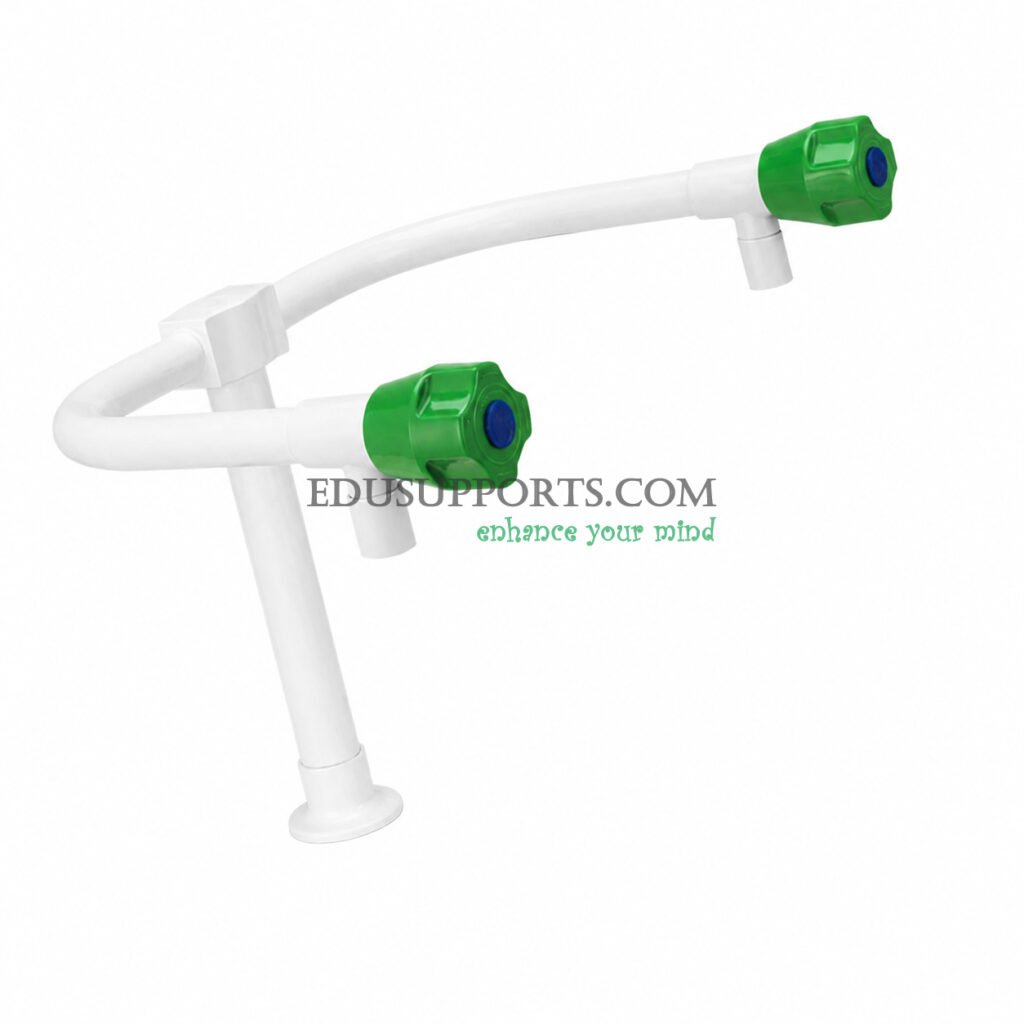

0510010051	Square bend	Pointed	White epoxy	High-grade, square bend

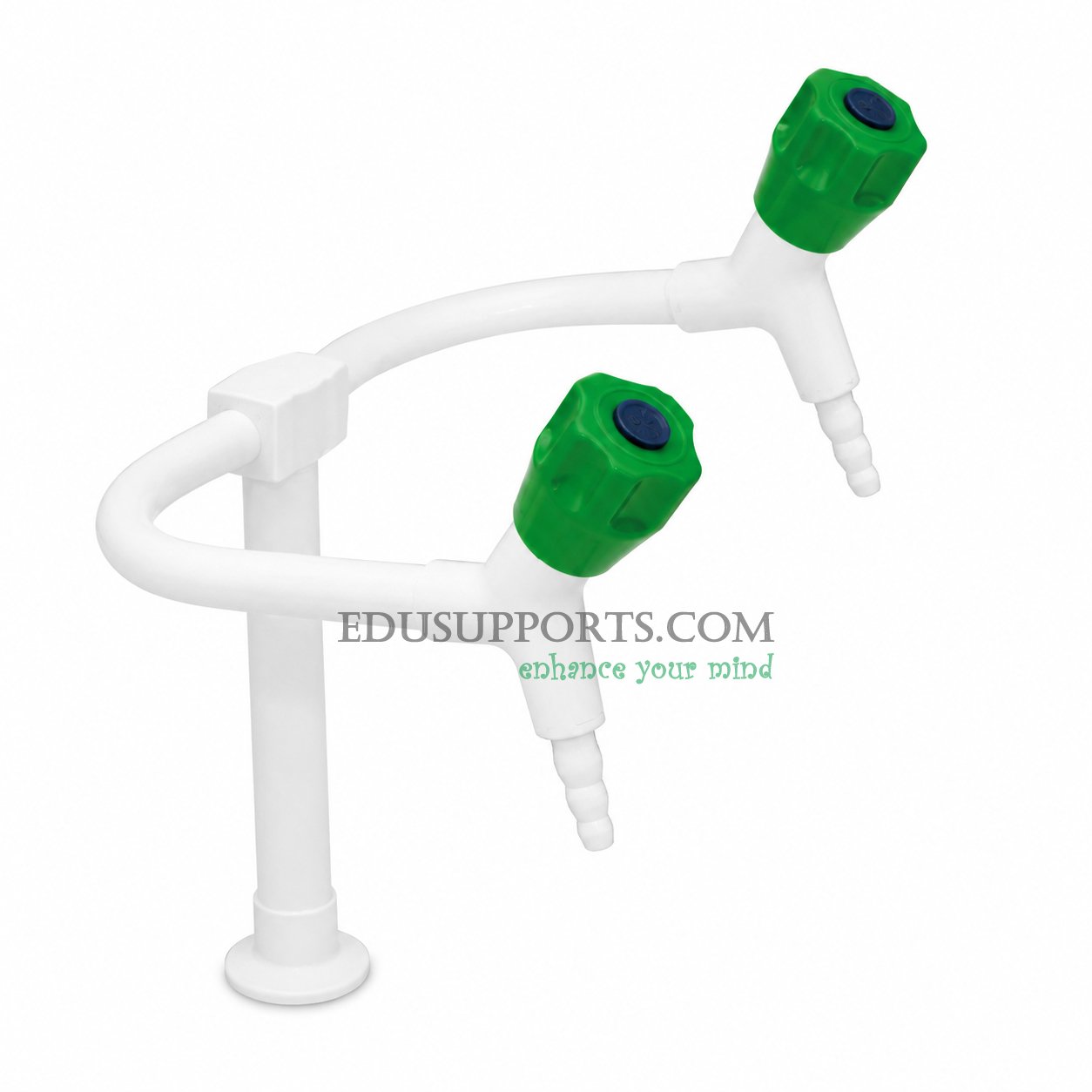

0510010052	Standard	Pointed	White epoxy	High-grade standard

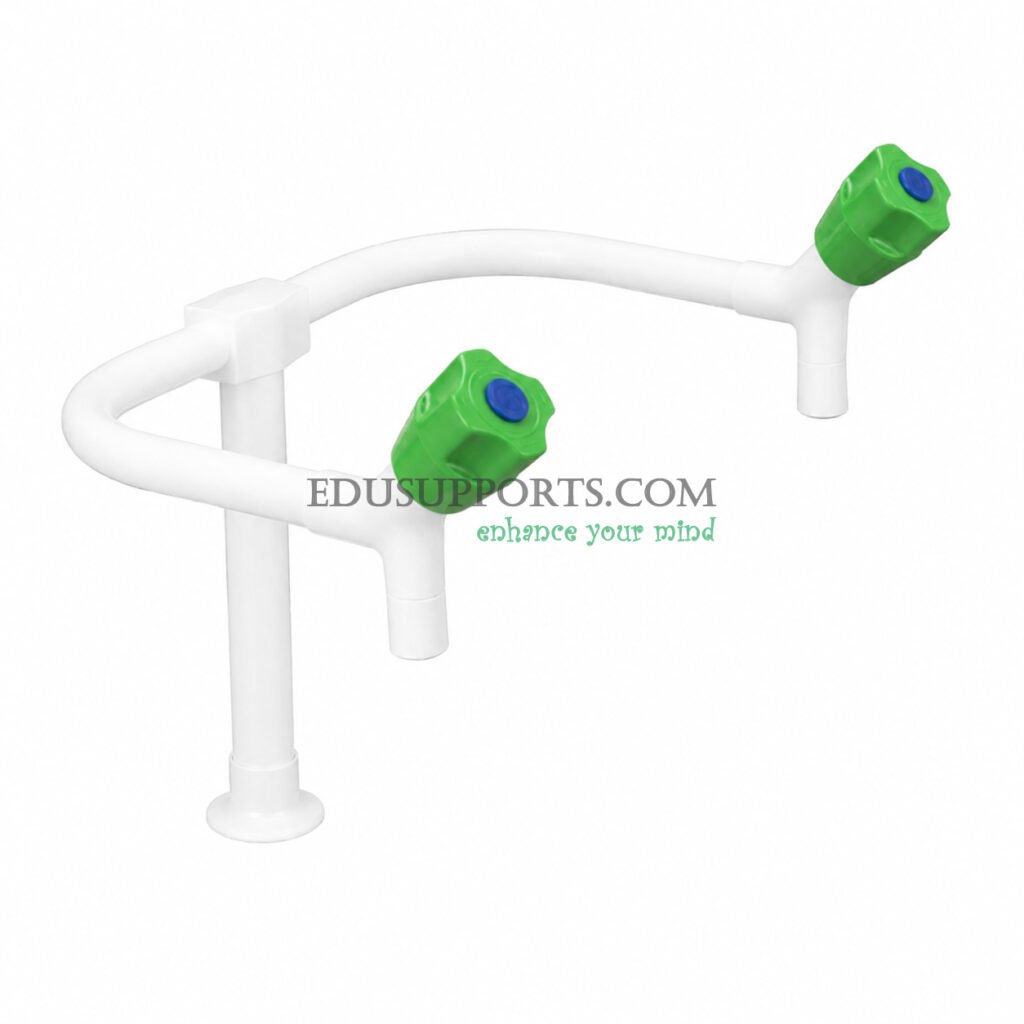

0510010053	Square bend	Pointed	White epoxy	High-grade, square bend

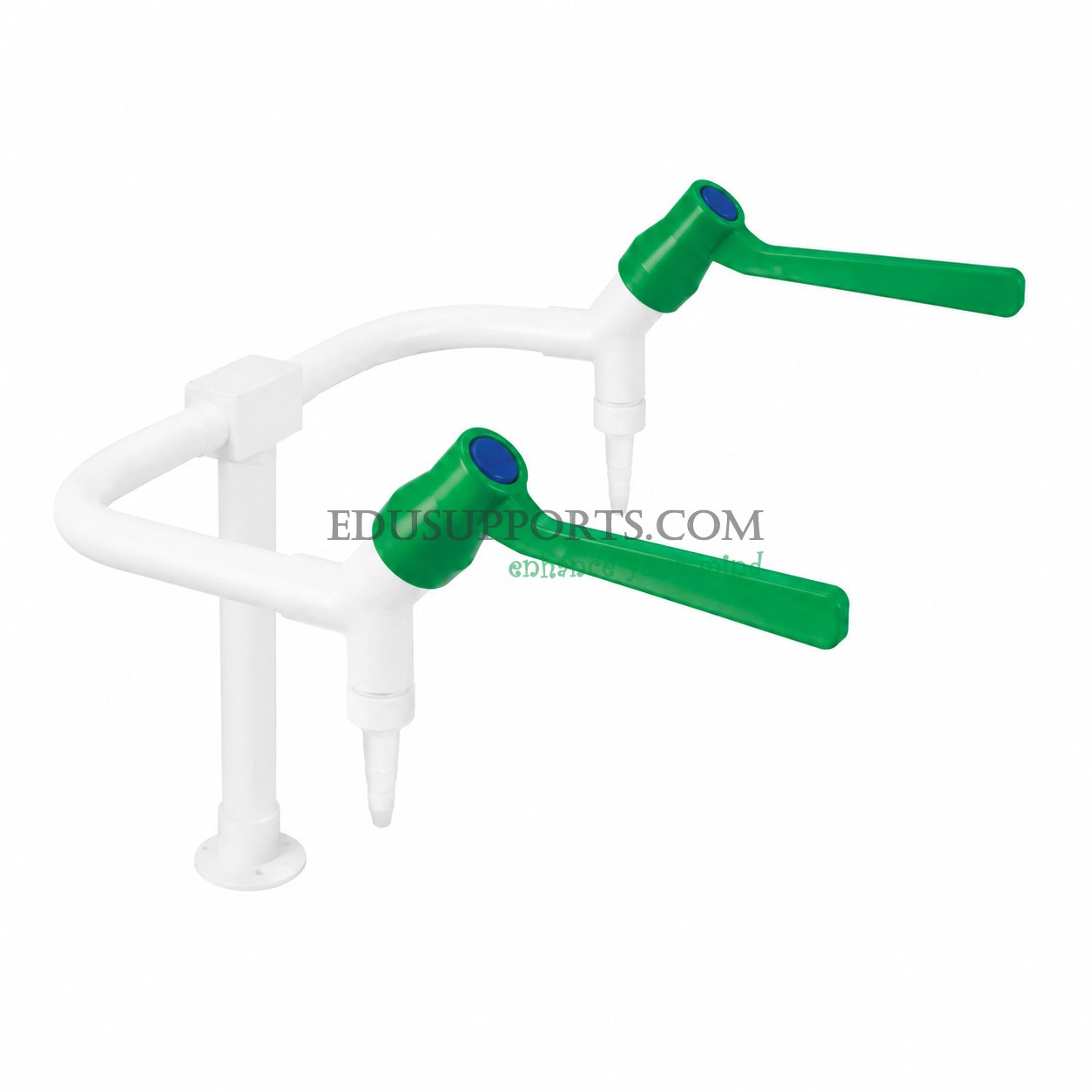

0510010054	Standard	Pointed	White epoxy	Left-hand operation

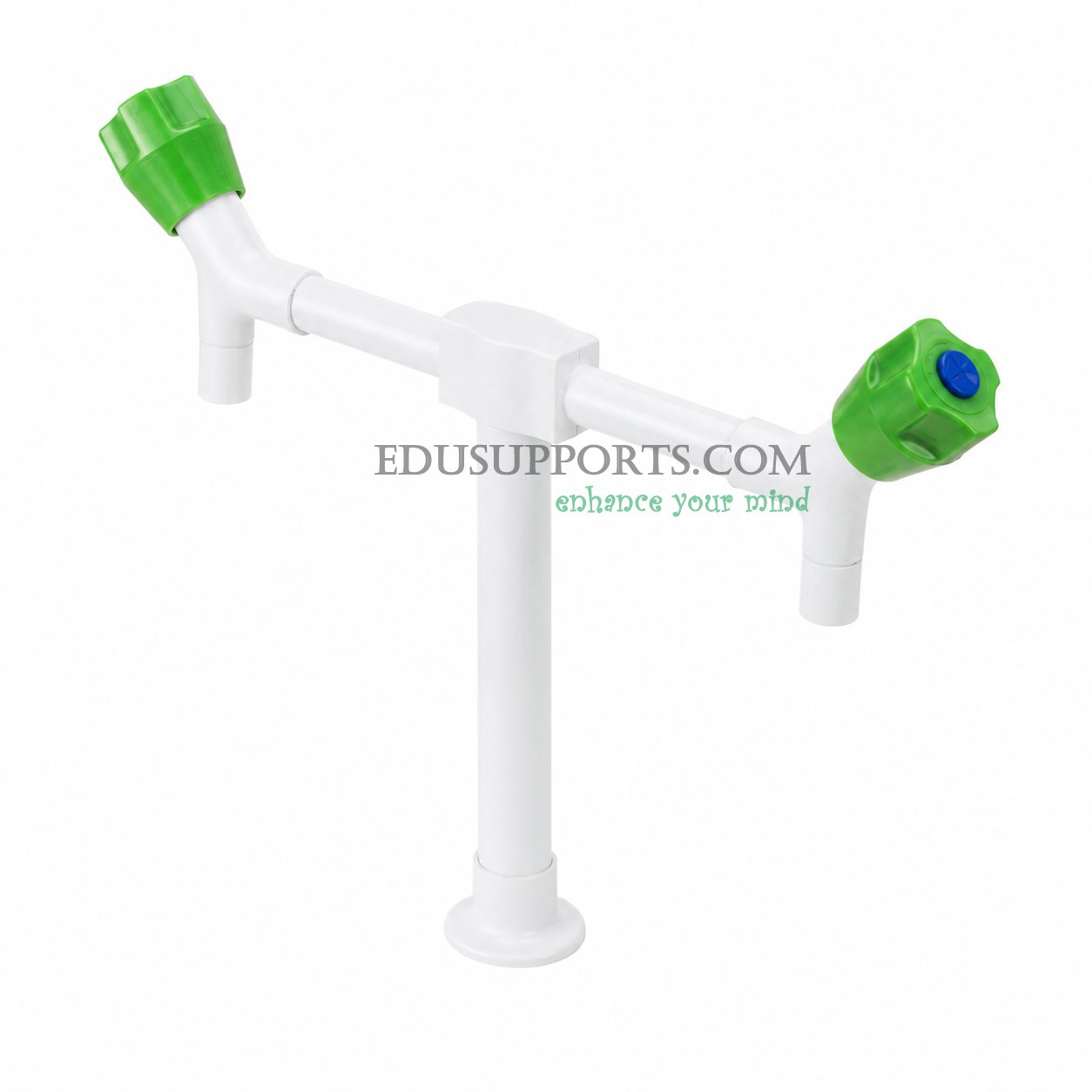

0510010055	T-type with square bend	Pointed	White epoxy	T-type, square bend

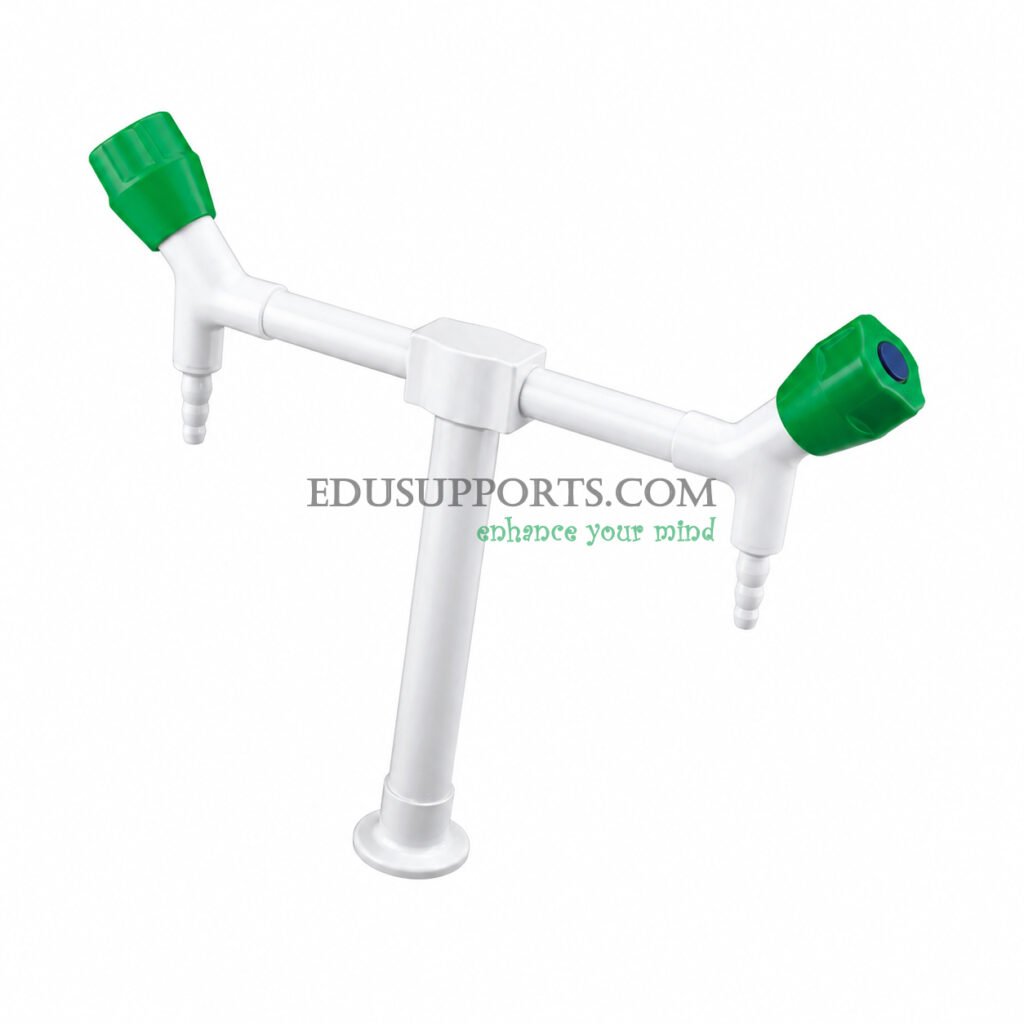

0510010056	T-type	Pointed	White epoxy	T-type standard

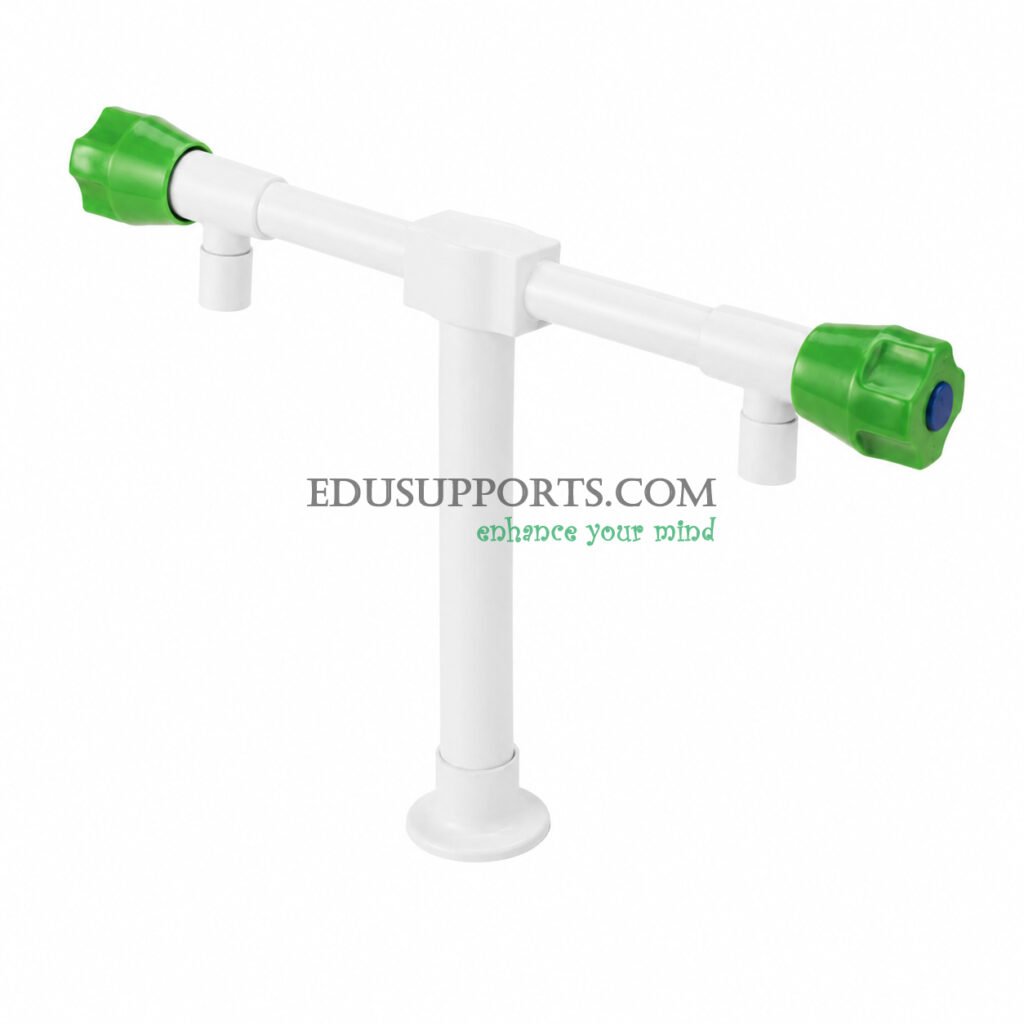

0510010057	T-type with square bend	Pointed	White epoxy	T-type, square bend

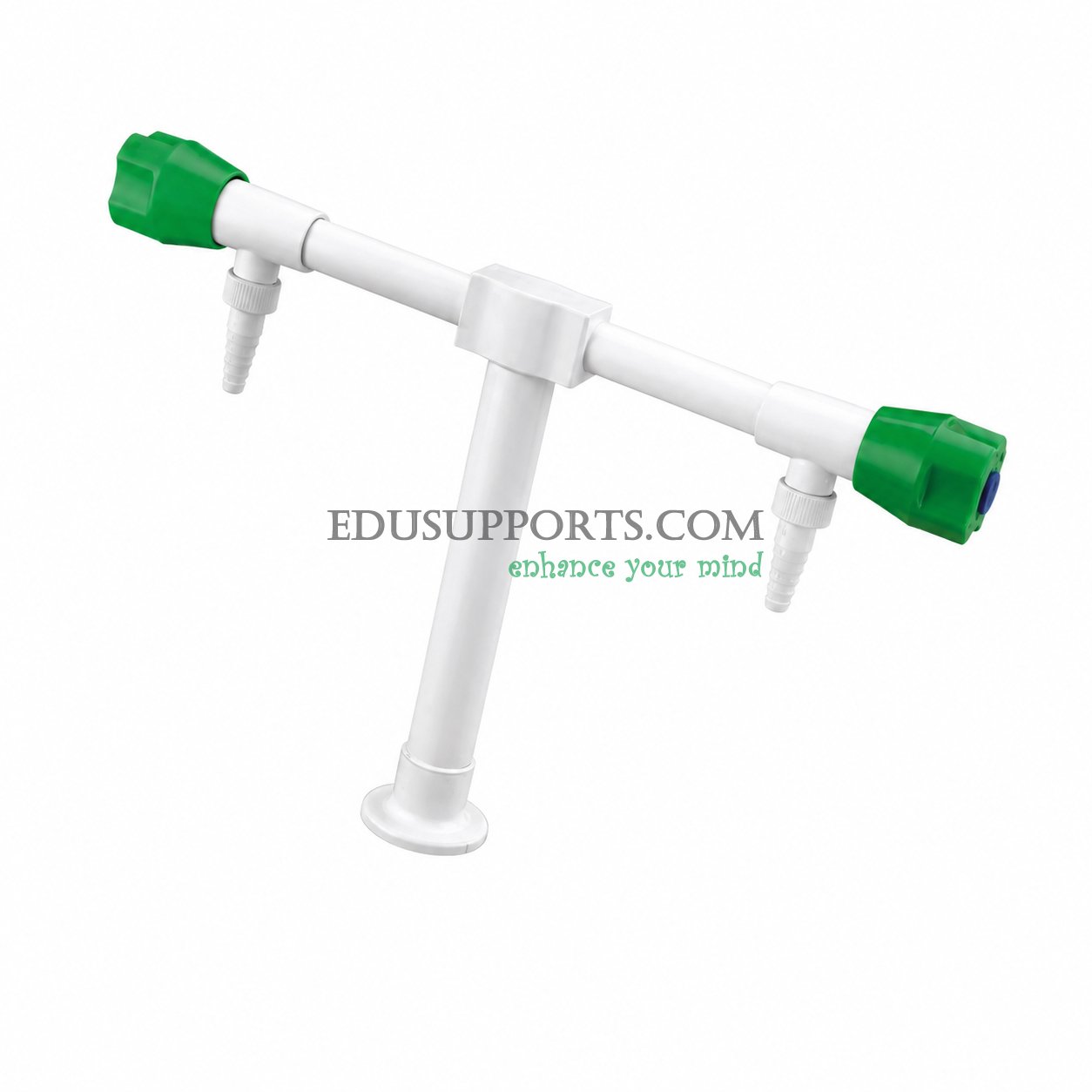

0510010058	T-type	Pointed	White epoxy	T-type standard

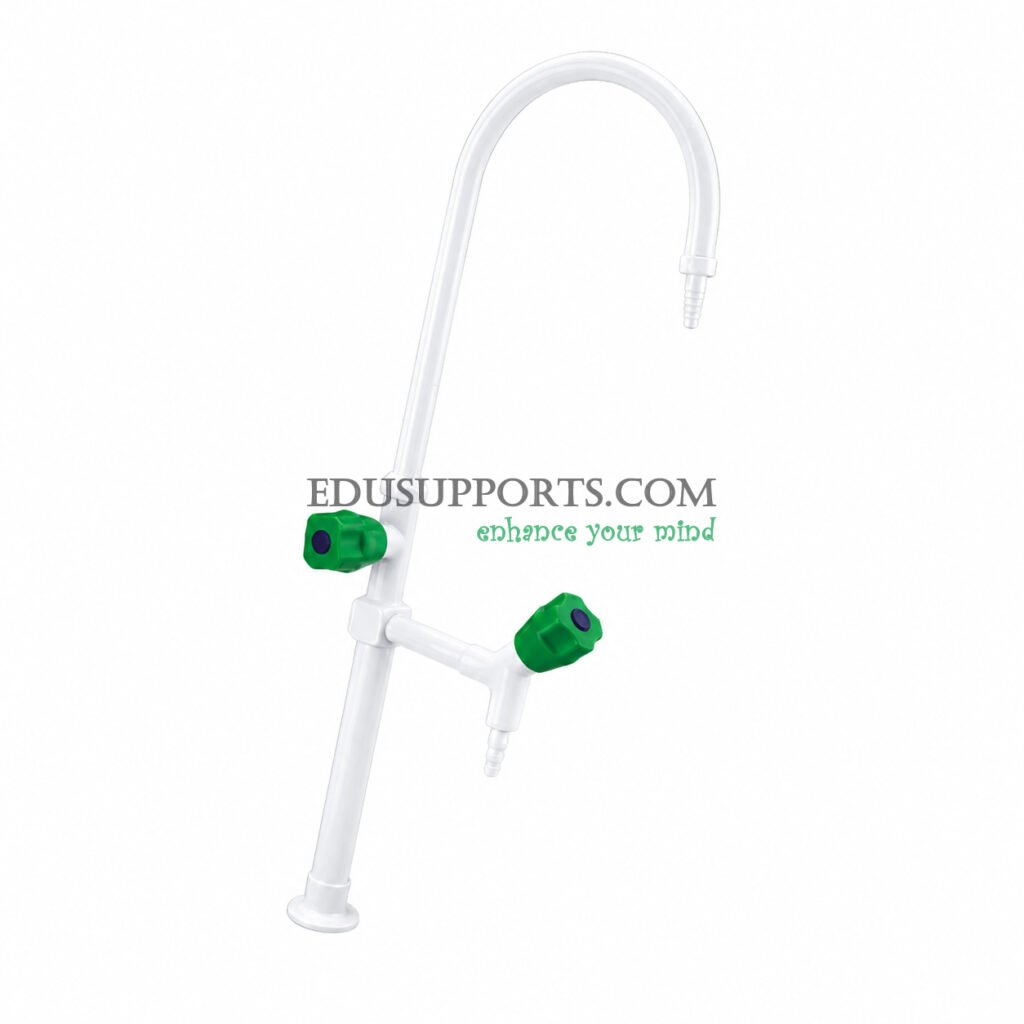

0510010059	Gooseneck	Pointed	White epoxy	High-grade gooseneck

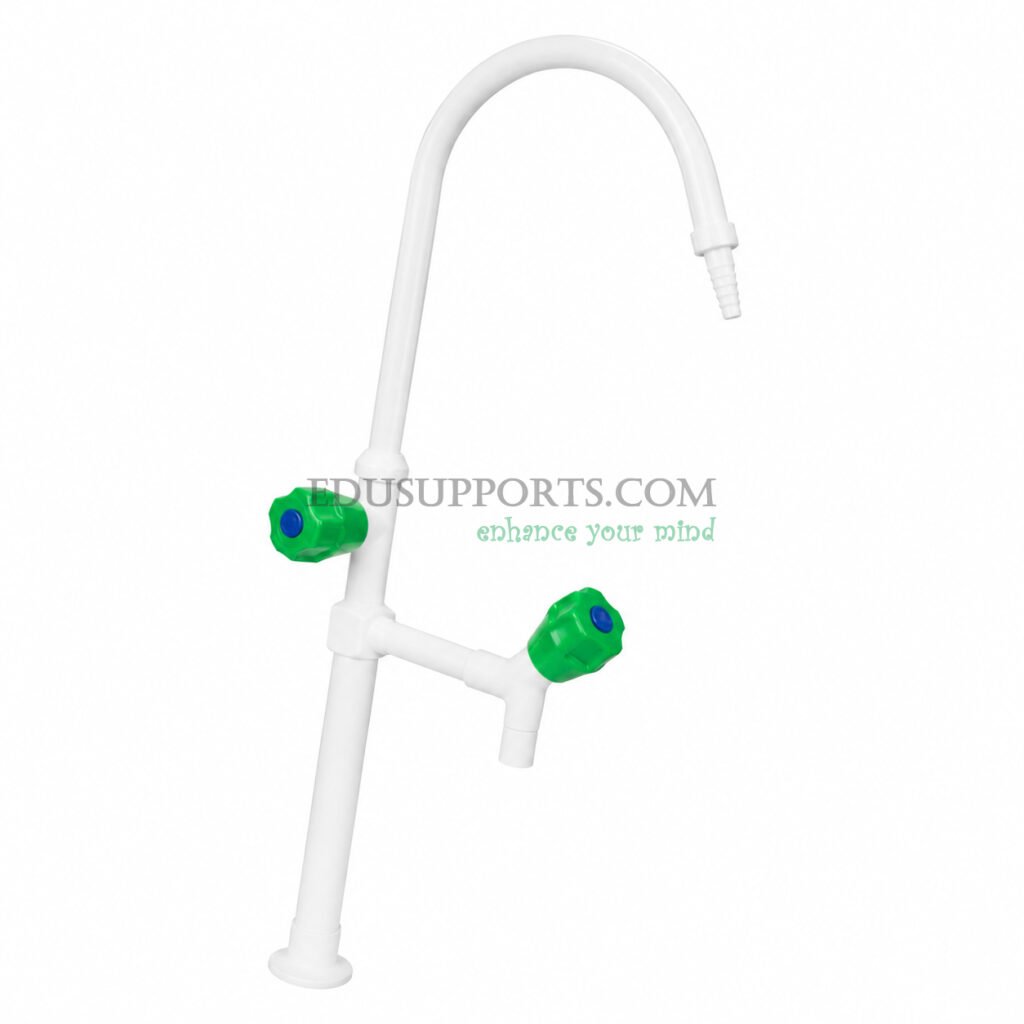

0510010060	Gooseneck with square bend	Pointed	White epoxy	High-grade, gooseneck square bend

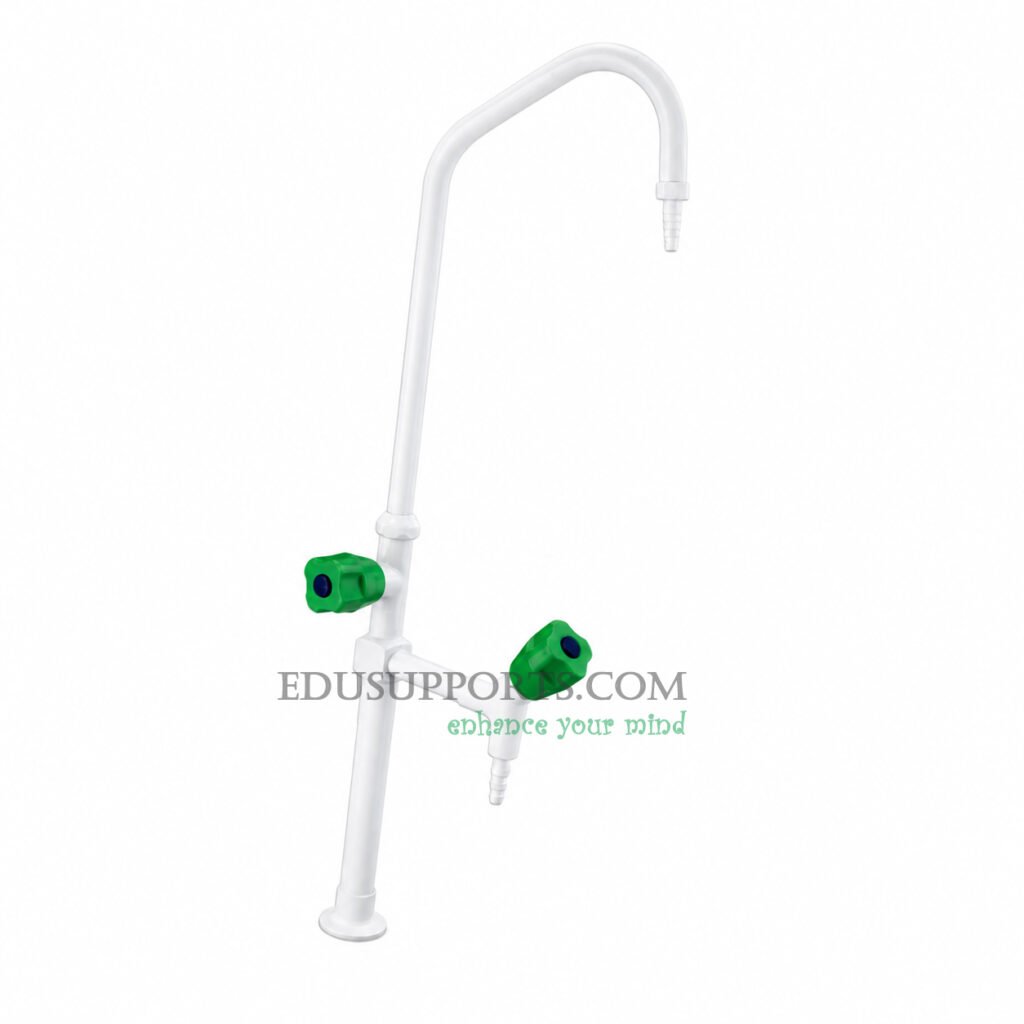

0510010061	Angle	Pointed	White epoxy	High-grade angle

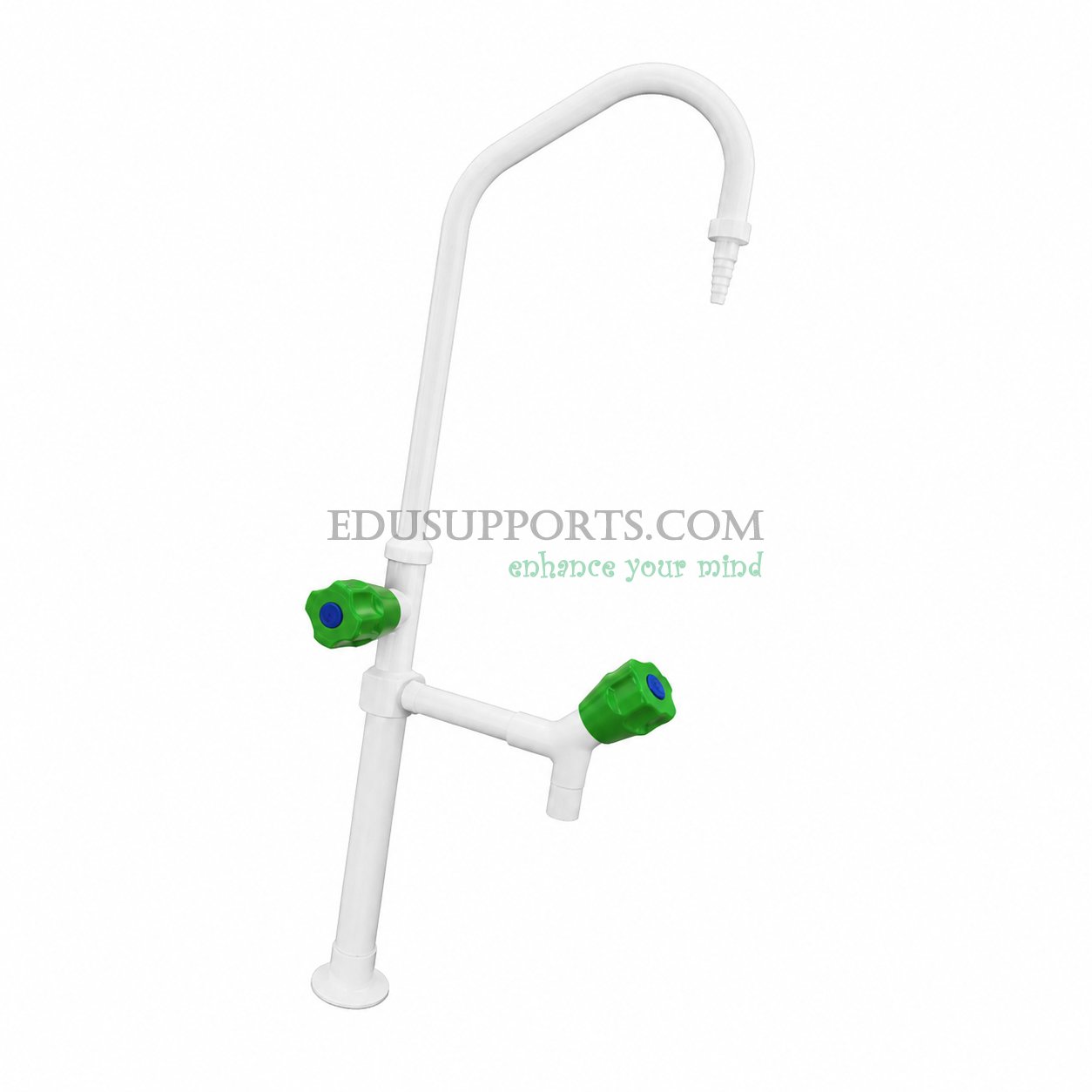

0510010062	Angle	Pointed	White epoxy	High-grade angle

Common Specifications

Specification	Detail
Body material	Solid brass
Coating	High-gloss epoxy powder (grey/white) or chrome plating; chemical-resistant, UV-resistant, heat-resistant
Ceramic headwork	90° turn; 500,000 life cycles; max 10 Bar water static pressure
Handle	Ergonomic high-grade PP knob (one per outlet)
Spout	Dual outlet; 360° swing each (gooseneck, angle, flat double, T-type available)
Nozzle	Pointed nozzle or square spout; detachable brass serrated design
Application	Hospital, school, laboratory, industrial, research institute, factory

Applications – Where to Use Dual-Post Lab Faucets

Environment	Typical Use
Hospitals & Clinics	Multiple specimen preparation stations; equipment rinsing areas
Schools & Universities	Shared student lab benches; multiple experiment setups
Research Institutes	High-throughput research workstations
Industrial Labs	Quality control lines; continuous process water
Factories	Production line water supply with dual access
Wall-mounted installations	Space-constrained laboratories, sink areas with limited benchtop space

Specifically designed for: chemical laboratories (acid/alkali resistance), physics laboratories (precise flow control), biological laboratories (easy sanitization), medical diagnostic labs (contamination-free operation).

How to Use – Best Practices

Installation Guidelines

Mounting hole requirement – most models require a single hole with deck plate; wall-mounted models require wall bracket installation
Water pressure – maximum 10 Bar static pressure
Tubing connection – use serrated nozzles to attach laboratory tubing independently for each outlet

Daily Operation

Each outlet operates independently via its own handle
Turn handle 90° to open/close water flow for each outlet
Use elbow or back of hand to operate—prevents cross-contamination

Cleaning & Maintenance

Wipe exterior with soft cloth and mild detergent
Rinse immediately if chemical spills occur
Ceramic cartridge requires no lubrication
Clean each nozzle independently

Safety Precautions

Test water temperature before placing hands or equipment under flow
Do not use for hydrofluoric acid or corrosive chemical transport
Ensure both outlets are off when not in use

Why EduSupports?

EduSupports delivers quality laboratory fixtures designed for education, healthcare, and research budgets. Our dual-post laboratory faucets feature:

Solid brass construction – no zinc alloys or plastic bodies; real durability for demanding environments
Ceramic cartridge technology – 500,000 life cycle rating eliminates frequent washer replacement
Chemical-resistant epoxy coating or chrome plating – tested against acids, alkalis, and organic solvents
Dual independent outlets – maximum efficiency for busy laboratory workstations
Complete configuration range – desktop, wall-mounted, gooseneck, angle, flat double, T-type, extra wide
Competitive pricing – professional quality at accessible prices

Each EduSupports dual-post laboratory faucet undergoes rigorous quality testing before shipment. Trusted by hospitals, universities, research institutes, and industrial laboratories worldwide.
