Hybrid Stainless Steel Titration Stand – Shell with Iron Core, 60cm Height (Plastic / Iron / Aluminum Butterfly Clamp)
Product Overview
The Hybrid Stainless Steel Titration Stand features a unique stainless steel outer shell with an internal iron core – a design that delivers the best of both worlds: the exterior provides excellent resistance to acids, alkalis, and organic solvents while remaining easy to clean, and the internal iron core adds substantial weight (approx. 1.7kg) to keep the stand stable during titration without the high cost of a solid stainless steel base.
This series is ideal for school chemistry labs, university teaching facilities, and professional analytical laboratories that require both corrosion resistance and stability. The base measures 280×155mm with a 22mm thickness, paired with a 60cm solid steel rod (9.5mm diameter).
The series includes four configurations based on the butterfly clip (burette clamp) material – plastic, iron, or aluminum – plus a base‑only option for customers who already own compatible clamps.
Below you will find each SKU presented separately, complete with specifications and product images.
Common Specifications
| Parameter | Value |
|---|---|
| Total Height | 600 mm (60 cm) |
| Steel Rod Diameter | 9.5 mm (solid steel, powder‑coated) |
| Base Construction | Stainless steel outer shell + internal iron core |
| Base Dimensions (L × W) | 280 × 155 mm |
| Base Thickness | approx. 22 mm |
| Butterfly Clip Max Opening (when included) | approx. 30 mm |
| Burette Capacity (when clip included) | Two burettes simultaneously |
| Application | Acid‑base titration, burette support, general lab use |
| Note | Manual measurement may result in slight dimensional tolerances |
Hybrid Stainless Steel Titration Stand with Plastic Butterfly Clamp
Key Features:
Plastic butterfly clip with 20mm opening – fits standard burettes
Corrosion‑resistant stainless steel shell with weighted iron core for stability
Affordable option for budget‑conscious schools and occasional use
Complete kit: hybrid base, steel rod, and plastic butterfly clip
Easy to clean – simply wipe the stainless steel surface
| Specification | Detail |
|---|---|
| SKU | 0207010170-09 |
| Butterfly Clip Material | Plastic |
| Total Height | 600 mm (60 cm) |
| Steel Rod Diameter | 9.5 mm (solid steel, powder‑coated) |
| Base Construction | Stainless steel outer shell + iron core |
| Base Length | 280 mm |
| Base Width | 155 mm |
| Base Thickness | approx. 22 mm |
| Butterfly Clip Max Opening | approx. 30 mm |
| Burette Capacity | Two burettes simultaneously |
| Total Weight | approx. 1700 g |
| Application | Acid‑base titration, school labs, general burette support |

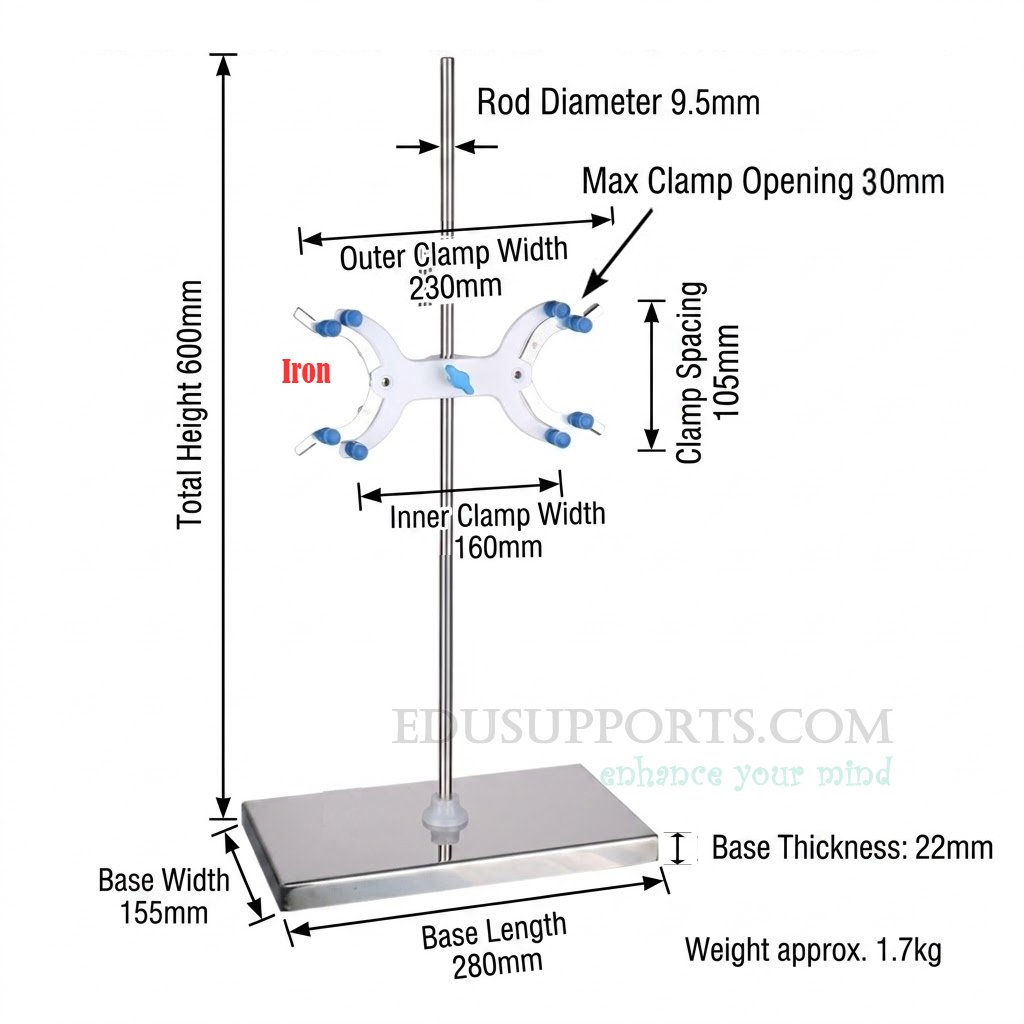

Hybrid Stainless Steel Titration Stand with Iron Butterfly Clamp
| Specification | Detail |
|---|---|
| SKU | 0207010170-10 |
| Butterfly Clip Material | Iron |
| Total Height | 600 mm (60 cm) |
| Steel Rod Diameter | 9.5 mm (solid steel, powder‑coated) |
| Base Construction | Stainless steel outer shell + iron core |
| Base Length | 280 mm |
| Base Width | 155 mm |
| Base Thickness | approx. 22 mm |
| Butterfly Clip Max Opening | approx. 30 mm |
| Burette Capacity | Two burettes simultaneously |
| Total Weight | approx. 1710 g |
| Application | Heavy‑duty daily titration, university labs |
Key Features:
Heavy‑duty iron butterfly clip for maximum durability and grip strength
Ideal for busy school labs and daily high‑frequency use
Stainless steel shell protects against spills while iron core adds stability
Complete kit: hybrid base, steel rod, and iron butterfly clip

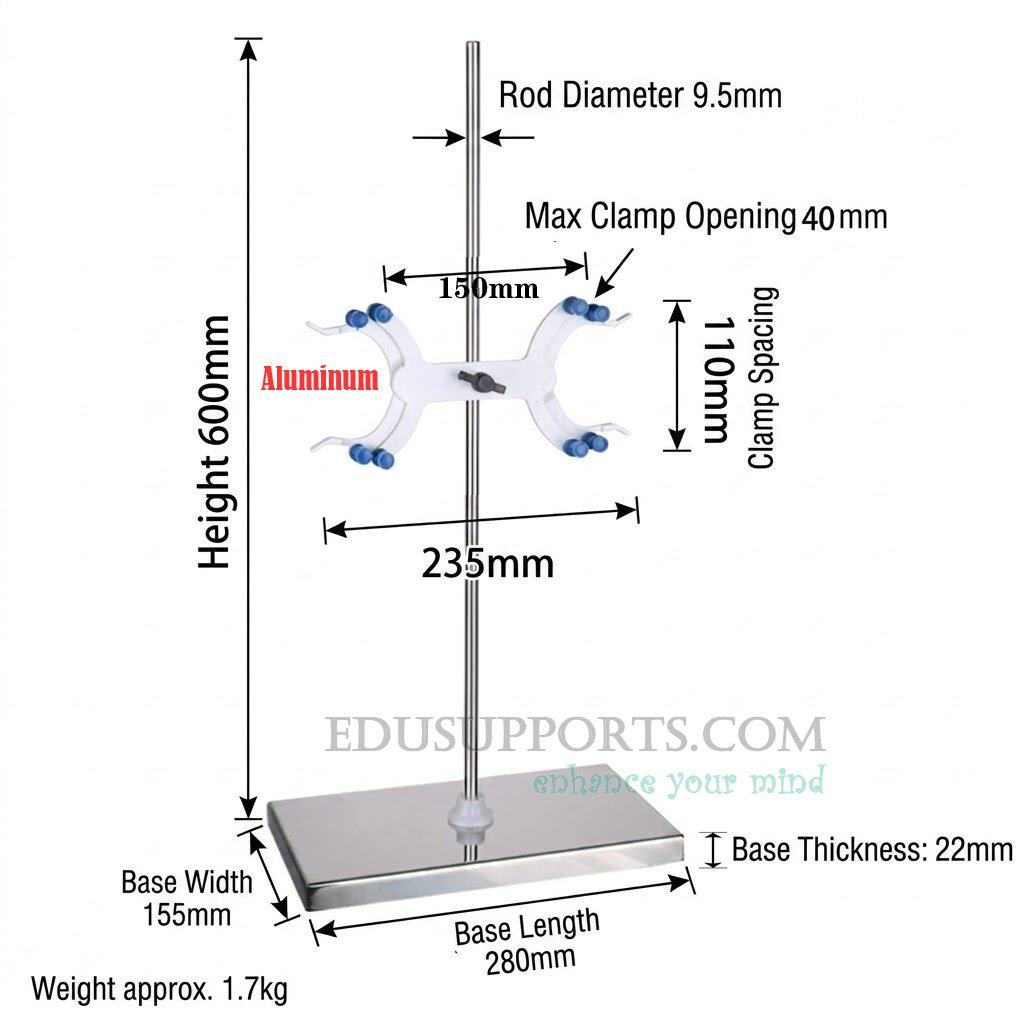

Hybrid Stainless Steel Titration Stand with Aluminum Butterfly Clamp
Key Features:
Rust‑proof aluminum butterfly clip – perfect for wet chemistry and fume hoods
Lightweight yet strong, offering the best balance of corrosion resistance and durability
Stainless steel shell complements the non‑corrosive clip for complete chemical resistance
Complete kit: hybrid base, steel rod, and aluminum butterfly clip
| Specification | Detail |
|---|---|
| SKU | 0207010170-11 |
| Butterfly Clip Material | Aluminum |
| Total Height | 600 mm (60 cm) |
| Steel Rod Diameter | 9.5 mm (solid steel, powder‑coated) |
| Base Construction | Stainless steel outer shell + iron core |
| Base Length | 280 mm |
| Base Width | 155 mm |
| Base Thickness | approx. 22 mm |
| Butterfly Clip Max Opening | approx. 40 mm |
| Burette Capacity | Two burettes simultaneously |
| Total Weight | approx. 1700 g |
| Application | Professional labs, wet chemistry, corrosion‑free environments |

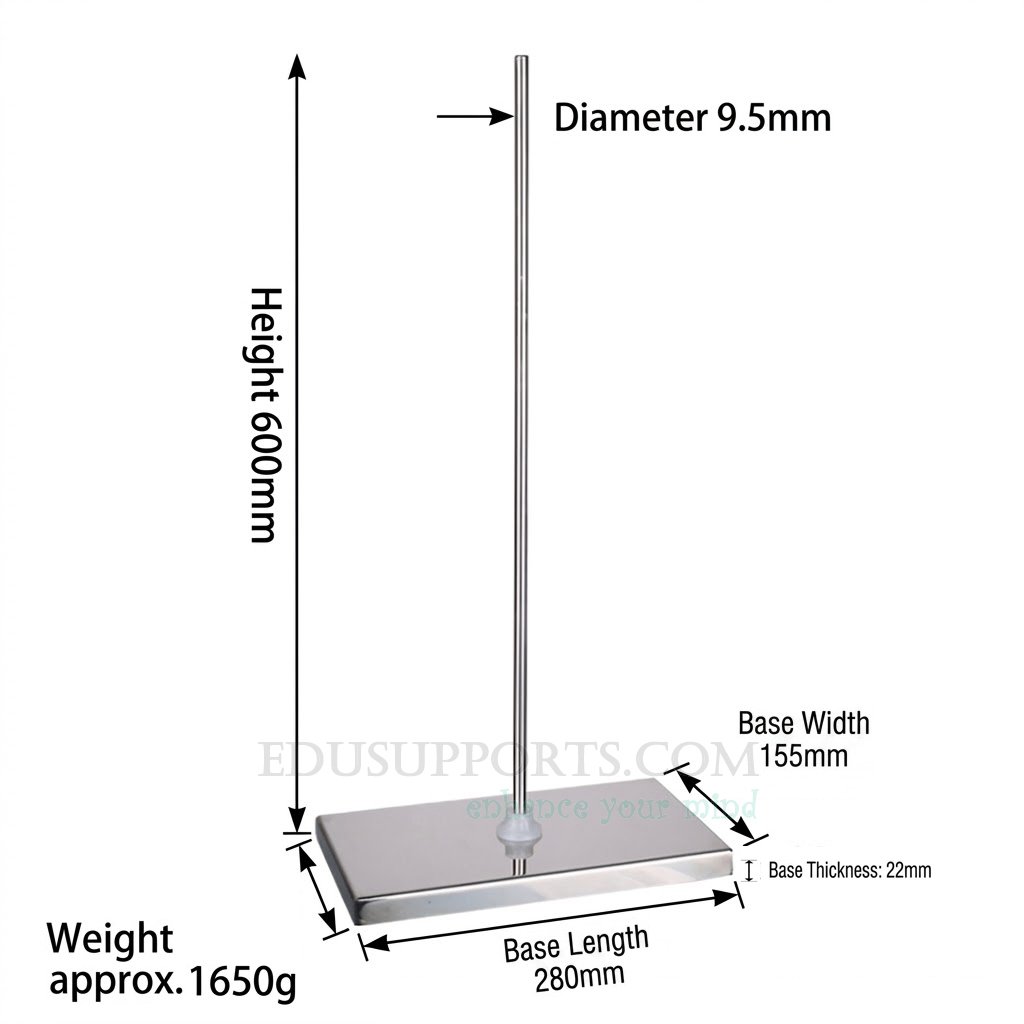

Hybrid Stainless Steel Titration Stand (Base and Rod Only, No Clip)
| Specification | Detail |
|---|---|
| SKU | 0207010170-12 |
| Butterfly Clip | Not included |
| Total Height | 600 mm (60 cm) |
| Steel Rod Diameter | 9.5 mm (solid steel, powder‑coated) |
| Base Construction | Stainless steel outer shell + iron core |
| Base Length | 280 mm |
| Base Width | 155 mm |
| Base Thickness | approx. 22 mm |
| Total Weight | approx. 1650 g |
| Application | For customers who already own burette clamps or prefer alternative clip types |
Key Features:
Base and rod only – no butterfly clip included
Perfect for labs upgrading existing equipment or standardising on a single base with multiple clip options
Maximum flexibility – use your own clamps (burette, utility, titration, etc.)
Stainless steel shell resists chemical stains, iron core provides stability
Complete base + rod assembly with mounting hardware
What‘s Included
SKU 09/10/11 (with butterfly clip):
Hybrid base (stainless steel shell + iron core, 280×155×22mm)
Solid steel rod (60cm, 9.5mm diameter)
Butterfly clip (plastic / iron / aluminum as selected)
SKU 12 (base only):
Hybrid base (stainless steel shell + iron core, 280×155×22mm)
Solid steel rod (60cm, 9.5mm diameter)
Butterfly clip NOT included
Key Applications
Acid‑Base Titration – Secures burette perfectly vertical for precise volume measurement
Burette Support – Holds one or two burettes simultaneously for comparative titration
School Chemistry Labs – Ideal for high school and university introductory courses
Filtration – Supporting filter funnels over beakers or flasks
Heating – Stainless steel shell resists heat and corrosion
General Lab Support – Can be used with other clamps as needed
Usage Instructions
Place on a level surface – Ensure the base sits flat on the lab bench.
Secure the burette – Insert the burette into the butterfly clip and tighten gently – do not overtighten.
Check vertical alignment – Ensure the burette is perfectly vertical for accurate meniscus reading.
Position the conical flask – Place the flask containing the analyte directly under the burette tip.
Adjust height as needed – Loosen the clip mounting screw, adjust, then retighten firmly.
Clean after use – Wipe the stainless steel surface with a damp cloth. For acid spills, rinse immediately with water.
Safety & Maintenance
Stainless steel surface – Resists rust, but avoid scratching with abrasive cleaners.
Clean with 75% ethanol or mild detergent – maintains appearance.
Wipe dry after each use – prevents water spots.
Inspect the butterfly clip regularly – replace if the grip weakens.
Tighten the clip mounting screw periodically – prevents the clip from sliding down the rod.
Internal iron core – Sealed within stainless steel – no maintenance required; do not attempt to disassemble the base.
Comparison Table: Plastic vs Iron vs Aluminum Butterfly Clip
| Feature | Plastic Clip (SKU 09) | Iron Clip (SKU 10) | Aluminum Clip (SKU 11) |
|---|---|---|---|
| Max Opening | ~20 mm | ~20 mm | ~20 mm |
| Total Weight | 1700 g | 1710 g | 1700 g |
| Durability | Moderate (light use) | High (heavy daily use) | High (heavy daily use) |
| Corrosion Resistance | Excellent (no rust) | Low (requires coating) | Excellent (no rust) |
| Best For | Budget, occasional use | Frequent use, maximum strength | Frequent use, rust‑proof |
| Typical Users | Home labs, infrequent use | School labs, daily titration | Research labs, professional use |
Ideal For
High school chemistry titration experiments
University introductory analytical chemistry labs
School science departments
Home chemistry labs (plastic clip recommended for safety)
Wet chemistry applications requiring acid resistance
Quality control laboratories performing routine titration
Laboratories wanting corrosion resistance without the premium cost of solid stainless steel
