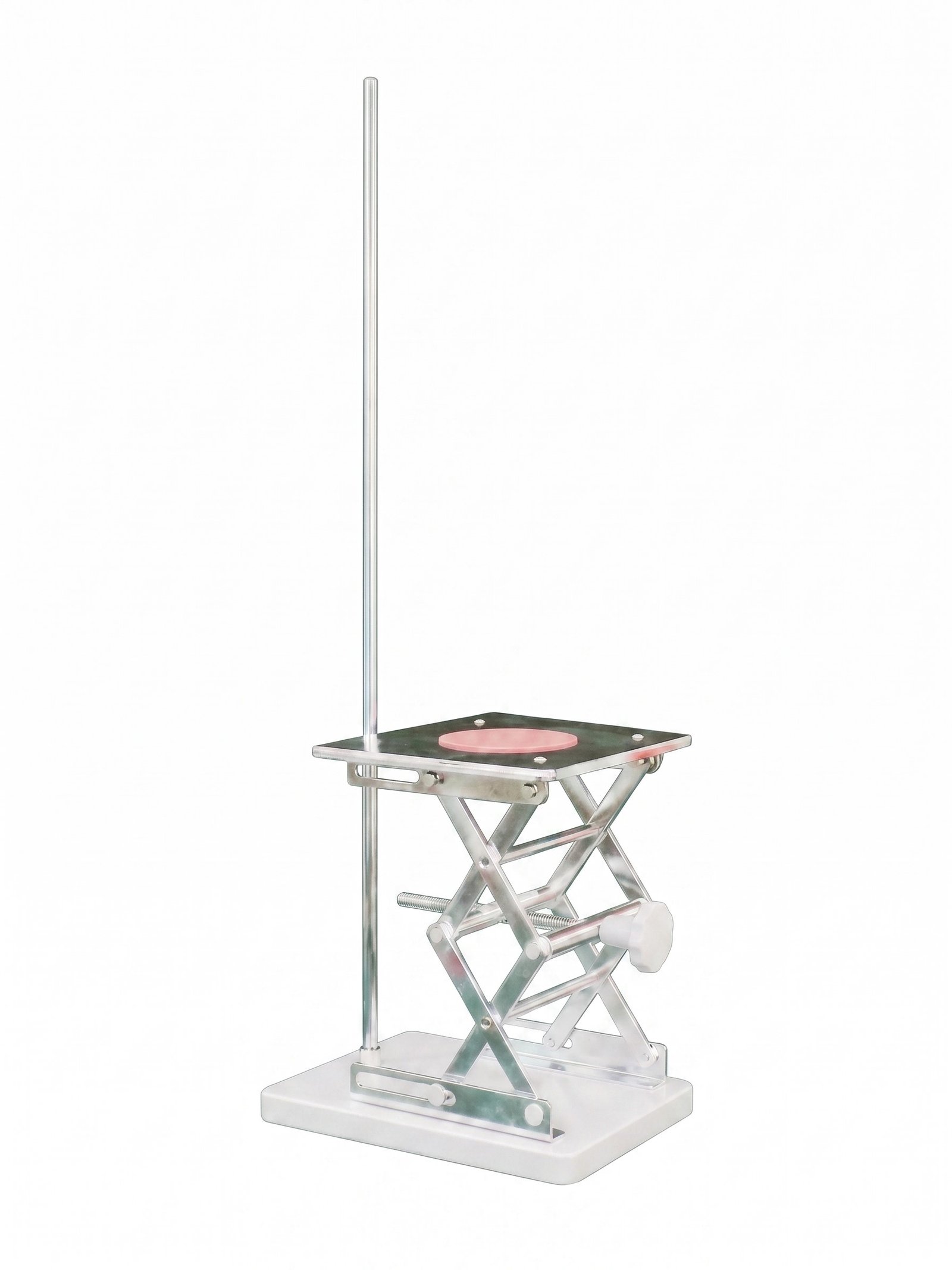

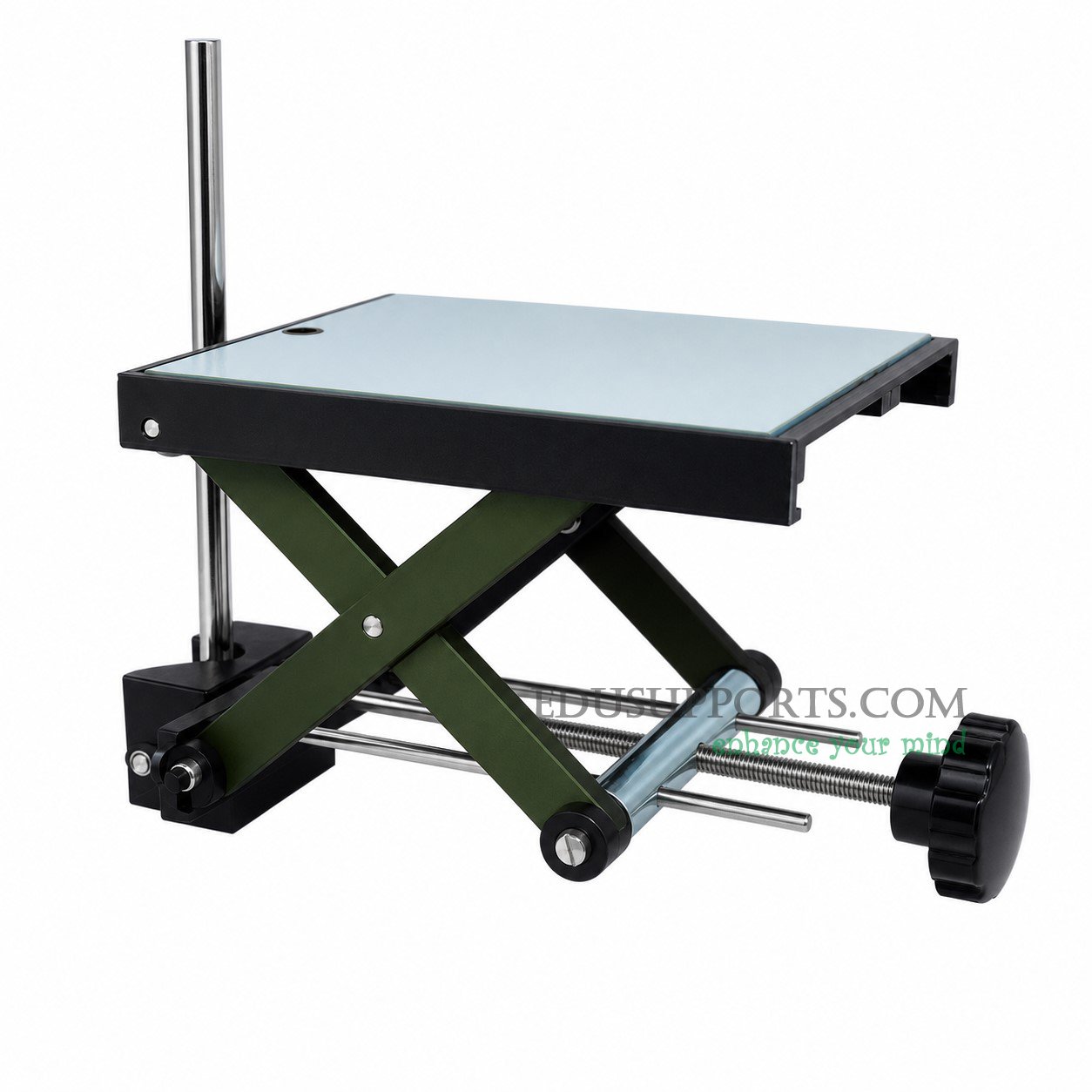

Lab Jack with Rod Support
Adjustable laboratory jack with integrated rod support for precise height control and stable equipment handling.
Product Description
The Lab Jack with Rod Support is a versatile laboratory lifting platform designed for accurate height adjustment. The scissor lift mechanism ensures smooth and stable operation using an ergonomic control knob.
The integrated vertical rod allows mounting of clamps and accessories, making it ideal for supporting flasks, beakers, hot plates, and other laboratory equipment.
Constructed from high-quality stainless steel, aluminum, or mild steel, this lab jack offers excellent durability and corrosion resistance. It supports loads up to 20kg and can be customized according to specific requirements.
Key Features
Smooth scissor lift mechanism
Supports loads up to 20kg
Integrated rod support for accessories
Corrosion-resistant materials
Customizable size and configuration
Stable and durable structure
Technical Specifications
Platform Size: 6″ × 6″ (Customizable)
Height Range: 2.75″ – 10.5″
Load Capacity: Up to 20kg
Rod Length: Customizable
Material: Stainless Steel / Mild Steel / Aluminum
Adjustment: Manual knob
Applications
Chemical laboratories
Educational institutions
Industrial research labs
Pharmaceutical testing
Material science experiments
Customization Options
We offer full customization based on your requirements, including platform size, height range, rod length, and material selection.
