Essential Laboratory Drip Rack – PP / Stainless Steel – Wall-Mounted with Detachable Pegs

Product Overview

The laboratory drip rack—also referred to as the lab drip rack, glassware drying rack, test tube drainer, or pipette drying rack—is an essential tool for every laboratory. It is designed to hold and air-dry test tubes, beakers, flasks, and other glassware after washing. Made from high-density PP (polypropylene) or 304 stainless steel, this drip rack offers excellent resistance to acids, alkalis, and corrosion. The wall-mounted design saves valuable bench space.

Whether you need a compact 27-rod rack for a student lab bench or a high-capacity 52-rod double-sided rack for a busy research facility, EduSupports has the right drip rack for your application.

Key Features

High-density PP or 304 stainless steel construction – durable, chemical-resistant, long service life
Detachable pegs (130mm length) – each peg can be removed for replacement or cleaning; easy maintenance
Sloped bottom tray – built-in angle for fast water drainage; prevents water pooling and bacteria growth
Back drainage port – water collects at the back and drains quickly; no dripping onto bench or floor
Wall-mounted design – saves bench space; mounting screws also made of corrosion-resistant PP
Two mounting options – drill-mounted (permanent, strongest hold) or drill-free (no wall damage)
Multiple sizes and configurations – single-sided or double-sided; 27 or 52 rods for PP; 25, 27, or 30 rods for stainless steel
Multiple color options (PP) – grey, black, white
Hole plugs included – unused holes can be sealed for a clean look and dust protection
Versatile applications – schools, research institutes, hospitals, industrial labs

Why Choose This Laboratory Drip Rack?

The laboratory drip rack offers several distinct advantages for glassware drying in scientific environments.

First, its superior chemical resistance makes it ideal for demanding lab environments. PP material withstands exposure to strong acids, alkalis, and organic solvents. 304 stainless steel offers additional heat resistance.

Second, the fast drainage system prevents water pooling. The bottom tray features an angled design that directs water to the rear drainage port for quick exit. No standing water means no bacteria growth.

Third, flexible installation options accommodate different lab setups. Drill-mounted provides the strongest hold for permanent installation. Drill-free uses adhesive pads or suction cups, causing no wall damage—perfect for rental laboratories or temporary setups.

Fourth, detachable pegs (130mm length) allow easy maintenance. Replace broken pegs without replacing the entire rack. Unused holes can be sealed with hole plugs for a clean appearance and dust protection.

Fifth, the space-saving wall-mounted design keeps bench surfaces clear for other lab activities. Mounting screws are also made of corrosion-resistant PP material.

Feature	PP Material	304 Stainless Steel
Acid & alkali resistance	Excellent	Very good
Heat resistance	Moderate (~120°C)	Excellent
Weight	Light	Heavy
Cost	Economical	Higher
Color options	Grey, black, white	Silver / Metallic
Best for	Routine chemical labs	High-heat or heavy-use labs

Specifications – Find Your Perfect Model

PP Material Series

SKU	Rods	Surface	Color	Mounting	Dimensions (L×H×D)

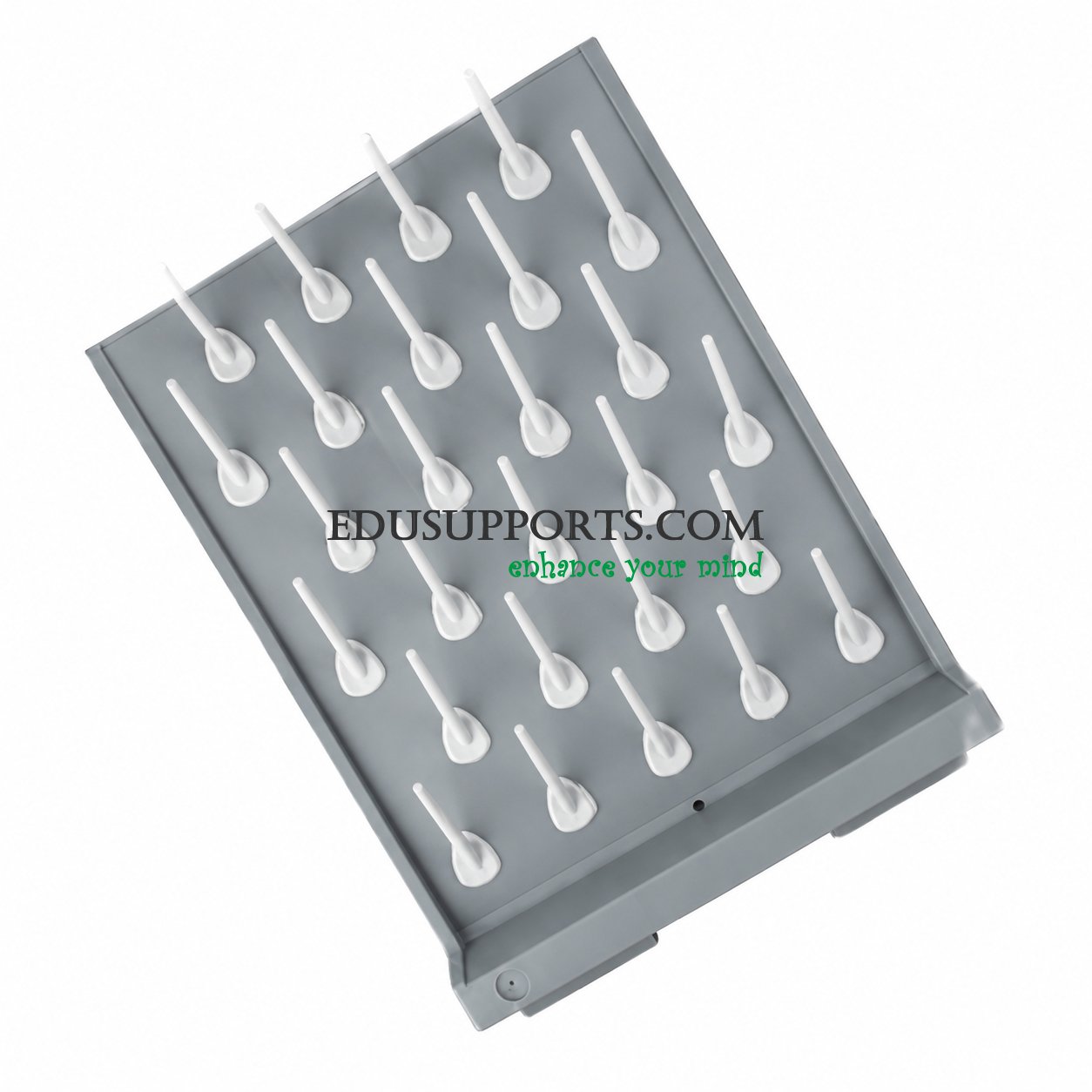

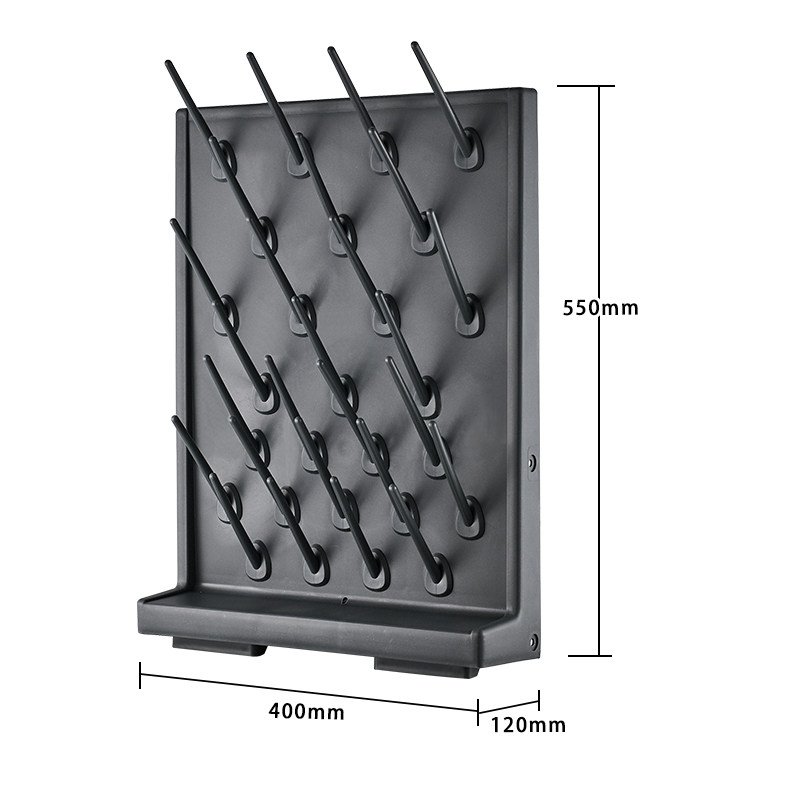

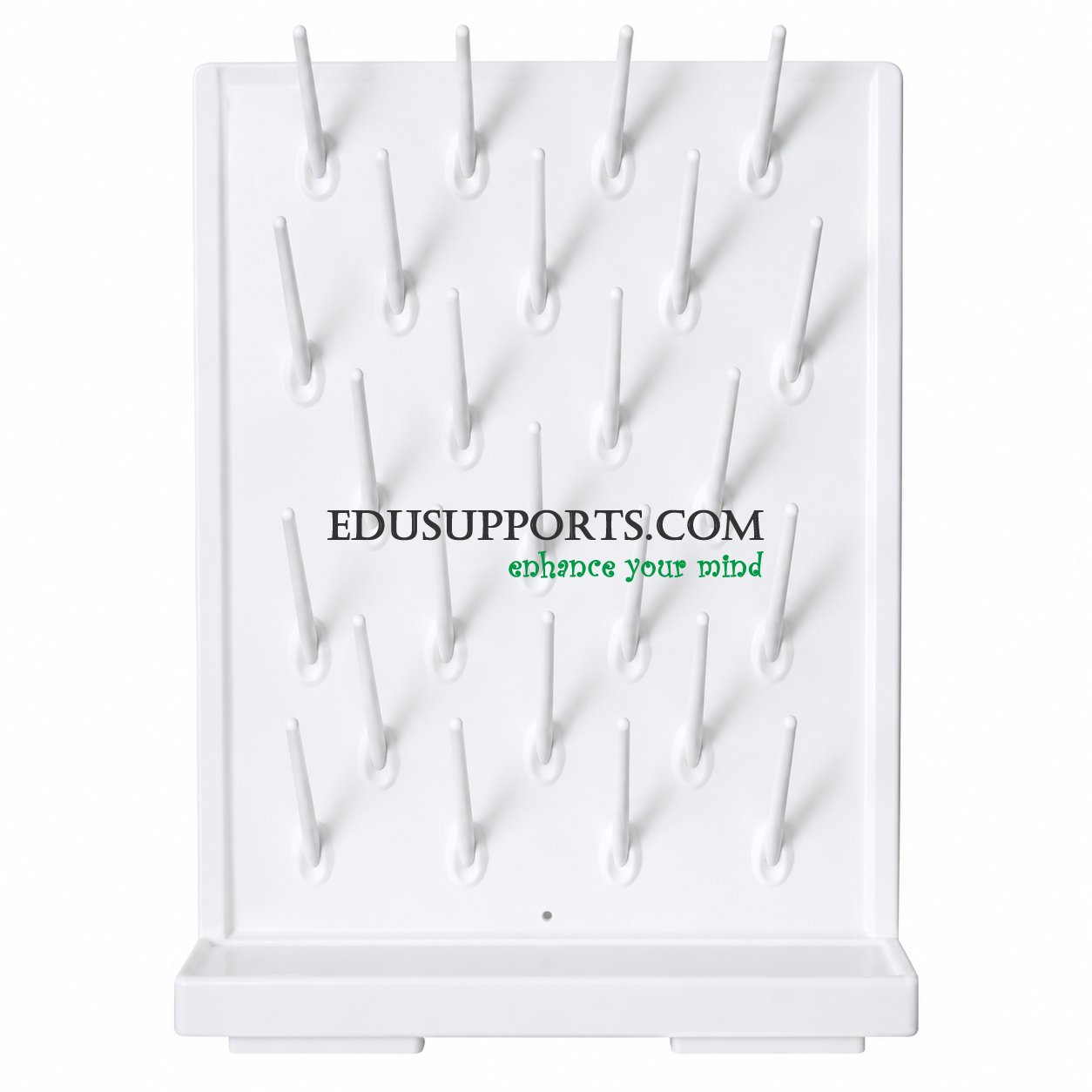

0511010001	27	Single-sided	Grey / Black / White	Drill-mounted	550 × 400 × 120 mm
0511010002	27	Single-sided	Grey / Black / White	Drill-free	550 × 400 × 120 mm

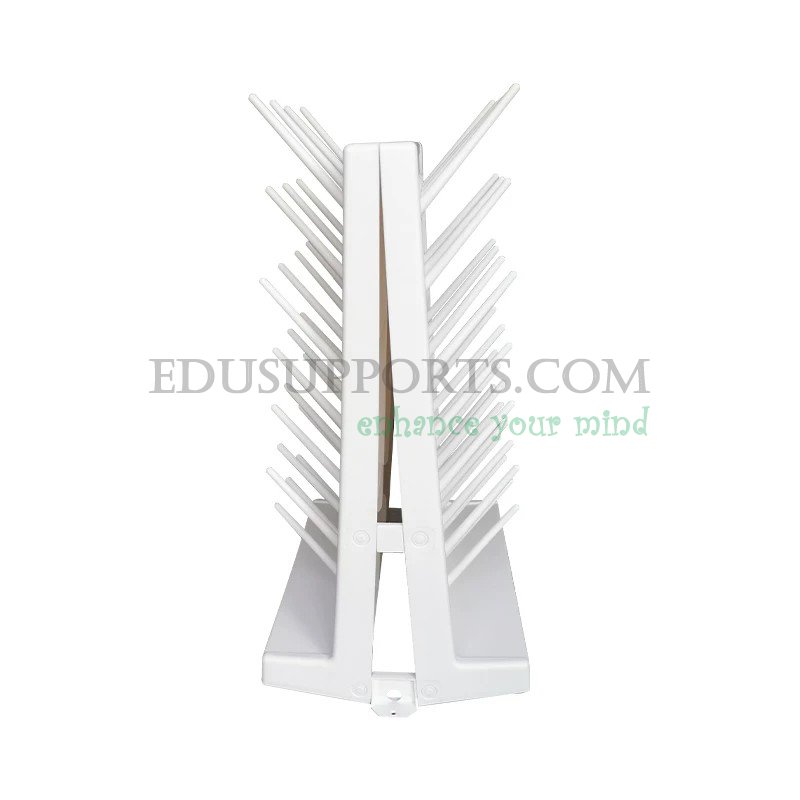

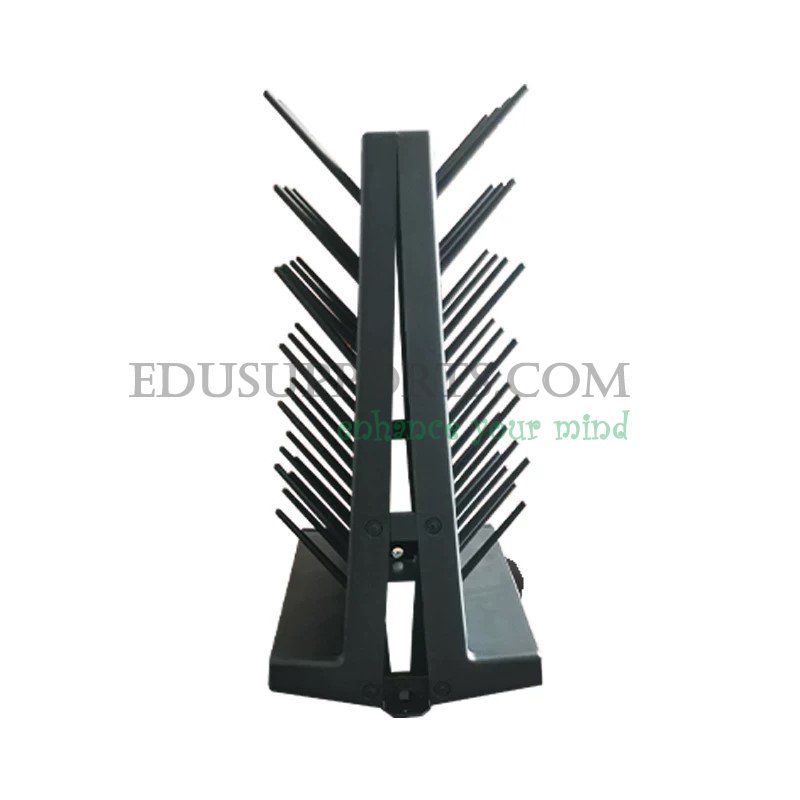

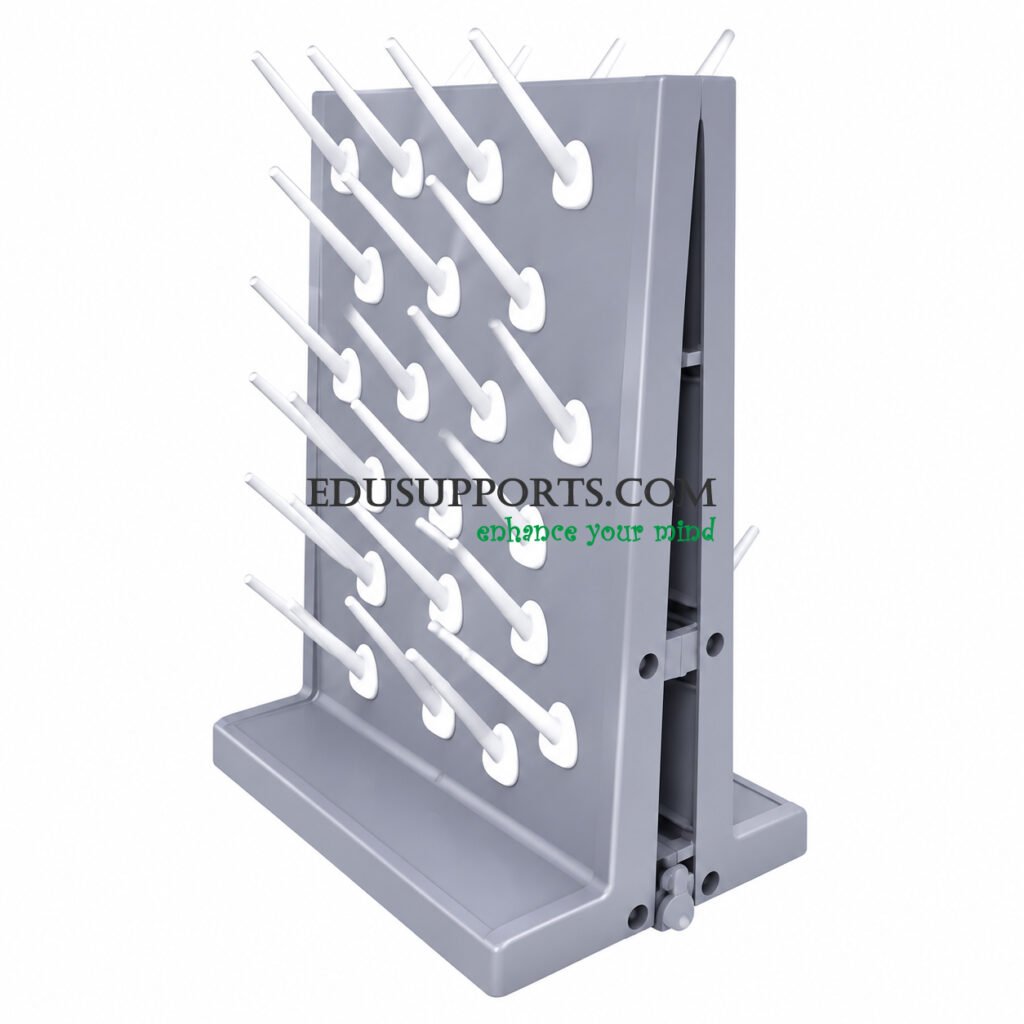

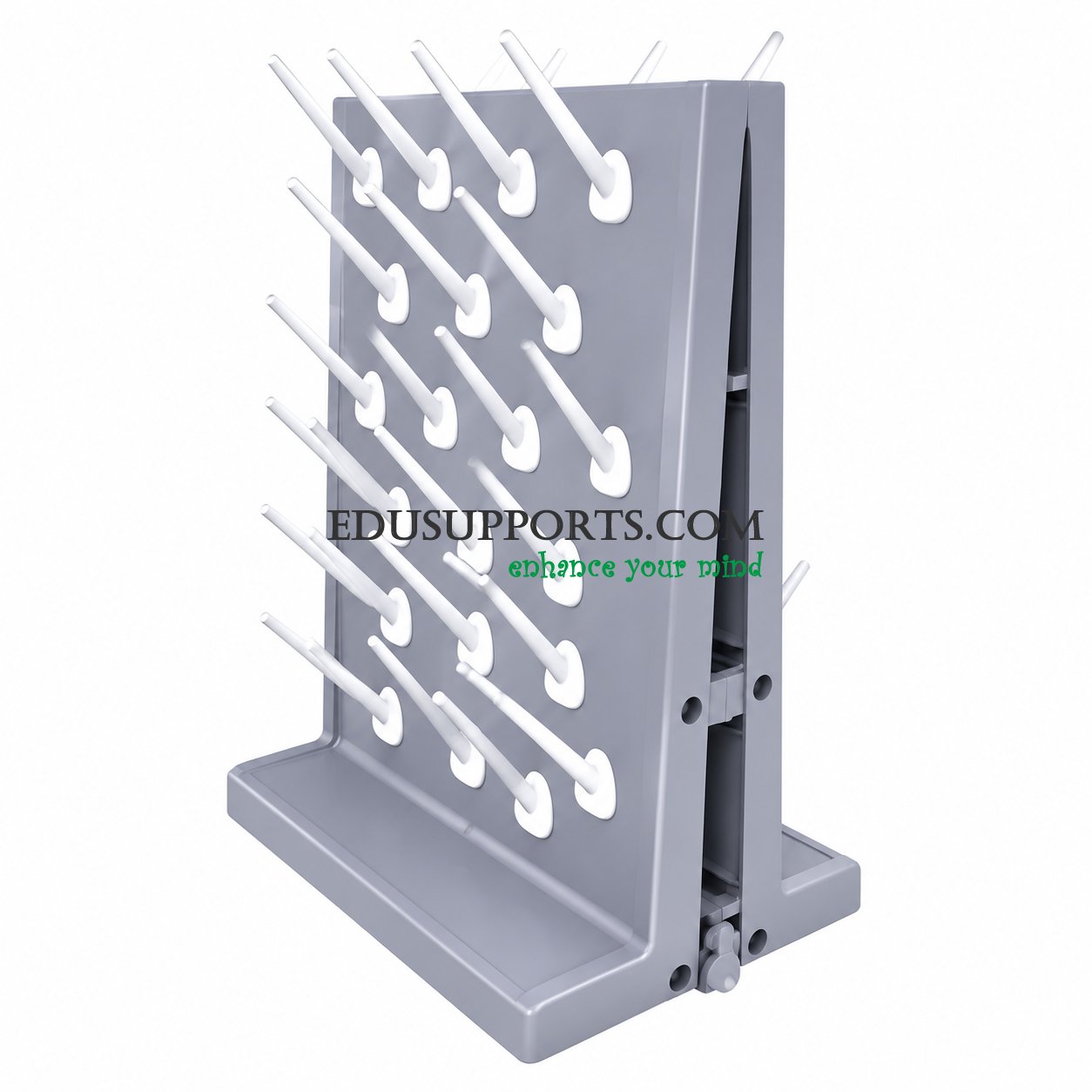

0511010003	27	Double-sided	Grey / Black / White	Drill-mounted	550 × 400 × 280 mm
0511010004	27	Double-sided	Grey / Black / White	Drill-free	550 × 400 × 280 mm

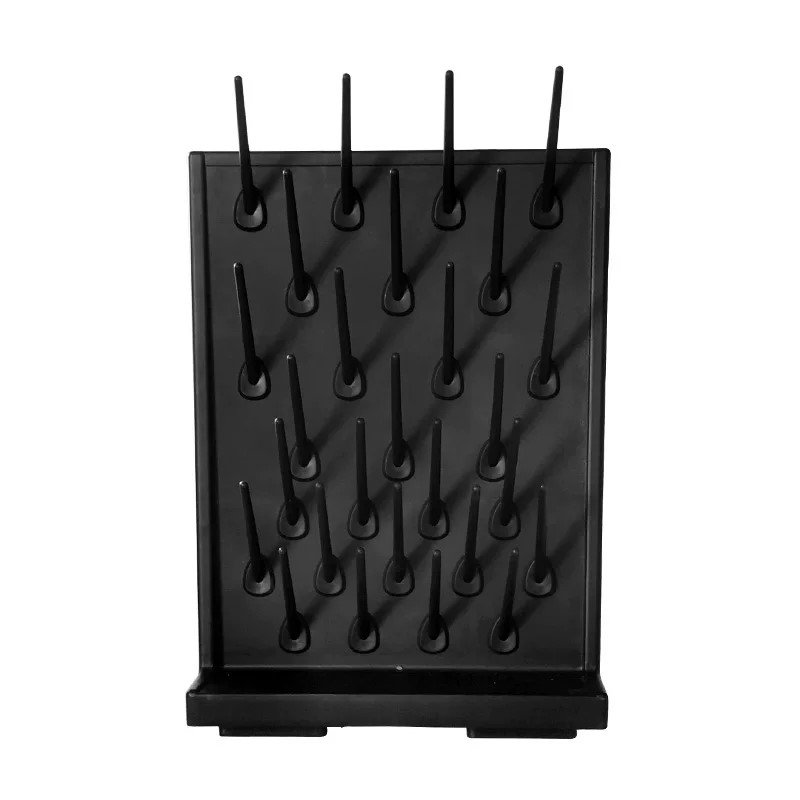

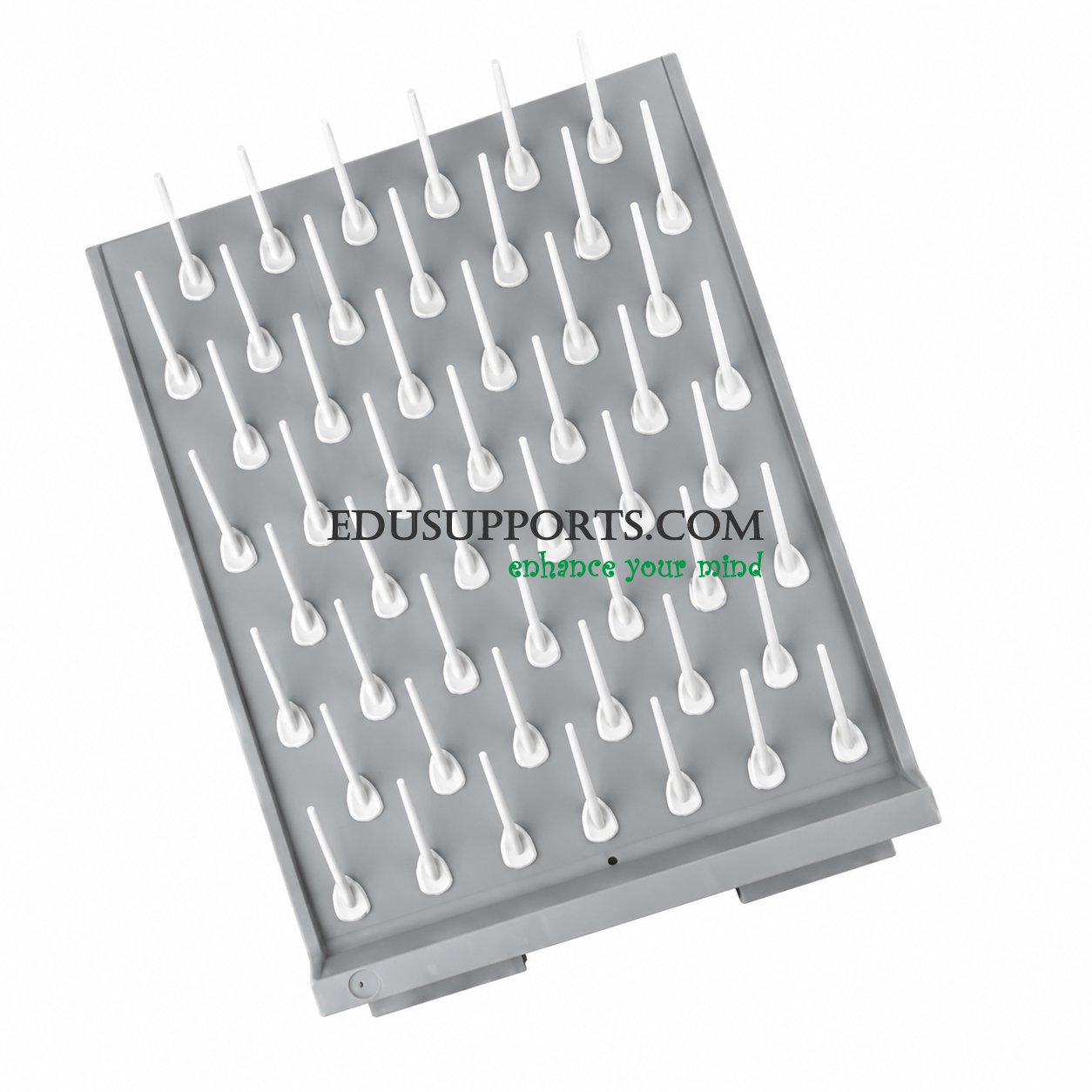

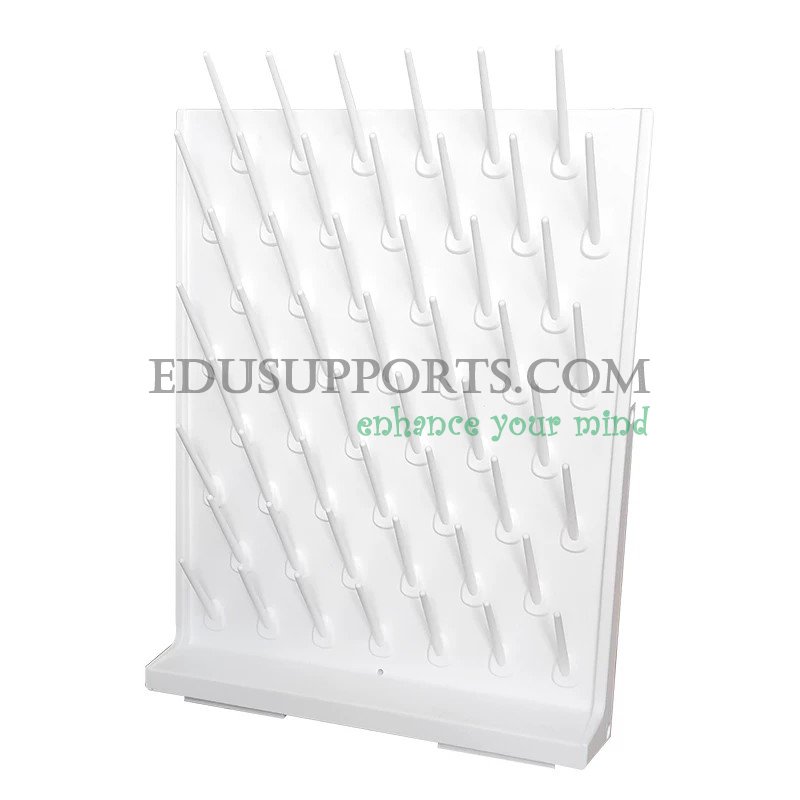

0511010005	52	Single-sided	Grey / Black / White	Drill-mounted	550 × 700 × 120 mm
0511010006	52	Single-sided	Grey / Black / White	Drill-free	550 × 700 × 120 mm

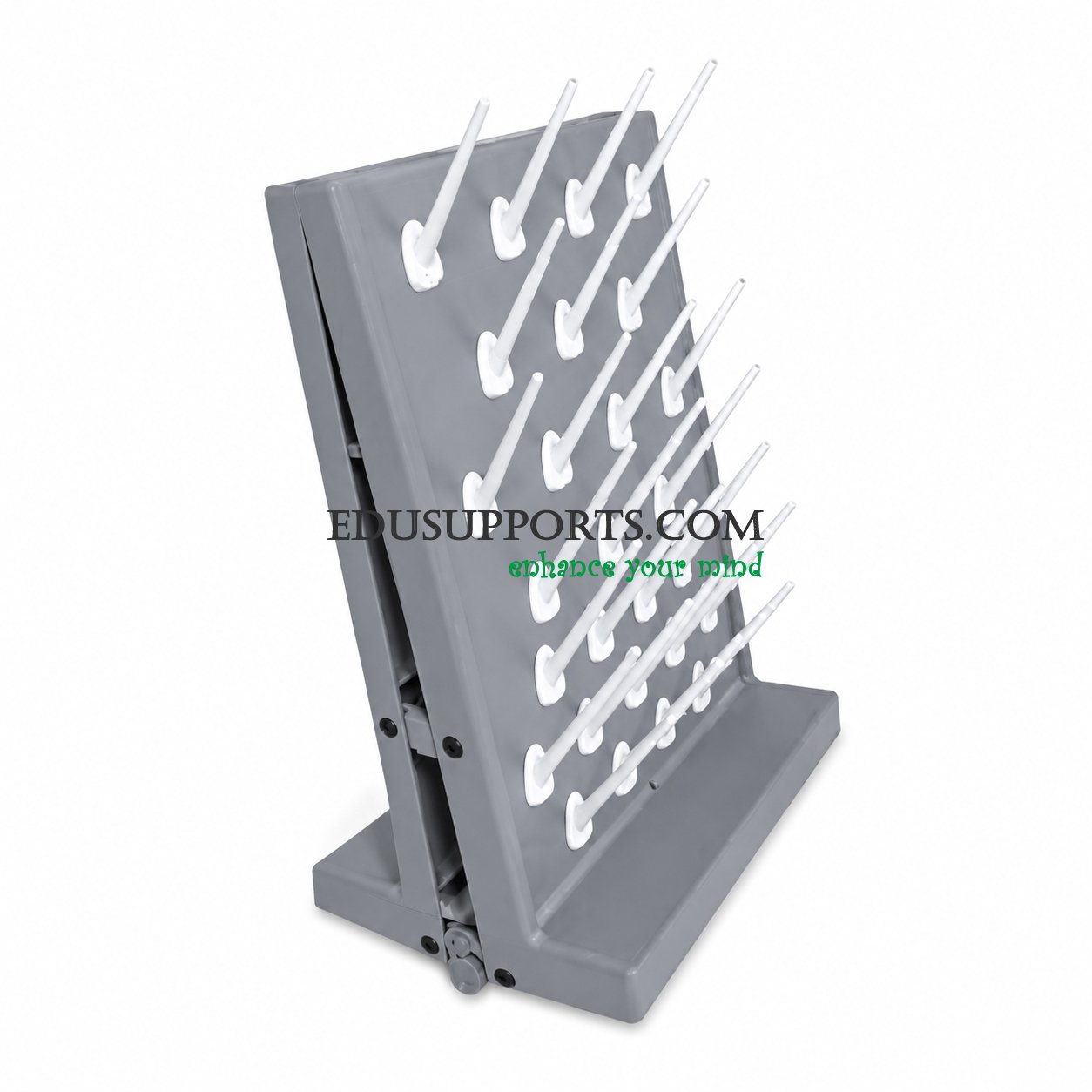

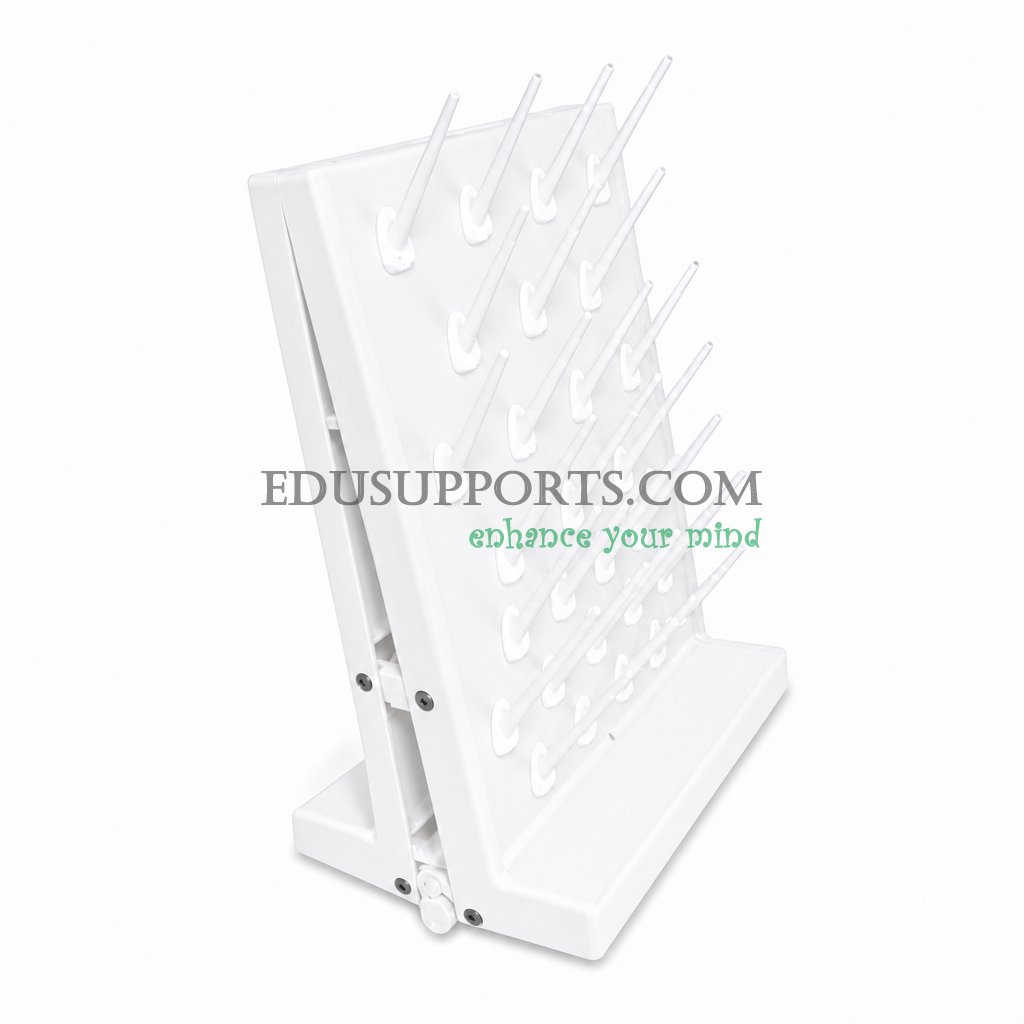

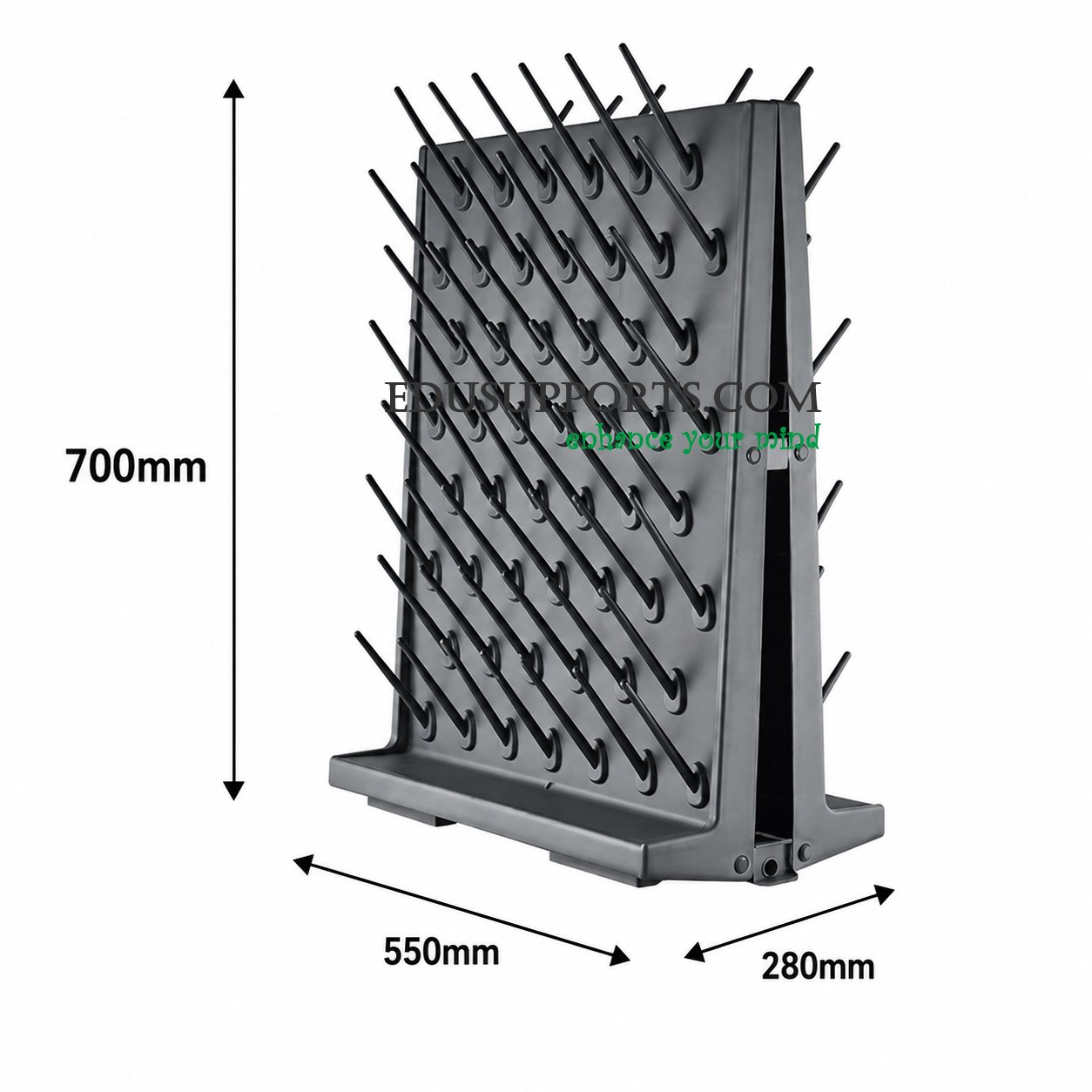

0511010007	52	Double-sided	Grey / Black / White	Drill-mounted	550 × 700 × 280 mm
0511010008	52	Double-sided	Grey / Black / White	Drill-free	550 × 700 × 280 mm

*Note: Double-sided means pegs are installed on both sides. Total peg count = rods × 2.*

304 Stainless Steel Series

SKU	Rods	Surface	Color	Mounting	Dimensions (L×H×D)
0511010013	25	Single-sided	Silver	Drill-mounted	550 × 400 × 108 mm
0511010014	25	Single-sided	Silver	Drill-free	550 × 400 × 108 mm

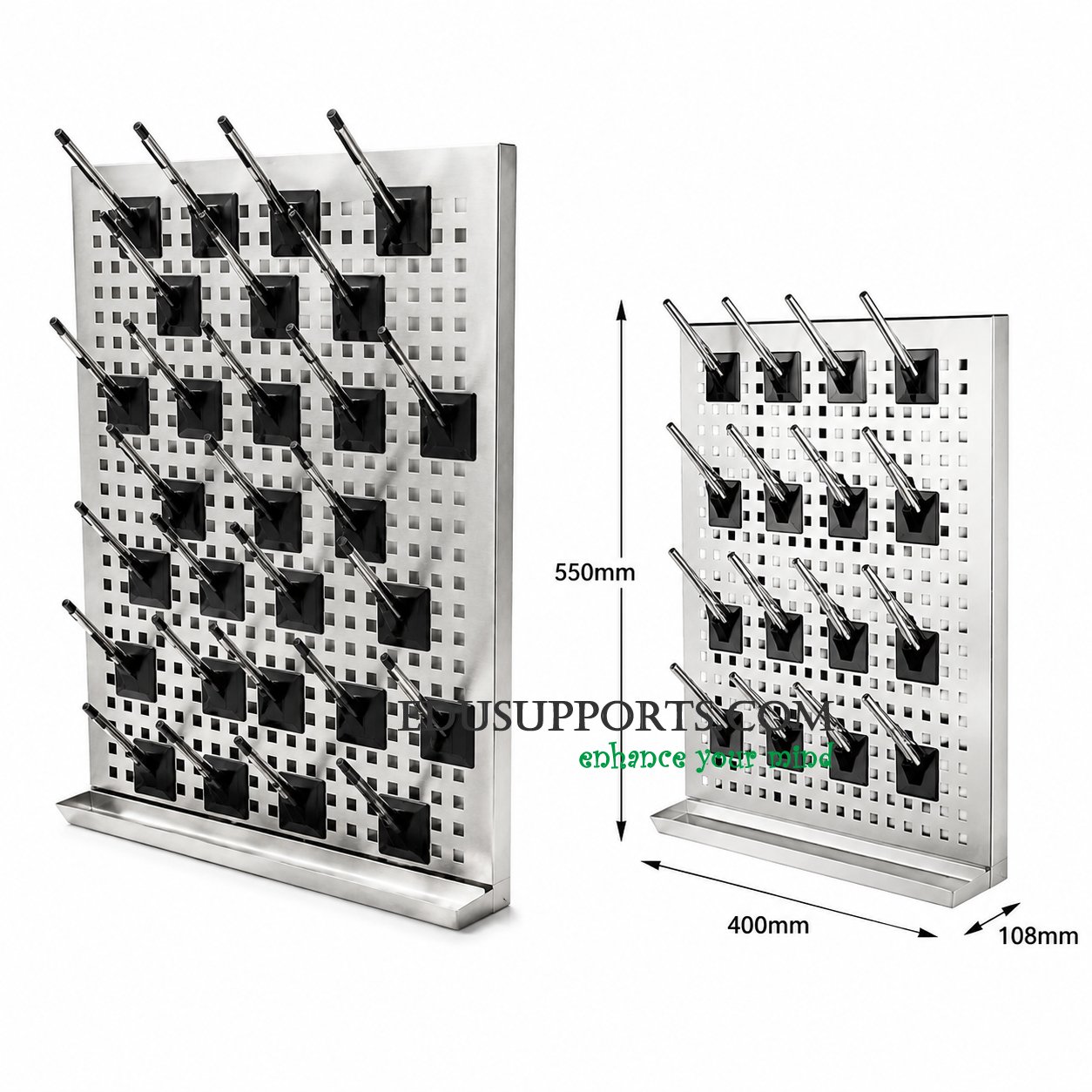

0511010015	27	Single-sided	Silver	Drill-mounted	550 × 400 × 108 mm
0511010016	27	Single-sided	Silver	Drill-free	550 × 400 × 108 mm

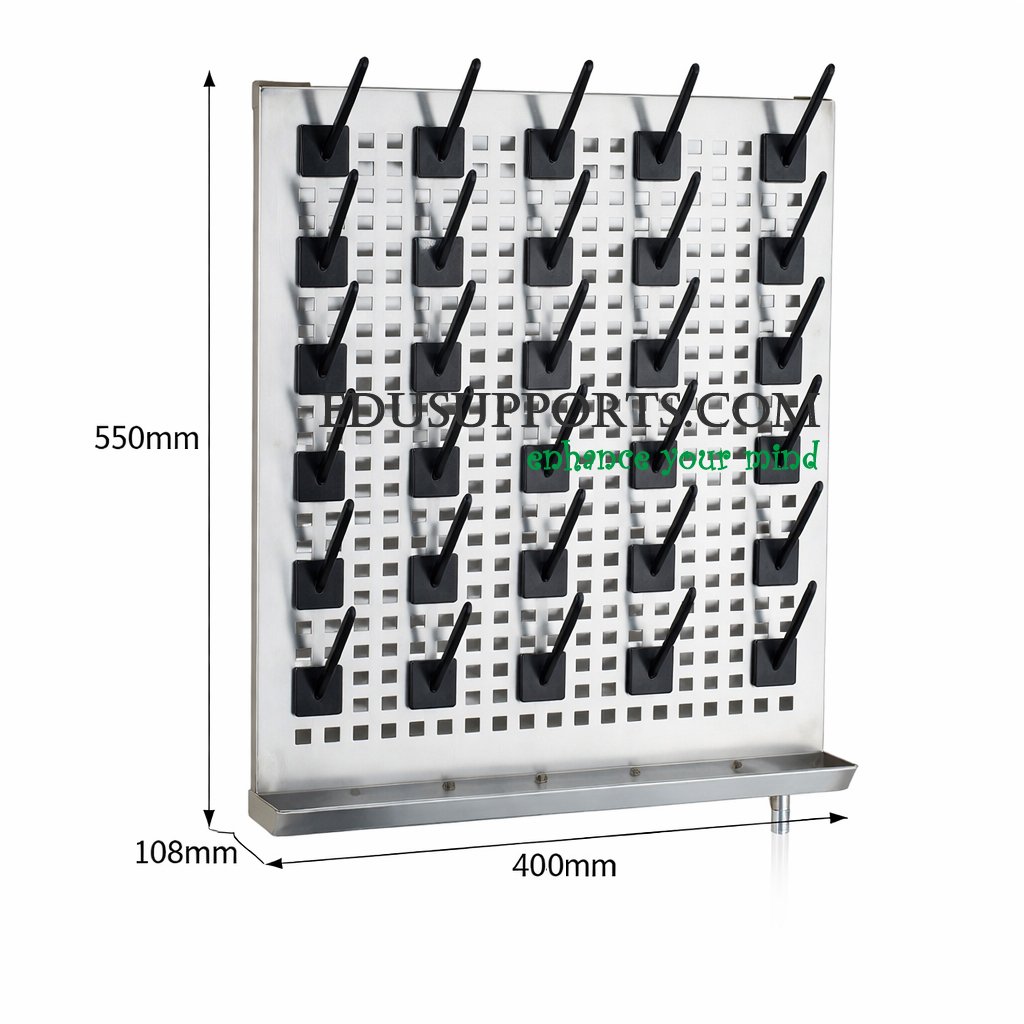

0511010017	30	Single-sided	Silver	Drill-mounted	550 × 400 × 108 mm
0511010018	30	Single-sided	Silver	Drill-free	550 × 400 × 108 mm

*Note: Stainless steel models are single-sided only. Peg length: 130mm for all models.*

Common Specifications

Specification	Detail
Product name	Laboratory Drip Rack
Material	High-density PP or 304 stainless steel
Peg length	130 mm
Colors (PP)	Grey, black, white
Color (Stainless Steel)	Silver
Drainage	Sloped bottom tray with back drainage port
Mounting type	Drill-mounted or drill-free
Application	Laboratory, research institute, school, hospital

Applications – Where to Use Lab Drip Racks

Environment	Typical Use
Schools & Universities	Student chemistry lab benches; drying test tubes and beakers after experiments
Research Institutes	High-frequency glassware drying for multiple researchers
Hospitals & Clinics	Drying medical glassware, pipettes, and sampling tools
Chemical Laboratories	Drying glassware after washing; acid/alkali exposure
Industrial QC Labs	Routine glassware drying for quality control testing

Specifically designed for: drying test tubes, beakers, flasks, pipettes, graduated cylinders, and other laboratory glassware.

How to Use – Best Practices

Installation Guidelines

Drill-mounted installation:

Mark hole positions on the wall according to the rack’s mounting holes
Drill holes and insert wall anchors (not included)
Secure the rack using screws (PP screws included for PP models)
Insert pegs into the rack

Drill-free installation:

Clean the wall surface thoroughly
Attach adhesive pads or suction cups to the back of the rack
Press firmly against the wall
Wait the recommended time (if using adhesive) before loading
Insert pegs into the rack

Daily Operation

Place washed glassware upside down onto pegs
Allow water to drip down into the bottom tray
Water drains out through the back drainage port
Ensure drainage port is directed toward a sink or collection container

Cleaning & Maintenance

Rinse with water after use to remove chemical residues
Wipe dry with a soft cloth
Do not use abrasive cleaners on stainless steel surfaces
Replace damaged pegs as needed
Unused holes can be sealed with hole plugs

Safety Precautions

Do not exceed weight capacity of the rack
Ensure rack is securely mounted before loading glassware
Use caution with heavy glassware items
Check drill-free adhesive periodically for secure attachment

Material Comparison: PP vs 304 Stainless Steel

Property	PP (Polypropylene)	304 Stainless Steel
Acid & alkali resistance	Excellent	Very good
Heat resistance	Moderate (~120°C)	Excellent
Weight	Light	Heavy
Cost	Economical	Higher
Color options	Grey, black, white	Silver
Best for	Routine chemical labs	High-heat or heavy-use labs
Peg length	130 mm	130 mm
Surface type	Single-sided or double-sided	Single-sided or double-sided

Why EduSupports?

EduSupports delivers quality laboratory accessories designed for education, healthcare, and research budgets. Our laboratory drip racks feature:

High-density PP or 304 stainless steel construction – durable, chemical-resistant
Sloped bottom tray with back drainage – prevents water pooling and keeps benches dry
Detachable pegs (130mm length) – easy replacement and maintenance
Multiple configurations – 27/52 rods for PP; 25/27/30 rods for stainless steel; single-sided or double-sided; drill-mounted or drill-free
Multiple color options (PP) – grey, black, white
Competitive pricing – professional quality at accessible prices

Each EduSupports laboratory drip rack undergoes rigorous quality testing before shipment. Trusted by schools, universities, research institutes, hospitals, and industrial laboratories worldwide.
