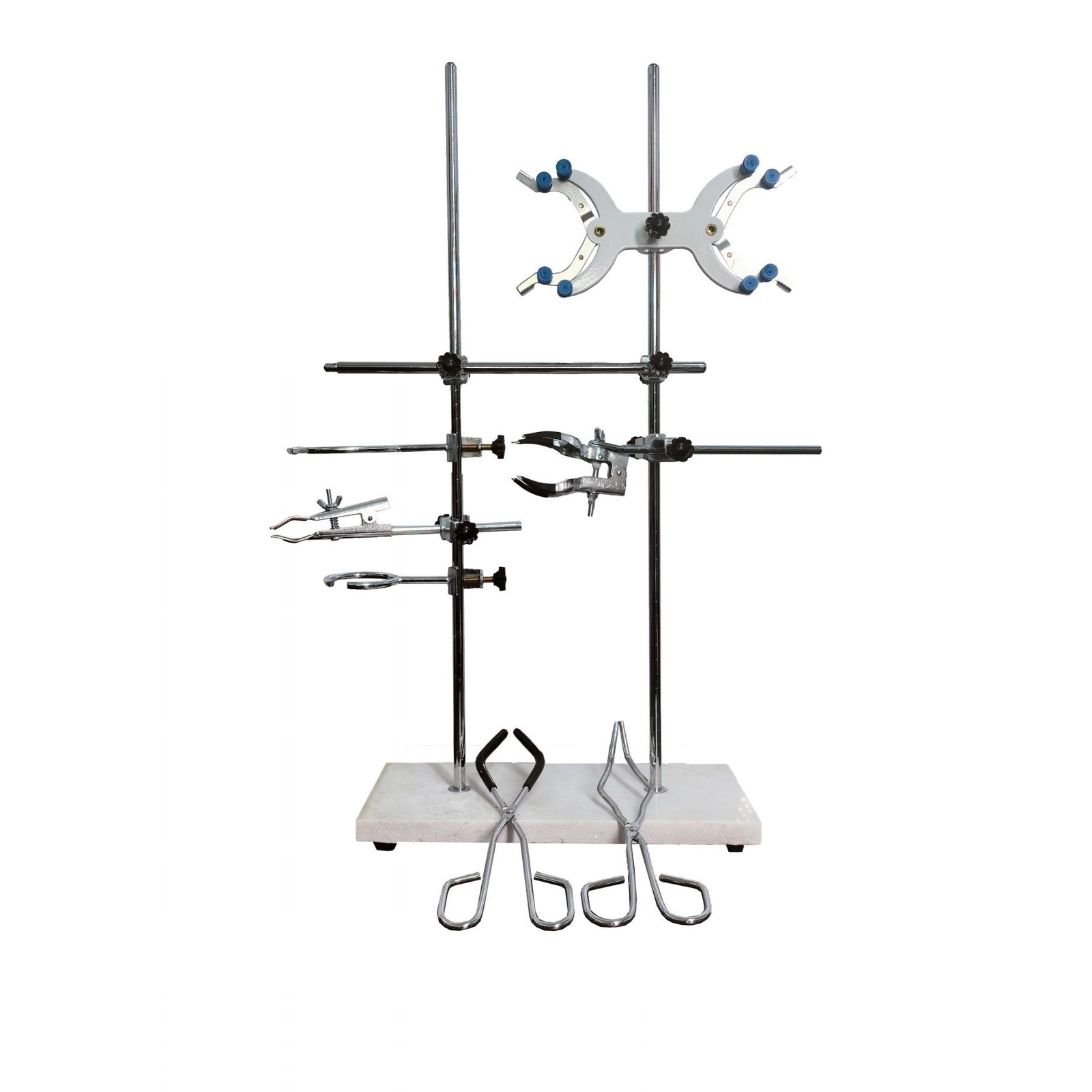

Multi-Function Lab Stand Set – Versatile Experimental Support for Physics & Chemistry
Product Overview
The Multi-Function Lab Stand Set is a teaching-oriented universal support system designed for primary school nature studies, as well as middle school physics and chemistry experiments. This Multi-Function Lab Stand Set can be assembled into vertical, parallel, inclined, clamping, fastening, and other experimental configurations, making it an essential tool for hands-on science education.
This versatile Multi-Function Lab Stand Set is detachable and reassemblable, allowing teachers and students to customize their setup based on specific experiment requirements. With a stable marble base, multiple rods, cross clamps, and a variety of holders, this Multi-Function Lab Stand Set provides a solid foundation for a wide range of laboratory tasks.
Key Features
Multi-Functional Assembly – The Multi-Function Lab Stand Set can be configured for vertical, parallel, tilted, clamping, and fastening setups
Stable Marble Base – Heavy marble base with two Φ6mm rod holes ensures stability during experiments
Detachable & Reassemblable – Easily disassemble and store this Multi-Function Lab Stand Set; reconfigure for different lab needs
Complete Accessory Set – Includes rods, cross clamps, flask clamp, beaker clamp, crucible tongs, universal clamp, titration clamp, and iron rings
Strong Practicality – Designed specifically for primary and secondary school science curricula
Compact Height – 60cm total height, suitable for classroom benchtops
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Multi-Function Lab Stand Set |
| Total Height | 60 cm |
| Rod Diameter | 9 mm (Φ9) |
| Base Type | Marble base with two Φ6mm rod holes |
| Base Dimensions | 14 cm x 28 cm (approx.) |
| Included Rods | 2 vertical rods + 1 cross rod |
| Application | Primary nature studies, middle school physics & chemistry |
Usage Examples
This Multi-Function Lab Stand Set supports multiple experimental setups:
| Configuration | Typical Use |
|---|---|
| Vertical Support | Holding a flask or test tube upright |
| Parallel Setup | Supporting multiple clamps side by side |
| Inclined / Tilted | Titration or angled tube heating |
| Clamping | Securing glassware to prevent tipping |
| Fastening | Fixing apparatus in a stable position |
| Suspending | Using iron rings to hold beakers over burners |
Product Description

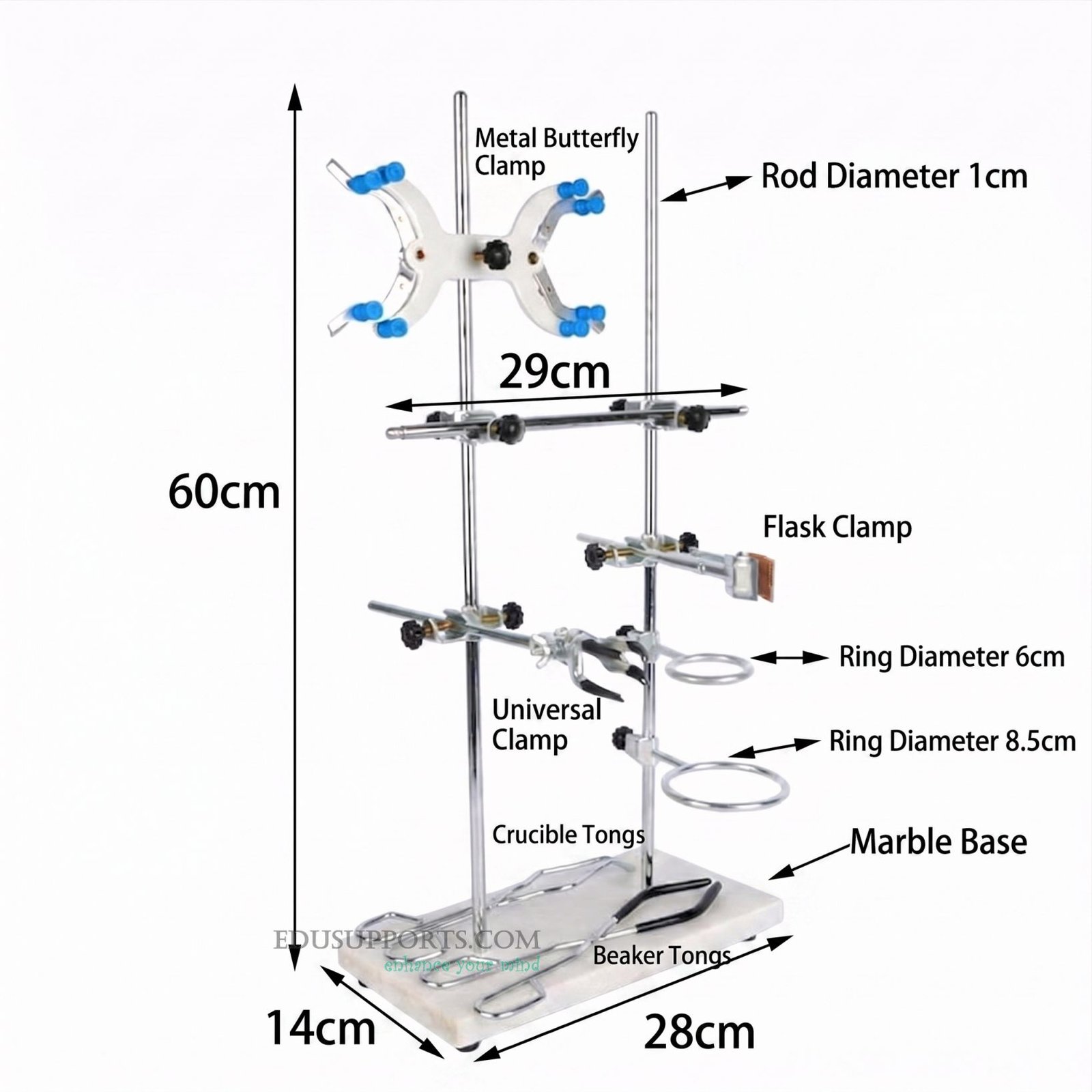

The Multi-Function Lab Stand Set is a comprehensive experimental support system for primary and secondary school science education. With a total height of 60cm and a stable marble base measuring 14cm x 28cm, this Multi-Function Lab Stand Set provides a reliable platform for a wide variety of experiments.
The base features two Φ6mm rod holes, accommodating two vertical rods (Φ9mm diameter) and one horizontal rod. Four cross clamps allow secure horizontal clamping and connection of short rods, giving the Multi-Function Lab Stand Set endless configuration possibilities.
The included clamp set covers all common glassware handling needs:
Flask clamp for test tubes and flasks
Beaker clamp for beakers
Crucible tongs for high-temperature handling
Universal clamp for versatile gripping
Titration clamp for precise titration work
Two iron rings (large and small) allow suspension of beakers above burners. The large ring has a minimum opening of 50mm. All components of this Multi-Function Lab Stand Set are detachable, making storage easy and allowing teachers to configure the stand exactly as needed.
Ideal For
Primary school nature study classes
Middle school physics experiments
Middle school chemistry labs
Science demonstration setups
Homeschool science education
Why Choose This Lab Stand Set?
Curriculum-Aligned – Designed for primary and secondary science requirements
Complete Kit – No need for additional clamps or holders
Stable & Safe – Marble base prevents tipping
Flexible – Multiple configurations for different experiments
Easy to Store – Detachable design saves space
Durable – Robust construction for classroom use
The Multi-Function Lab Stand Set is the perfect choice for teachers seeking a reliable, flexible, and complete lab support system for hands-on science education.
What's Included
| No. | Component | Quantity |
|---|---|---|
| 1 | Marble Base | 1 pc |
| 2 | Vertical Rods (Φ9mm) | 2 pcs |
| 3 | Cross Rod | 1 pc |
| 4 | Cross Clamps | 4 pcs |
| 5 | Flask Clamp | 1 pc |
| 6 | Beaker Clamp | 1 pc |
| 7 | Crucible Tongs | 1 pc |
| 8 | Universal Clamp | 1 pc |
| 9 | Titration Clamp | 1 pc |
| 10 | Large Iron Ring (min opening 50mm) | 1 pc |
| 11 | Small Iron Ring | 1 pc |
| 12 | Short Connecting Rods | 2 pcs |
Note: Custom configurations are available upon request. The component list above is the standard set. We can adjust quantities, add, or remove components based on your specific laboratory or teaching needs.
