Glass Base Titration Stand – Plastic Butterfly Clamp, 60cm height, 9.5mm steel rod, glass base 280x150mm, weight 1730g, max Clamp opening 30mm
Glass Base Titration Stand – Base and Rod Only , 60cm height, 9.5mm steel rod, glass base 280x150mm, weight approx 1650g

Premium Glass Base Titration Stand – 60cm Height with Butterfly Clamp

Glass Base Titration Stand 60cm Series. Glass‑surface base (280×150mm), 9.5mm solid steel rod. Four SKUs: 0207010170-05 (plastic clip, 1730g, 20mm opening), -06 (iron clip, 1750g, 20mm), -07 (aluminum clip, 1750g, 20mm), -08 (base only, ~1650g). Acid‑resistant, easy‑clean, perfect for titration. Ideal for school and university chemistry labs.

Category: Tag:
Guaranteed Safe Checkout

Glass Base Titration Stand – 60cm Height with Butterfly Clamp (Plastic / Iron / Aluminum)

Product Overview

The Glass Base Titration Stand is a high‑performance laboratory support system designed specifically for titration experiments where chemical resistance and easy cleaning are top priorities. Unlike traditional painted steel bases, the glass‑surface base offers excellent resistance to acids, alkalis, and organic solvents. Its smooth, non‑porous surface allows for effortless cleaning and does not absorb stains from spilled reagents.

This series includes four configurations based on the butterfly clip (burette clamp) material – plastic, iron, or aluminum – plus a base‑only option for customers who already own compatible clamps. All models share the same 60cm height, 9.5mm diameter solid steel rod, and glass‑surface base (280×150mm), ensuring consistent performance across the range.

Below you will find each SKU presented separately, complete with specifications and product images.

Common Specifications

ParameterValue
Total Height600 mm (60 cm)
Steel Rod Diameter9.5 mm (solid steel, powder‑coated)
Base Surface MaterialGlass (smooth, chemical‑resistant surface)
Base Dimensions (L × W)280 × 150 mm
Base Thicknessapprox. 12 mm
Butterfly Clip Max Opening (when included)approx. 30 mm
Burette Capacity (when clip included)Two burettes simultaneously
ApplicationAcid‑base titration, burette support, filtration, heating
NoteManual measurement may result in slight dimensional tolerances

Glass Base Titration Stand with Plastic Butterfly Clamp

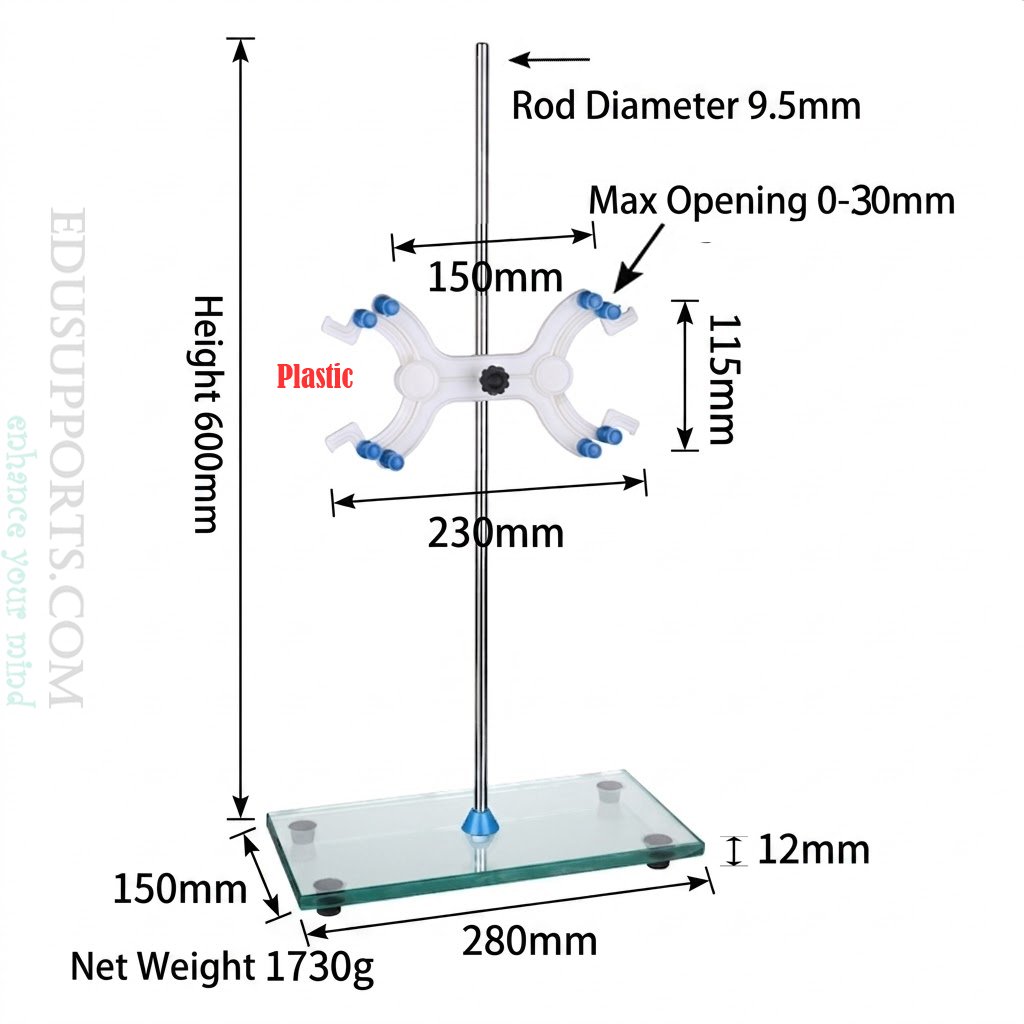

Glass Base Titration Stand – Plastic Butterfly Clamp, 60cm height, 9.5mm steel rod, glass base 280x150mm, weight 1730g, max Clamp opening 30mm

Key Features:

  • Plastic butterfly clip with 20mm opening – fits standard burettes

  • Lightweight and corrosion‑resistant (no rust)

  • Affordable option for budget‑conscious schools and occasional use

  • Complete kit: glass‑surface base, steel rod, and plastic butterfly clip

  • Glass base is easy to clean and resistant to chemical stains

SpecificationDetail
SKU0207010170-05
Butterfly Clip MaterialPlastic
Total Height600 mm (60 cm)
Steel Rod Diameter9.5 mm (solid steel, powder‑coated)
Base Surface MaterialGlass
Base Length280 mm
Base Width150 mm
Base Thicknessapprox. 12 mm
Butterfly Clip Max Openingapprox. 30 mm
Burette CapacityTwo burettes simultaneously
Total Weightapprox. 1730 g
ApplicationAcid‑base titration, school labs, general burette support

Glass Base Titration Stand with Iron Butterfly Clamp

SpecificationDetail
SKU0207010170-06
Butterfly Clip MaterialIron
Total Height600 mm (60 cm)
Steel Rod Diameter9.5 mm (solid steel, powder‑coated)
Base Surface MaterialGlass
Base Length280 mm
Base Width150 mm
Base Thicknessapprox. 12 mm
Butterfly Clip Max Openingapprox. 30 mm
Burette CapacityTwo burettes simultaneously
Total Weightapprox. 1750 g
ApplicationHeavy‑duty daily titration, university labs
Glass Base Titration Stand – Iron Butterfly Clamp.with iron butterfly Clamp, 60cm height, 9.5mm steel rod, glass base 280x150mm, weight 1750g, max Clamp opening 30mm

Key Features:

  • Heavy‑duty iron butterfly clip for maximum durability and grip strength

  • Ideal for busy school labs and daily high‑frequency use

  • Glass base provides chemical resistance while iron clip offers strength

  • Complete kit: glass‑surface base, steel rod, and iron butterfly clip

Glass Base Titration Stand with Aluminum Butterfly Clamp

Glass Base Titration Stand – Aluminum Butterfly Clamp for Labs

  • Rust‑proof aluminum butterfly clip – perfect for wet chemistry and fume hoods

  • Lightweight yet strong, offering the best balance of corrosion resistance and durability

  • Glass base complements the non‑corrosive clip for complete chemical resistance

  • Complete kit: glass‑surface base, steel rod, and aluminum butterfly clip

SpecificationDetail
SKU0207010170-07
Butterfly Clip MaterialAluminum
Total Height600 mm (60 cm)
Steel Rod Diameter9.5 mm (solid steel, powder‑coated)
Base Surface MaterialGlass
Base Length280 mm
Base Width150 mm
Base Thicknessapprox. 12 mm
Butterfly Clip Max Openingapprox. 40 mm
Burette CapacityTwo burettes simultaneously
Total Weightapprox. 1750 g
ApplicationProfessional labs, wet chemistry, corrosion‑free environments

Glass Base Titration Stand (Base and Rod Only, No Clamp)

SpecificationDetail
SKU0207010170-08
Butterfly ClipNot included
Total Height600 mm (60 cm)
Steel Rod Diameter9.5 mm (solid steel, powder‑coated)
Base Surface MaterialGlass
Base Length280 mm
Base Width150 mm
Base Thicknessapprox. 12 mm
Total Weightapprox. 1650 g
ApplicationFor customers who already own burette clamps or prefer alternative clip types

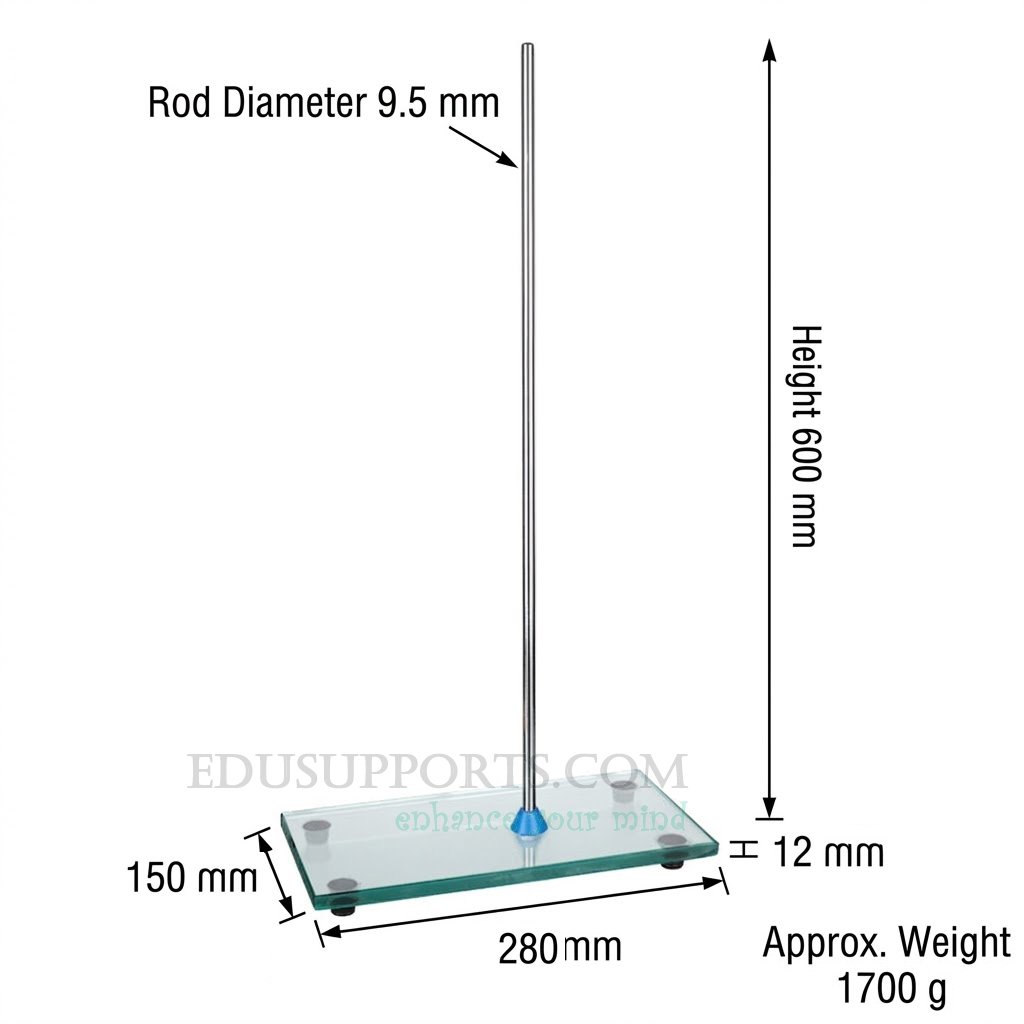

Glass Base Titration Stand – Base and Rod Only , 60cm height, 9.5mm steel rod, glass base 280x150mm, weight approx 1650g

Key Features:

  • Base and rod only – no butterfly clip included

  • Perfect for labs upgrading existing equipment or standardising on a single base with multiple clip options

  • Maximum flexibility – use your own clamps (burette, utility, titration, etc.)

  • Glass base resists chemical stains and is easy to wipe clean

  • Complete base + rod assembly with mounting hardware

What‘s Included

SKU 05/06/07 (with butterfly clamp):

  • Glass‑surface base (280×150mm, approx. 12mm thick)

  • Solid steel rod (60cm, 9.5mm diameter)

  • Butterfly clip (plastic / iron / aluminum as selected)

SKU 08 (base only):

  • Glass‑surface base (280×150mm, approx. 12mm thick)

  • Solid steel rod (60cm, 9.5mm diameter)

  • Butterfly clip NOT included

Key Applications

  • Acid‑Base Titration – Secures burette perfectly vertical for precise volume measurement

  • Burette Support – Holds one or two burettes simultaneously for comparative titration

  • School Chemistry Labs – Ideal for high school and university introductory courses

  • Filtration – Supporting filter funnels over beakers or flasks

  • Heating – Glass surface resists heat from alcohol burners and hot plates

  • General Lab Support – Can be used with other clamps as needed

Usage Instructions

  1. Place on a level surface – Ensure the glass base sits flat on the lab bench.

  2. Handle with care – While made of tempered glass, avoid dropping or striking the base against hard surfaces.

  3. Secure the burette – Insert the burette into the butterfly clip and tighten gently – do not overtighten.

  4. Check vertical alignment – Ensure the burette is perfectly vertical for accurate meniscus reading.

  5. Position the conical flask – Place the flask containing the analyte directly under the burette tip.

  6. Adjust height as needed – Loosen the clip mounting screw, adjust, then retighten firmly.

  7. Clean after use – Wipe the glass base with a damp cloth. For acid spills, rinse immediately with water. The smooth glass surface does not absorb stains.

Safety & Maintenance

  1. Do not drop or strike the glass base – tempered glass is strong but can chip or crack under impact.

  2. Clean with 75% ethanol or mild detergent – avoid highly abrasive cleaners that could scratch the glass.

  3. Wipe dry after each use – while glass is water‑resistant, drying prevents water spots.

  4. Inspect the butterfly clip regularly – replace if the grip weakens.

  5. Tighten the clip mounting screw periodically to prevent the clip from sliding down the rod.

  6. Avoid extreme thermal shock – do not place a very hot apparatus directly onto a cold glass base.

Comparison Table: Plastic vs Iron vs Aluminum Butterfly Clip

FeaturePlastic Clip (SKU 05)Iron Clip (SKU 06)Aluminum Clip (SKU 07)
Max Opening~20 mm~20 mm~20 mm
Total Weight1730 g1750 g1750 g
DurabilityModerate (light use)High (heavy daily use)High (heavy daily use)
Corrosion ResistanceExcellent (no rust)Low (requires coating)Excellent (no rust)
Best ForBudget, occasional useFrequent use, maximum strengthFrequent use, rust‑proof
Typical UsersHome labs, infrequent useSchool labs, daily titrationResearch labs, professional use

Ideal For

  • High school chemistry titration experiments

  • University introductory analytical chemistry labs

  • School science departments

  • Home chemistry labs (plastic clip recommended for safety)

  • Wet chemistry applications requiring acid resistance

  • Quality control laboratories performing routine titration

  • Labs where visibility of colour change from below is beneficial
